Low-Reverse Servo Assembly

A4LD

LOW-REVERSE SERVO

Removal

1. Raise the vehicle on a hoist.
2. Place a drain pan under the transmission fluid pan. Starting at the rear of the pan and working toward the front, loosen the attaching bolts and allow the fluid to drain. Remove all of the pan attaching bolts except two at the front to allow the fluid to further drain. Finally remove all of the bolts and remove the pan.
3. Remove the oil filter screen and gasket.






4. Remove the retaining screws and remove the low-reverse servo cover, piston, spring and gasket.

Installation

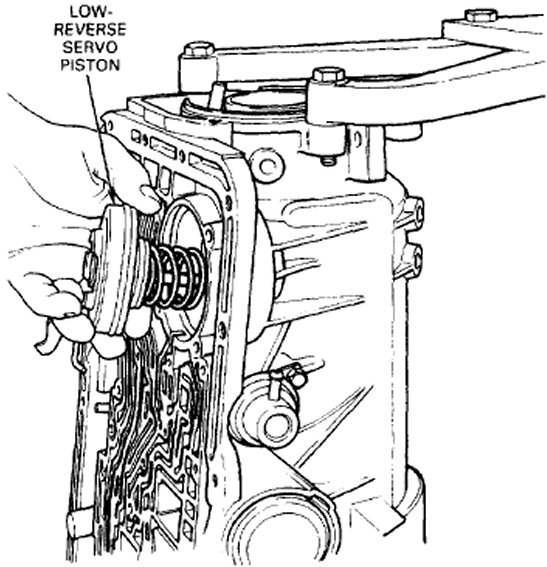

1. Install the low-reverse servo piston and spring in the servo housing.
2. Install the servo cover and the gasket.
3. Clean and replace the filter screen and gasket.
4. Position the transmission fluid pan and a new gasket and install the retaining screws in two steps.
5. Refill the transmission with the proper grade and quantity of fluid. Pour in three quarts of fluid; then run the engine and add fluid as required.
6. Operate the vehicle and check for leaks.
