Blower Motor: Service and Repair

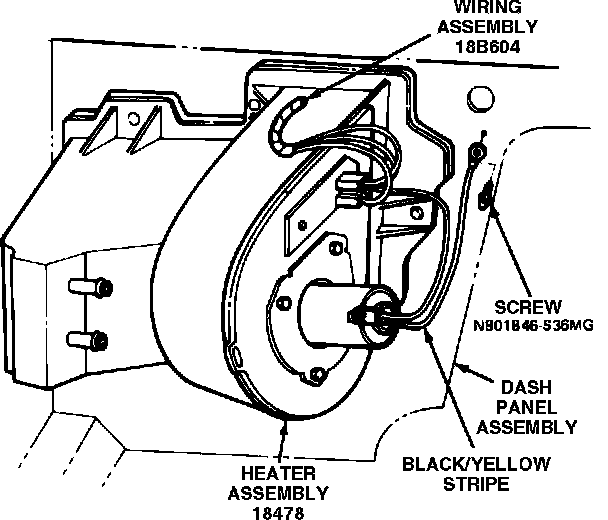

Fig. 25 Blower motor removal:

Less Air Conditioning
1. Disconnect blower motor electrical leads and blower motor ground wire, Fig. 25.
2. Remove blower motor assembly retaining screws and remove blower motor.
3. Reverse procedure to install.

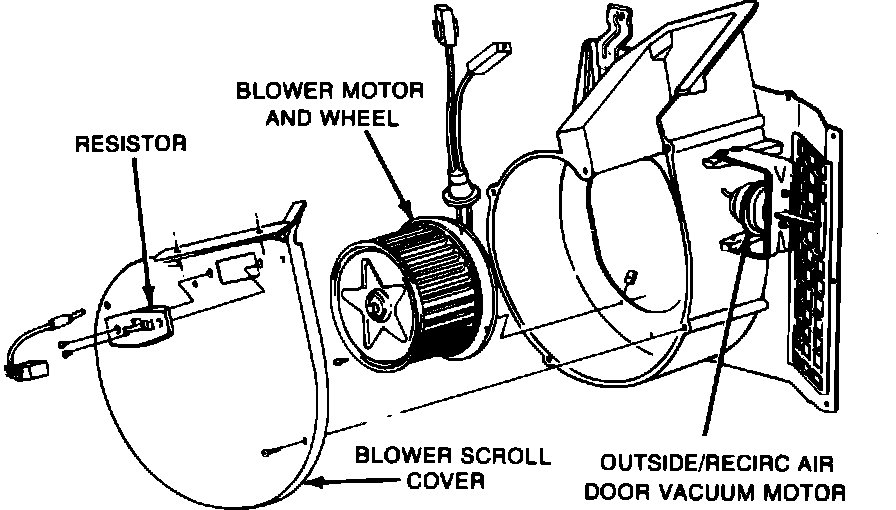

Fig. 26 Blower motor removal:

With Air Conditioning
1. Disconnect battery ground cable.
2. Disconnect electrical leads from resistor, Fig. 26.
3. Remove blower scroll cover.
4. Push wiring grommet forward out of hole in blower motor housing.
5. Remove four blower mounting plate retaining screws and remove blower motor.
6. Reverse procedure to install.
