Power and Ground Distribution
>>
Diode
>>
Locations

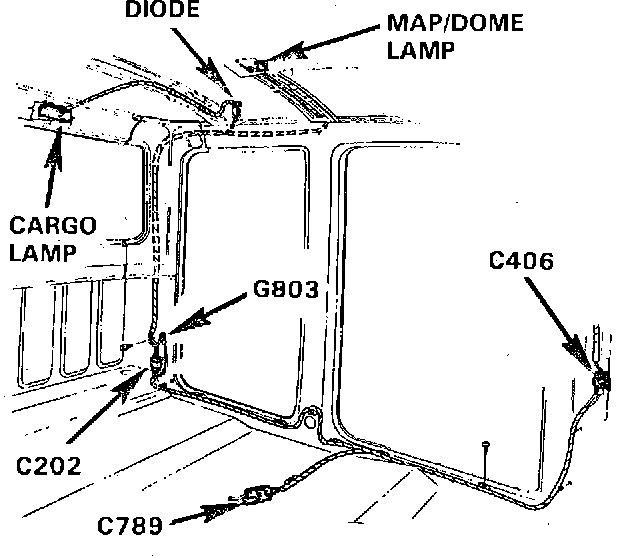

Diode: Locations
LH Quarter Panel Area (F150-350):
Above LH Quarter Window
