F 250 2WD Pickup V8-6.9L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Glow Plug Relay
>>
Locations

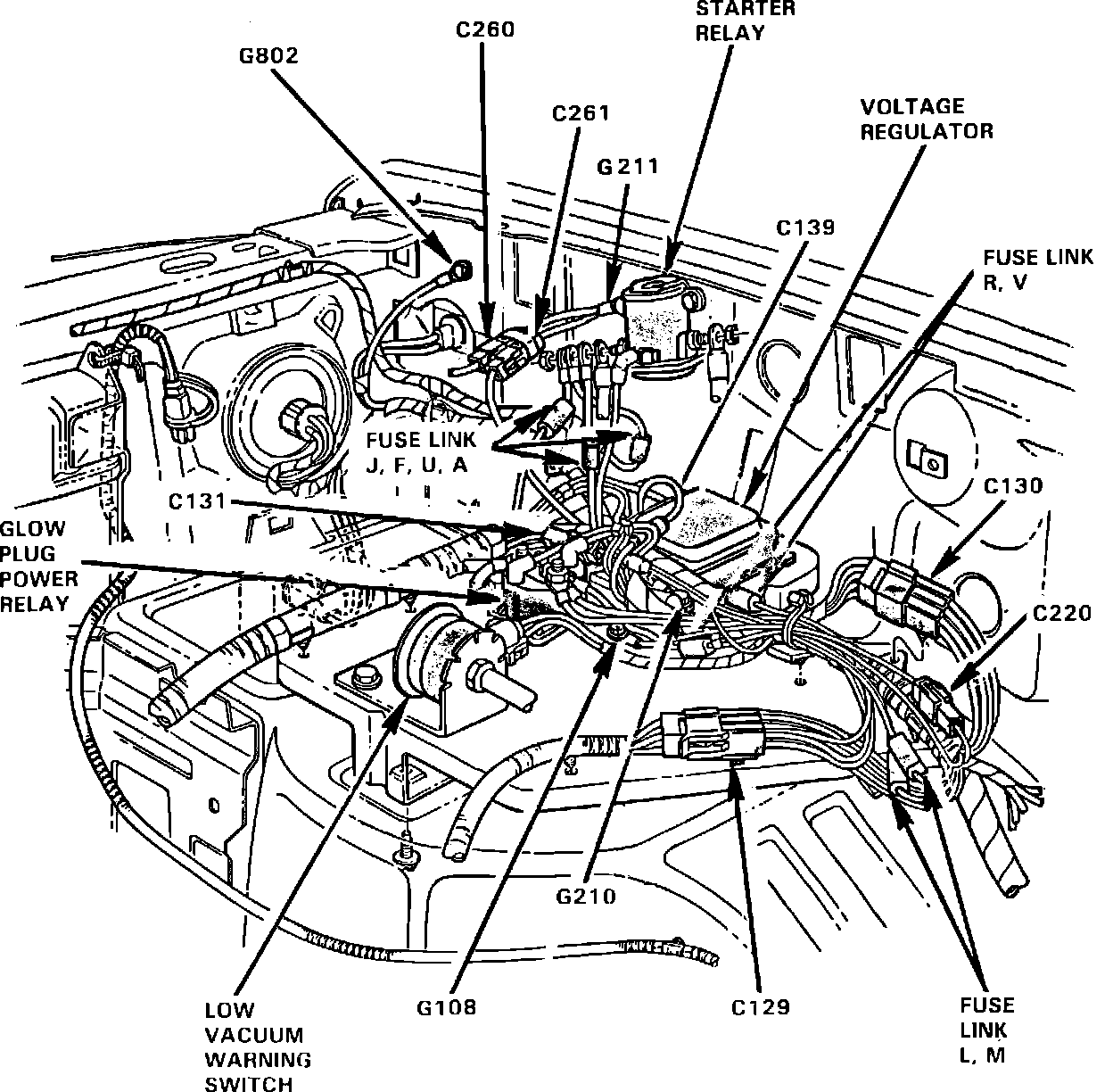

Glow Plug Relay: Locations
RH Fender Apron & Dash Panel.:
RH Fender Apron
Applicable to: Diesel Engine
