Convertible Top Wiring Schematic - Manual Correction
Article No. 86-24-11WIRING SCHEMATIC - SHOP MANUAL/ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM) CORRECTION
FORD 1987 MUSTANG
The wiring circuitry information for the 1987 Mustang convertible top is incorrect as published in the EVTM and Shop Manual. The convertible top will ONLY operate with the ignition switch in the "Run" position. The following information should be added to the appropriate manual.
Electrical and Vacuum Troubleshooting Manual
Page 89:
^ Revise wording on the schematic from "HOT IN ACC. OR RUN", to "HOT IN RUN".
Page 90:
^ Revise wording from "WITH THE IGNITION SWITCH IN ACC. OR RUN" to "WITH THE IGNITION SWITCH IN RUN".

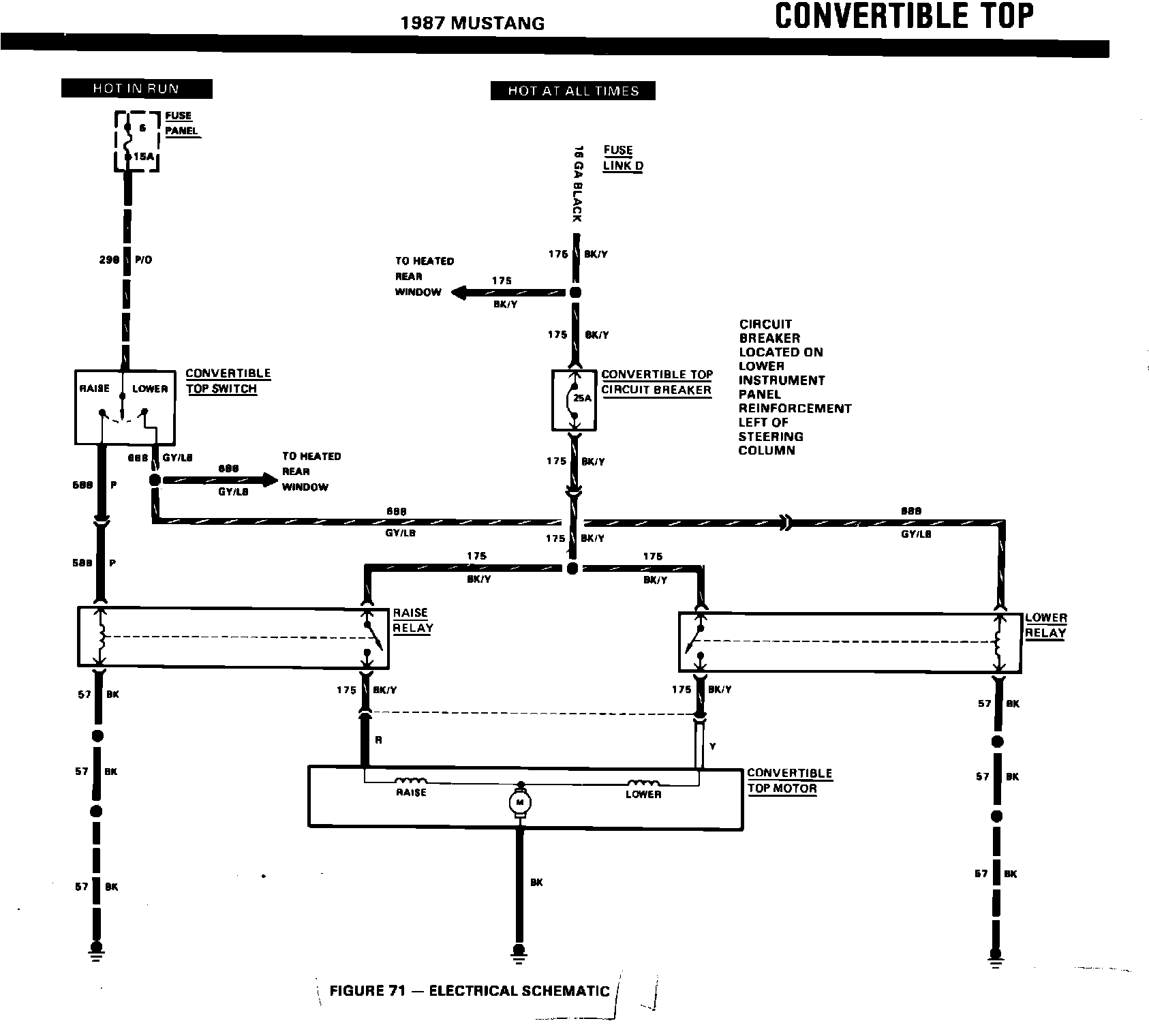

FIGURE 71 - ELECTRICAL SCHEMATIC:
Shop Manual
Page 47-07-24 (Figure 71):
^ The electrical schematic on page 29 of this TSB replaces the schematic shown in Figure 71.
Page 47-07-25, -26, -27:
^ (Diagnostic Chart) - Revise wording in "Test Steps" A5, A7, A8, and A13, from "WITH IGNITION SWITCH IN RUN OR ACC. POSITION", to "WITH IGNITION SWITCH IN RUN POSITION".
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
