Power Window Relay
>>
2 Door & 3 Door Models
2 Door & 3 Door Models

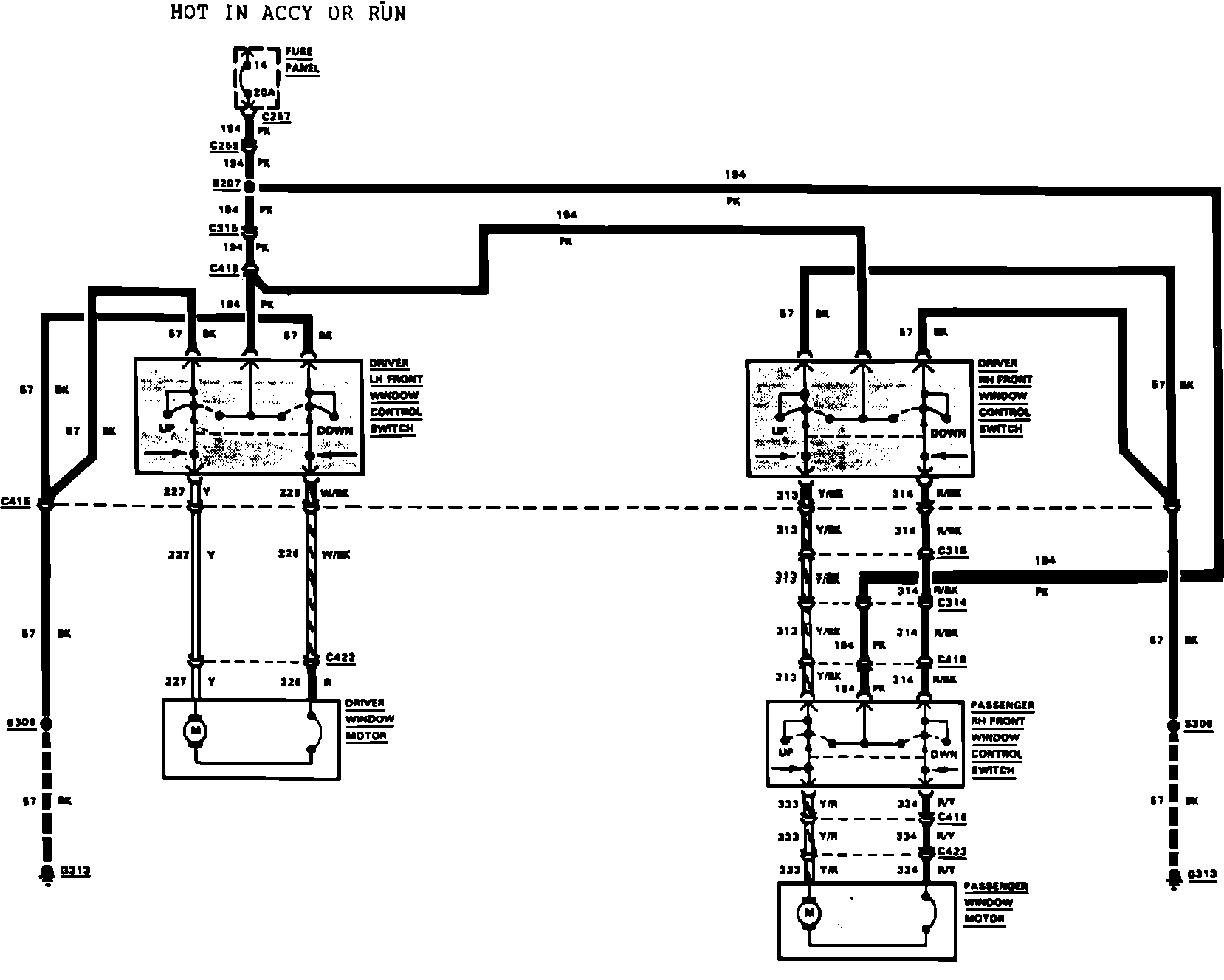

Fig. 27 Power Window Wiring Circuit. 2-Door & 3-Door:
