Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1987
>>
Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes
>>
Quick Tests
>>
2.0 - Equipment Hook-Up
2.0 - Equipment Hook-Up

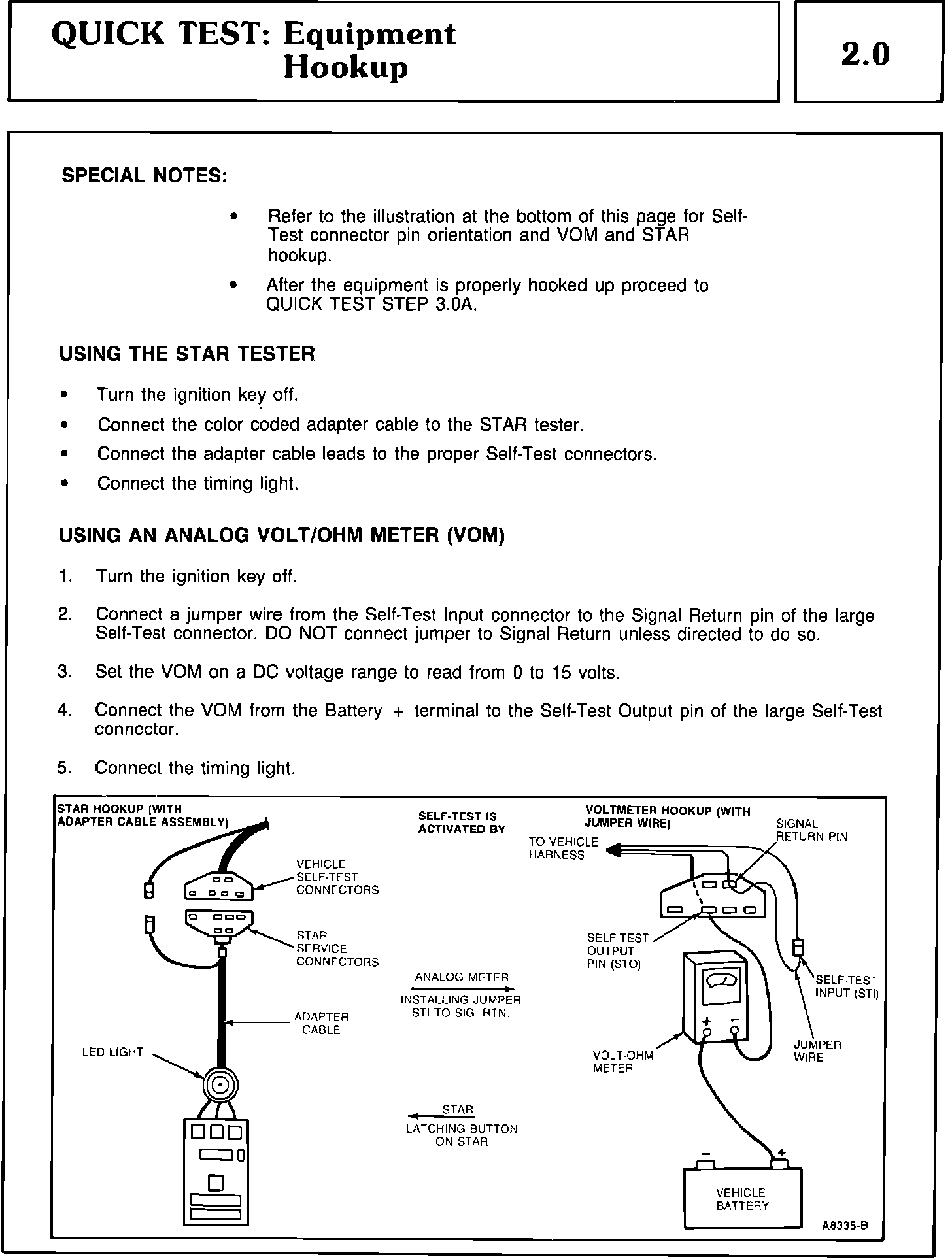

Quick Test 2.0 - Equipment Hookup:
