Recall - Catalyst Inspection and/or Replacement: Overview

RECALL NUMBER: 91E13

Date: May 1992



At Dealers By as Req'd 0 % of Parts Direct
Shipped to Dealers
At PDC By Now

Date in Owner Letter: XXXX, 92



To: All Dealers

SUBJECT:
Emissions Recall 91E13 - Exhaust System Catalyst Inspection/Replacement on Certain 49-States 1986/1987/1988 and 1989- Model year Passenger Cars Equipped with 2.3L and 5.0L engines.

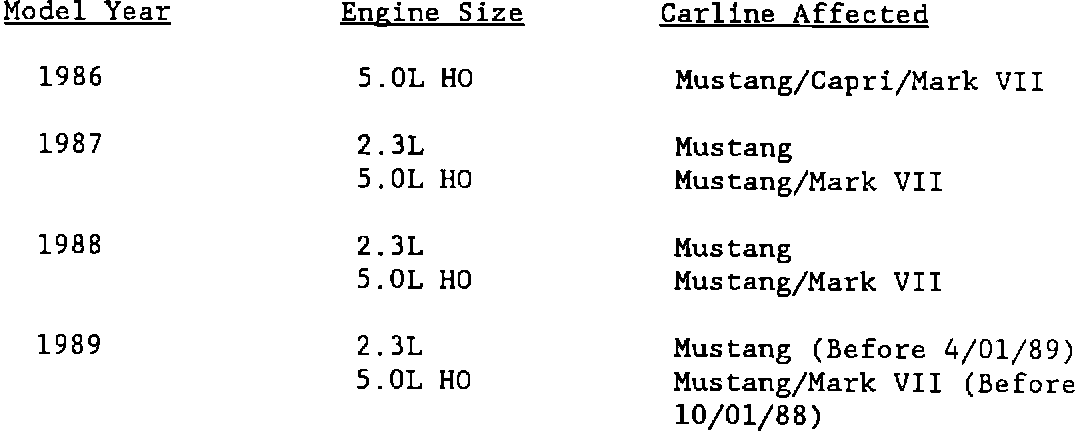

AFFECTED VEHICLES
These vehicles are affected by this recall.



REASON FOR RECALL:
The substrate material in the underbody catalysts on the affected cars may rattle and break up during normal customer usage. If the substrate breaks up, the exhaust emission levels may exceed Federal standards.

SERVICE ACTION:
Cars returned for service will be inspected and, if necessary, have exhaust system underbody catalysts replaced at no charge.

ATTACHMENTS

Attachment I
^ Administrative Information Attachment II
^ Labor Allowances
^ Parts Ordering Information
^ Removed Catalyst Return Instructions

Attachment III
^ Technical Information
