Headlamp Dimmer Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

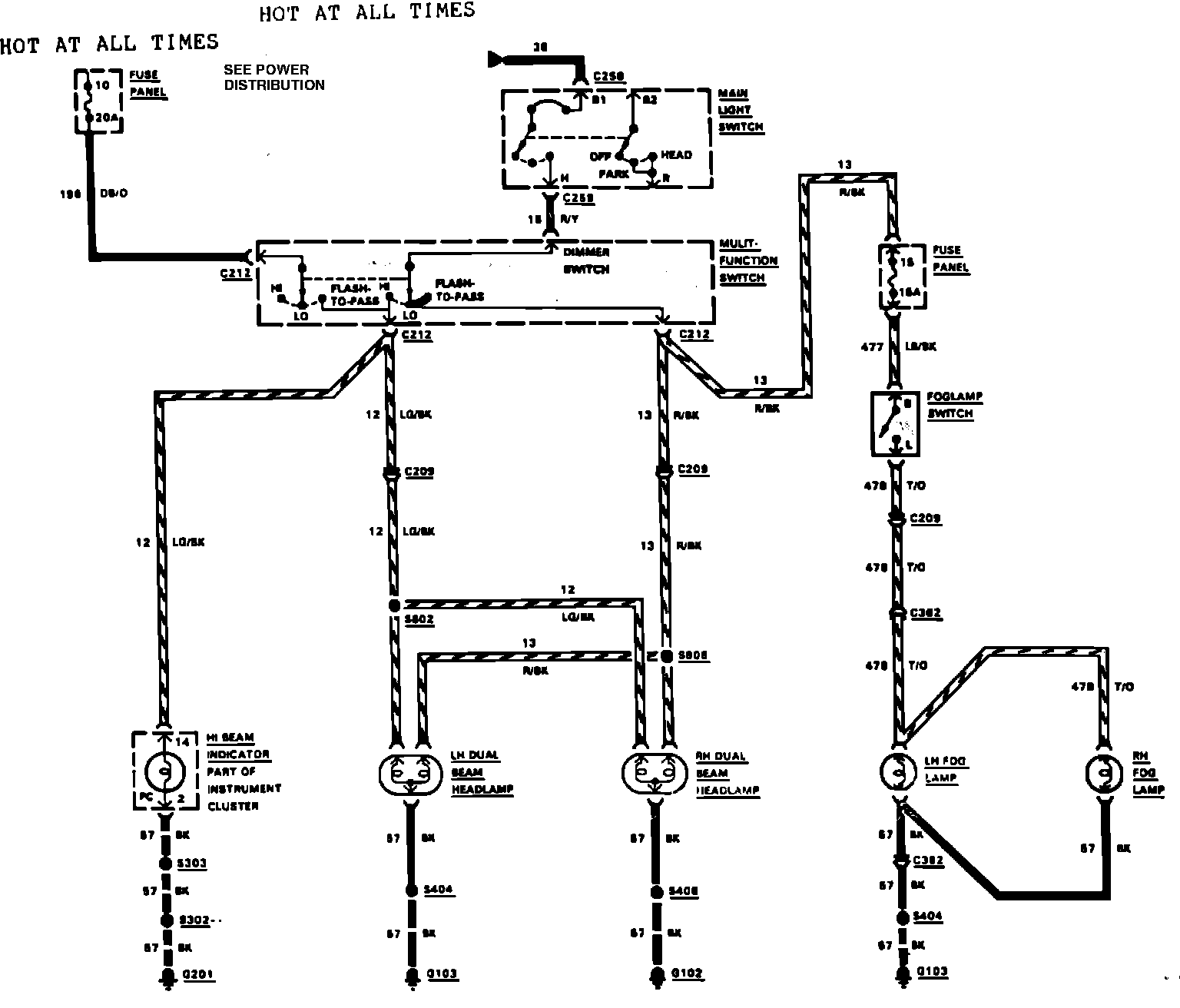

Fig. 14 Foglamp & Headlamp Wiring Circuit:
