Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Heating and Air Conditioning
>>
Refrigerant System Pressure & Temperature Charts
Refrigerant System Pressure & Temperature Charts

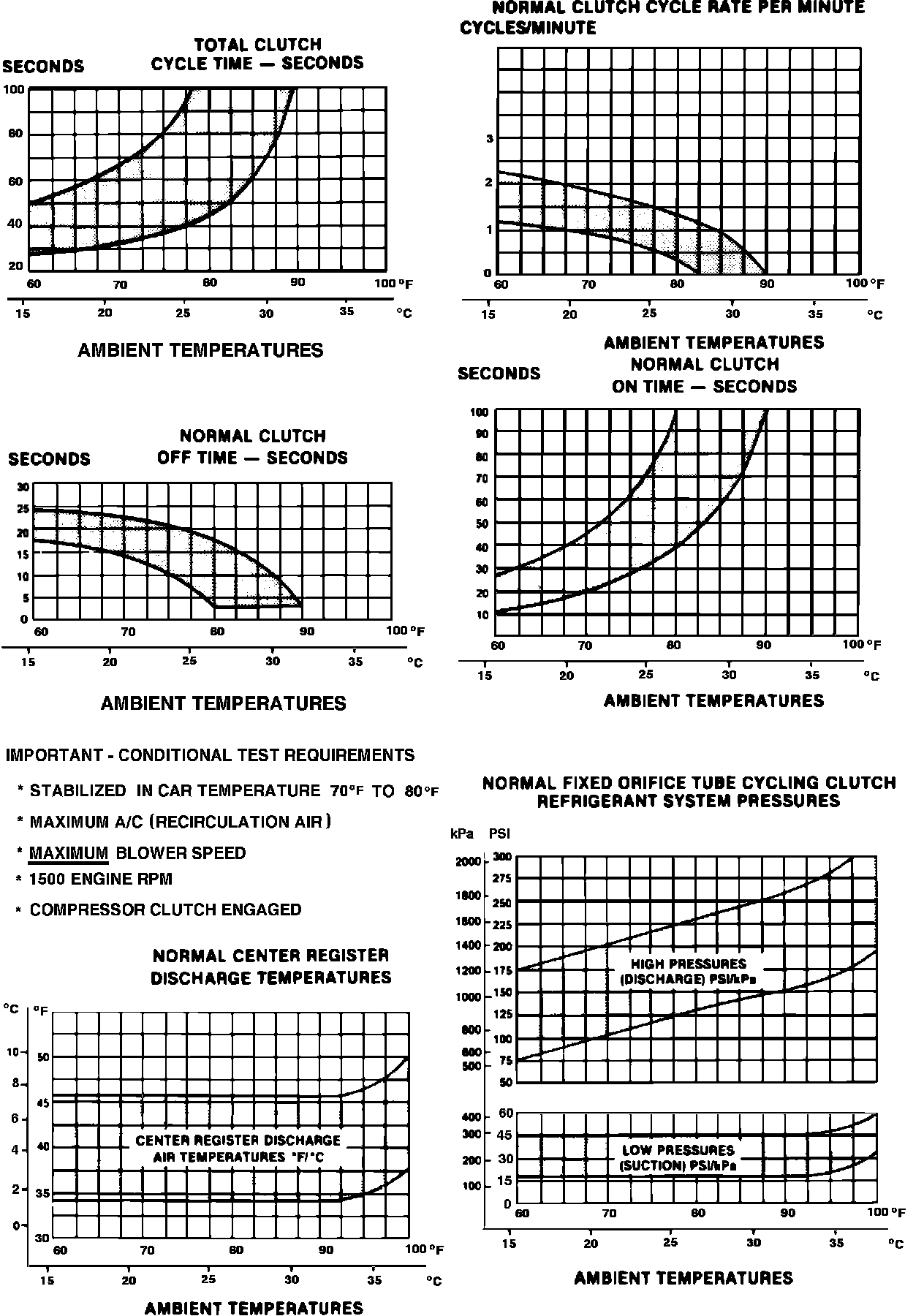

Fig. 11 Refrigerant system pressure & temperature charts.:
