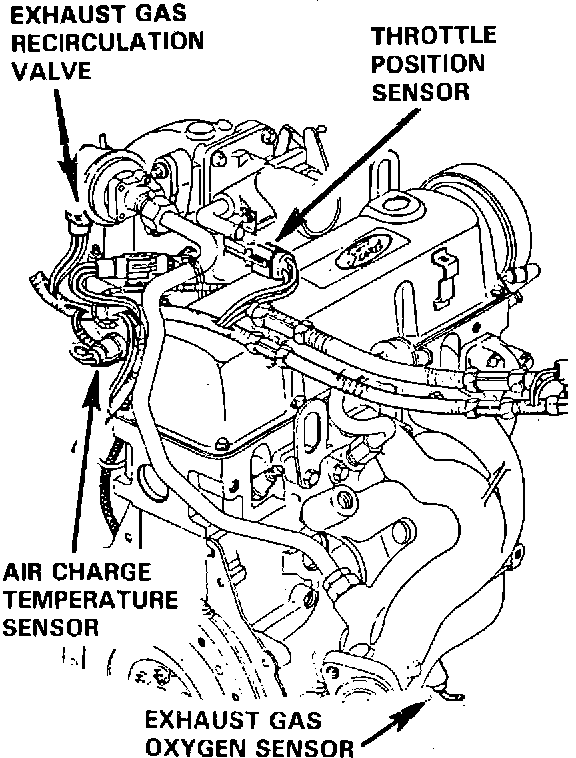

Throttle Position Sensor: Locations

RH Side Of 4-140/2.:




Top Of Engine

Applicable to: 3 Gasoline Engine
