Engine Control Module
Engine Control Module

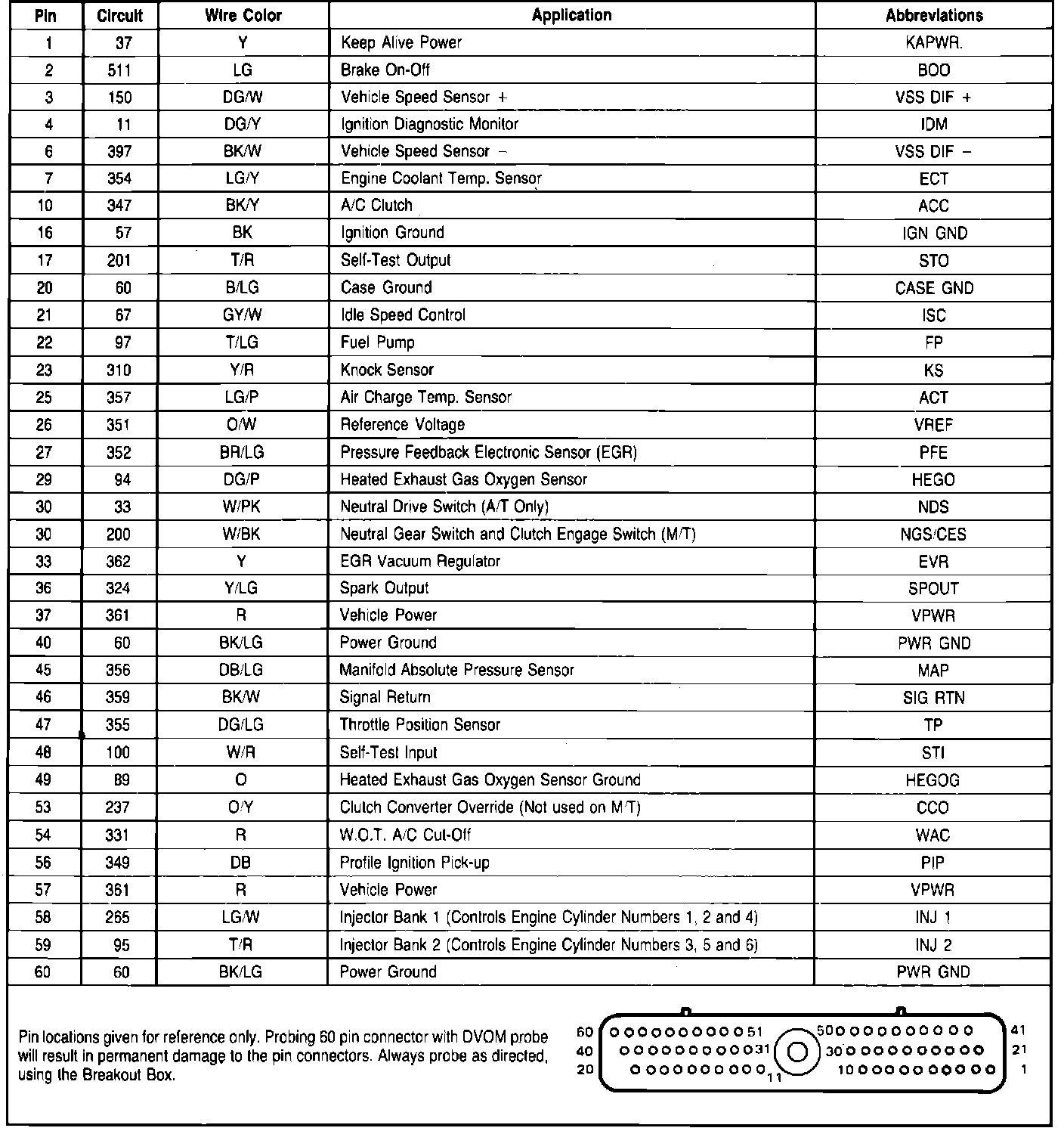

Fig. 205 EEC-IV connector terminal identification. 1987 V6-177:
