Condenser HVAC: Service and Repair

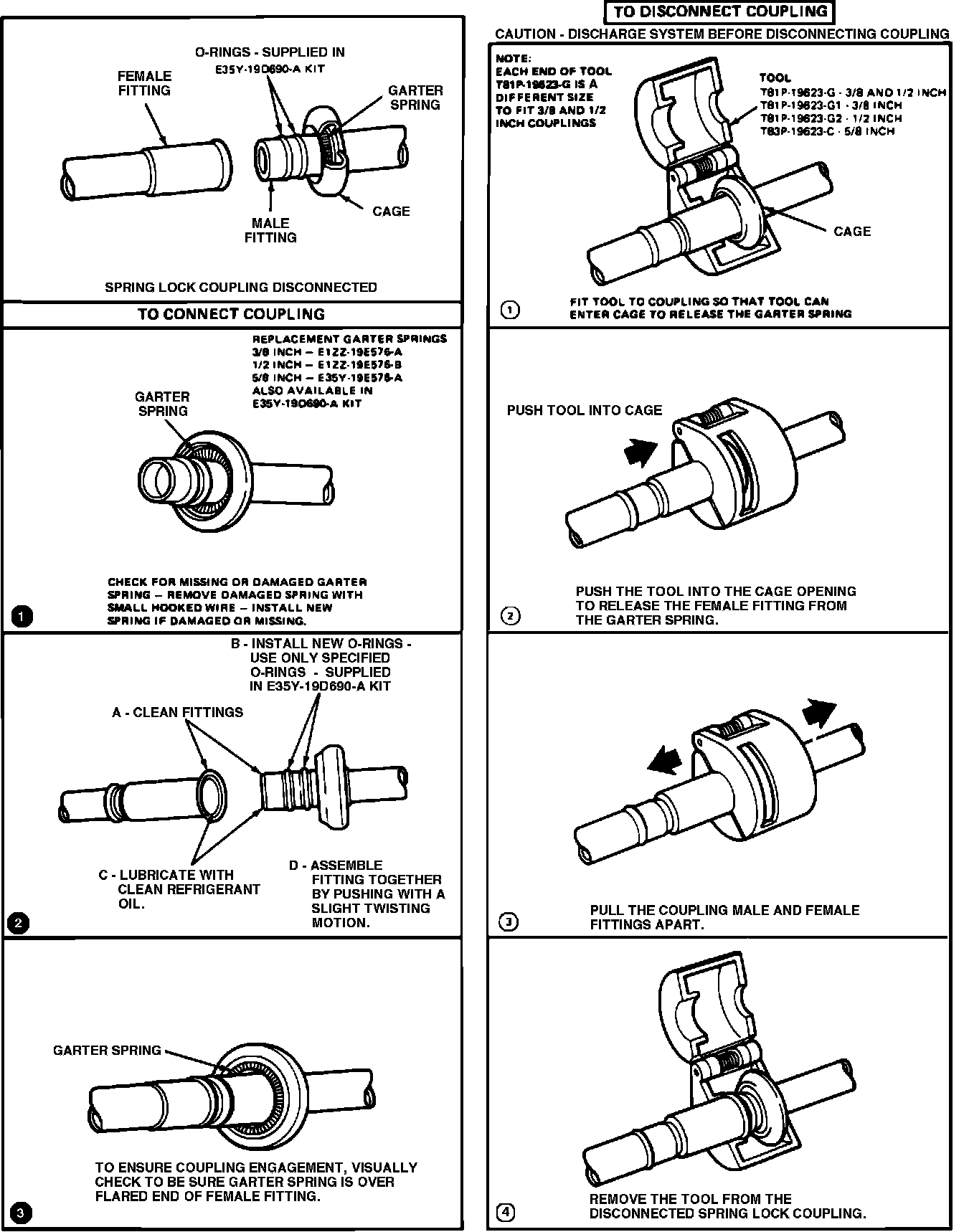

Fig. 2 Spring lock coupling removal & installation:

1. Discharge refrigerant from system.
2. Disconnect compressor discharge line and liquid line from condenser, and cap both lines. These vehicles are equipped with spring lock couplings, Fig. 2.

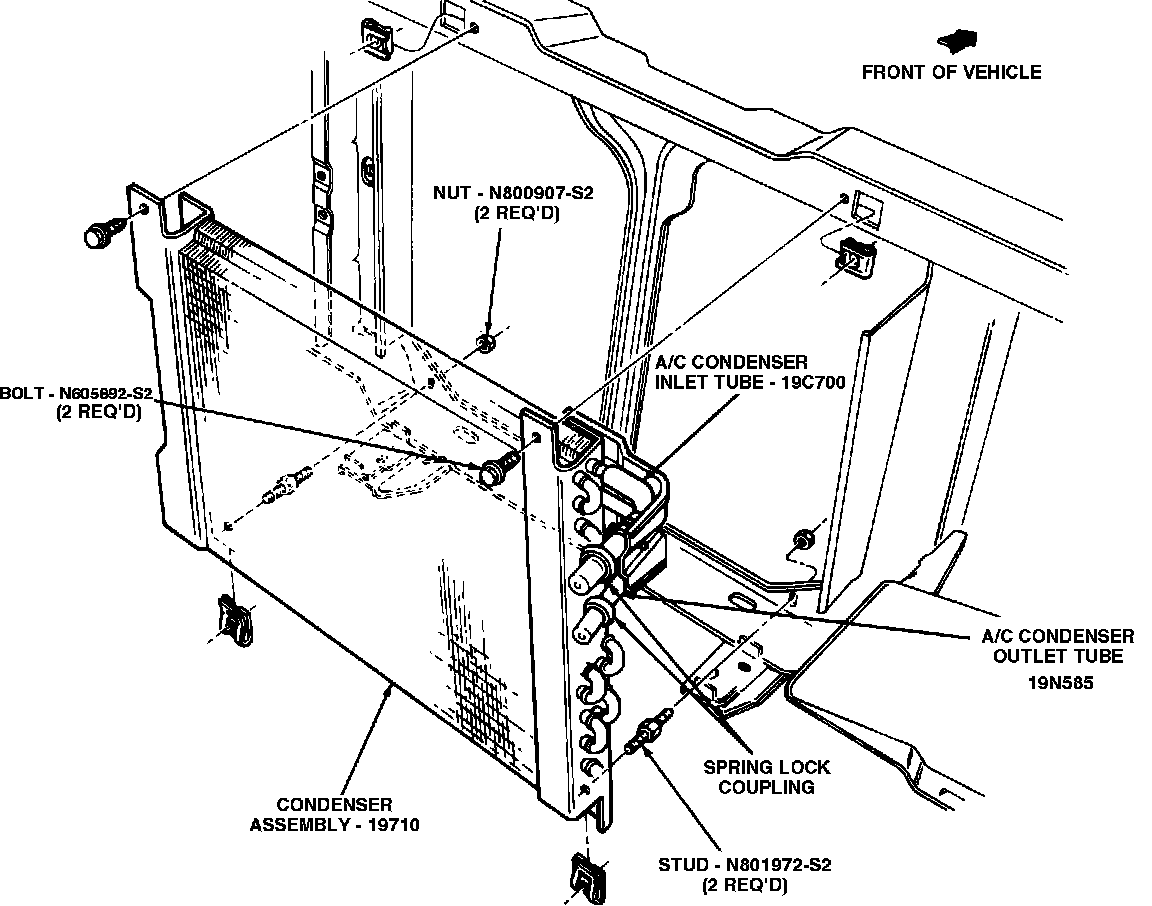

Fig. 4 Condenser removal.:

3. Working under vehicle, remove two nuts attaching two lower mounting studs, Fig. 4.


4. Remove upper radiator brackets and tilt top of radiator rearward. Then remove two bolts attaching two condenser upper mounting brackets to rear side of radiator support.
5. Remove condenser from vehicle.
6. Reverse procedure to install. Use new O-ring lubricated with suitable oil.
7. Leak test, evacuate and charge system. Check system from proper operation.
