Performing Quick Tests

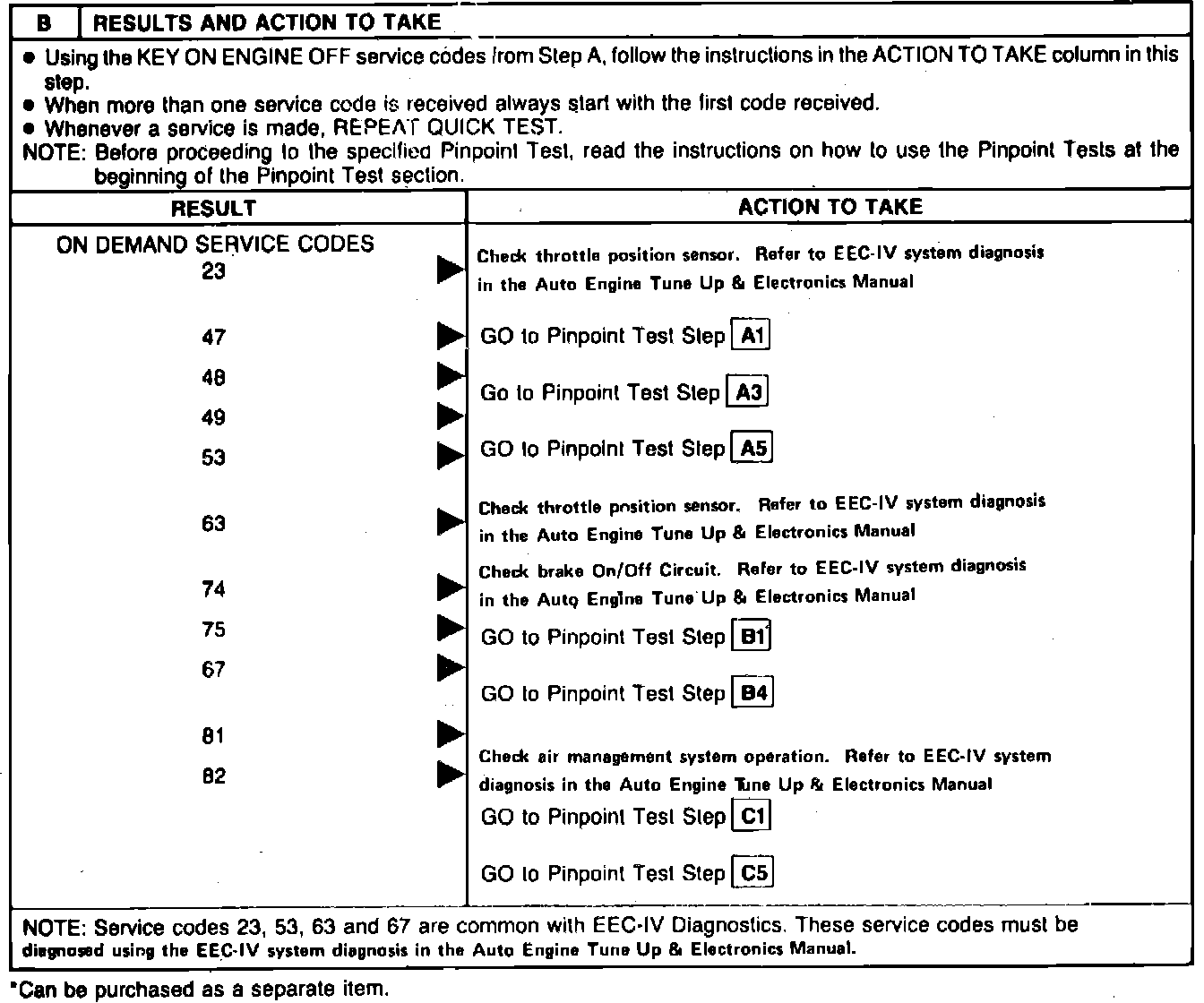

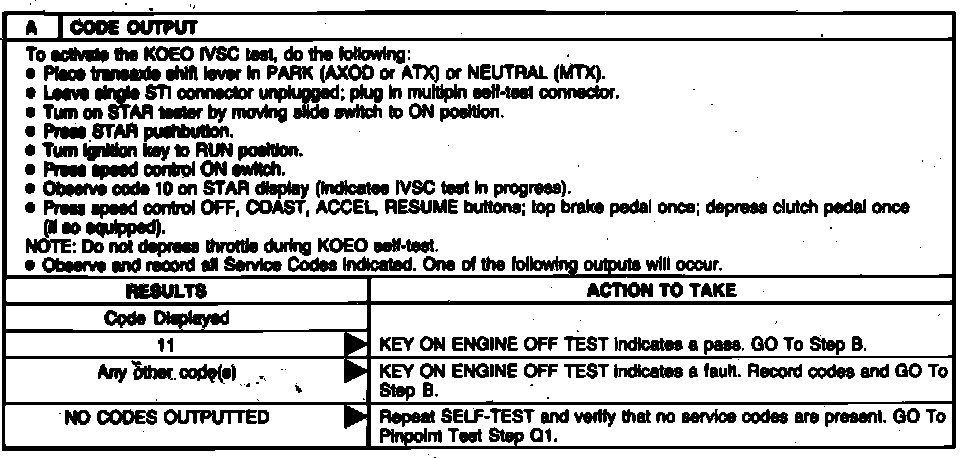

Fig. 16 Quick Test: Key On, Engine Off (KOEO) Self-Test (Part 1 of 2):
Fig. 16 Quick Test: Key On, Engine Off (KOEO) Self-Test (Part 2 of 2):

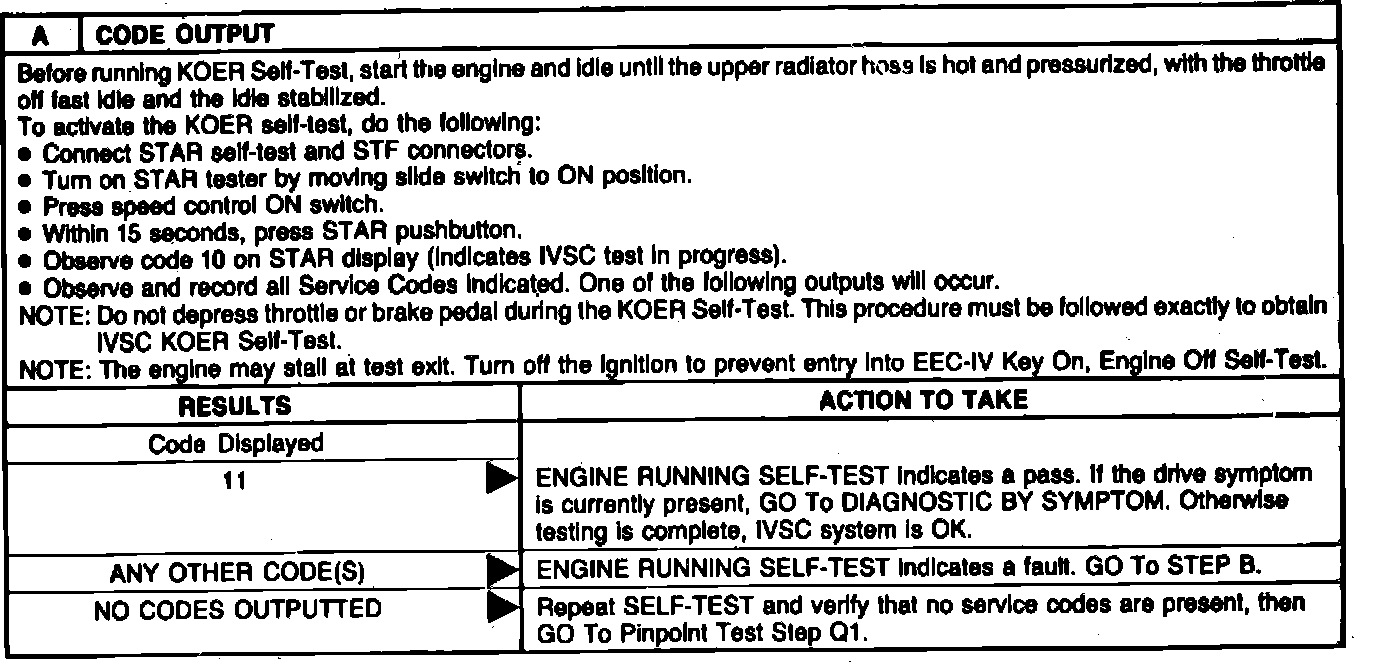

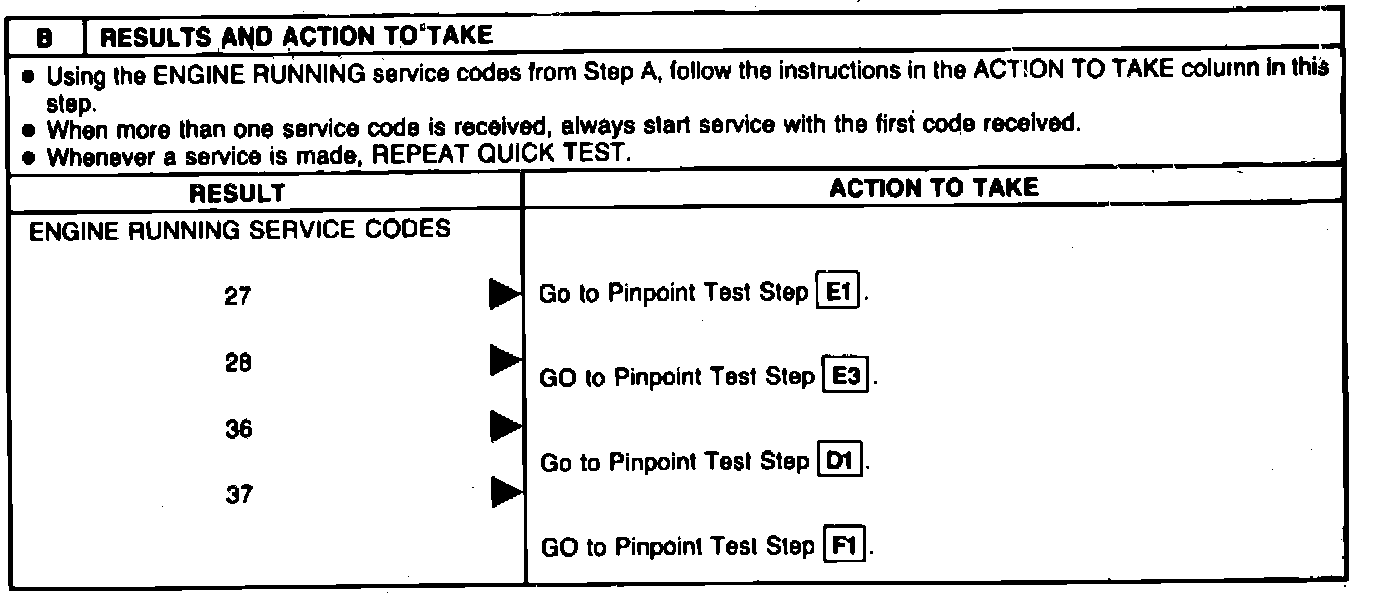

Fig. 17 Quick Test: Key On, Engine Running (KOER) Self-Test (Part 1 of 2):
Fig. 17 Quick Test: Key On, Engine Running (KOER) Self-Test (Part 2 of 2):
Refer to
Figs. 16 and 17 to perform system quick tests.
