Turn Signal Flasher: Service and Repair

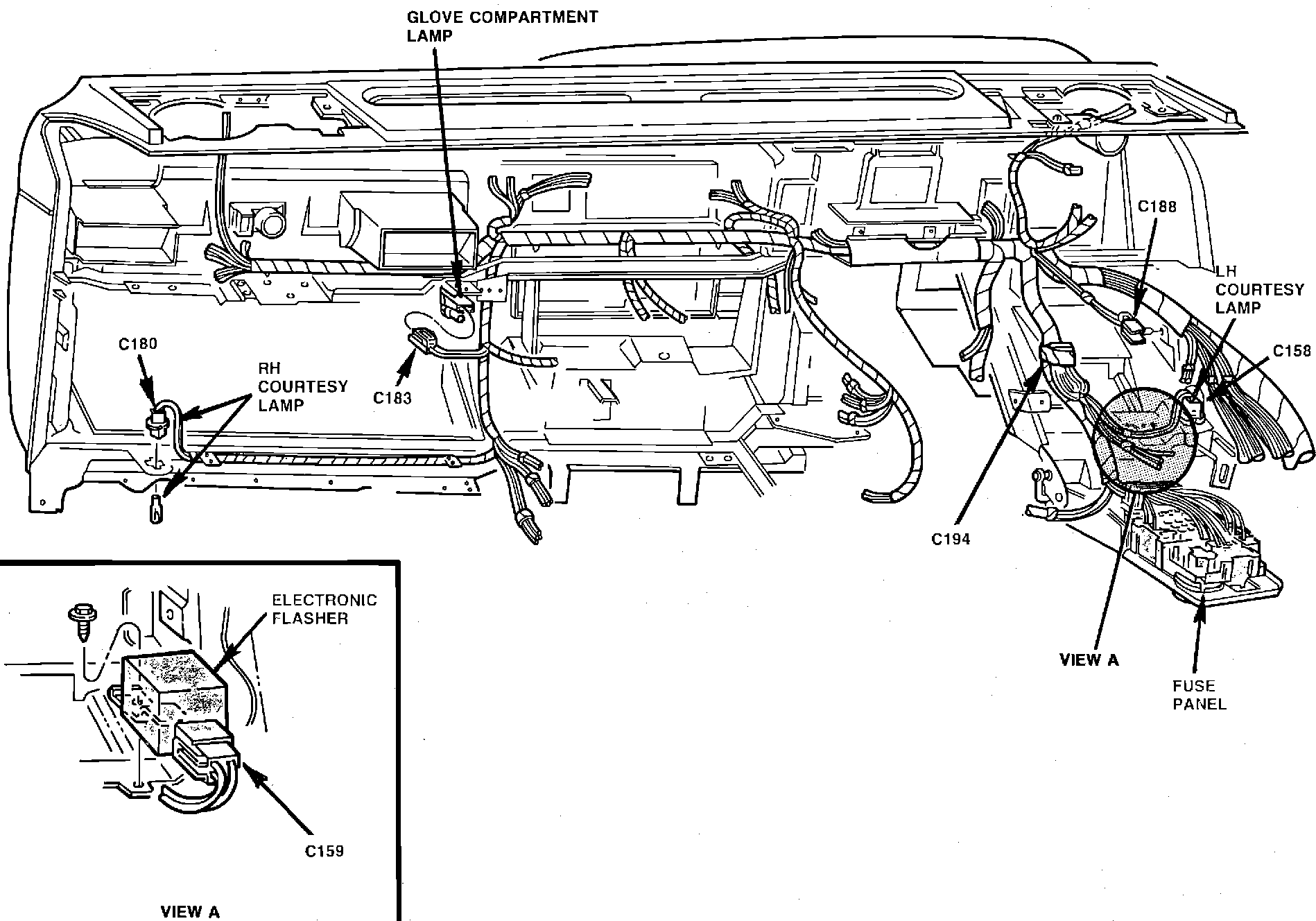

Location View - Instrument Panel Wiring (Taurus):

Removal and Installation:
The combination Turn Signal and Hazard Electronic Flasher is located on the Left Hand side of the instrument panel, and is attached by one screw to the lower instrument panel reinforcement.

The Electronic Flasher can be removed by pressing the plastic retaining clip (attached to the Flasher housing) and pulling straight rearward. Installation of a new Flasher can be made by removing the bracket from the new unit, then aligning the existing bracket to the instrument panel with the track on the Flasher housing. Then push the Flasher forward until it snaps into the bracket.

NOTE: The electrical wiring connector can be removed prior to installing a new unit and engaged into the new unit prior to snapping it into the bracket.
