ISC Actuator Pinpoint Test K - Manual Revision

90ford11

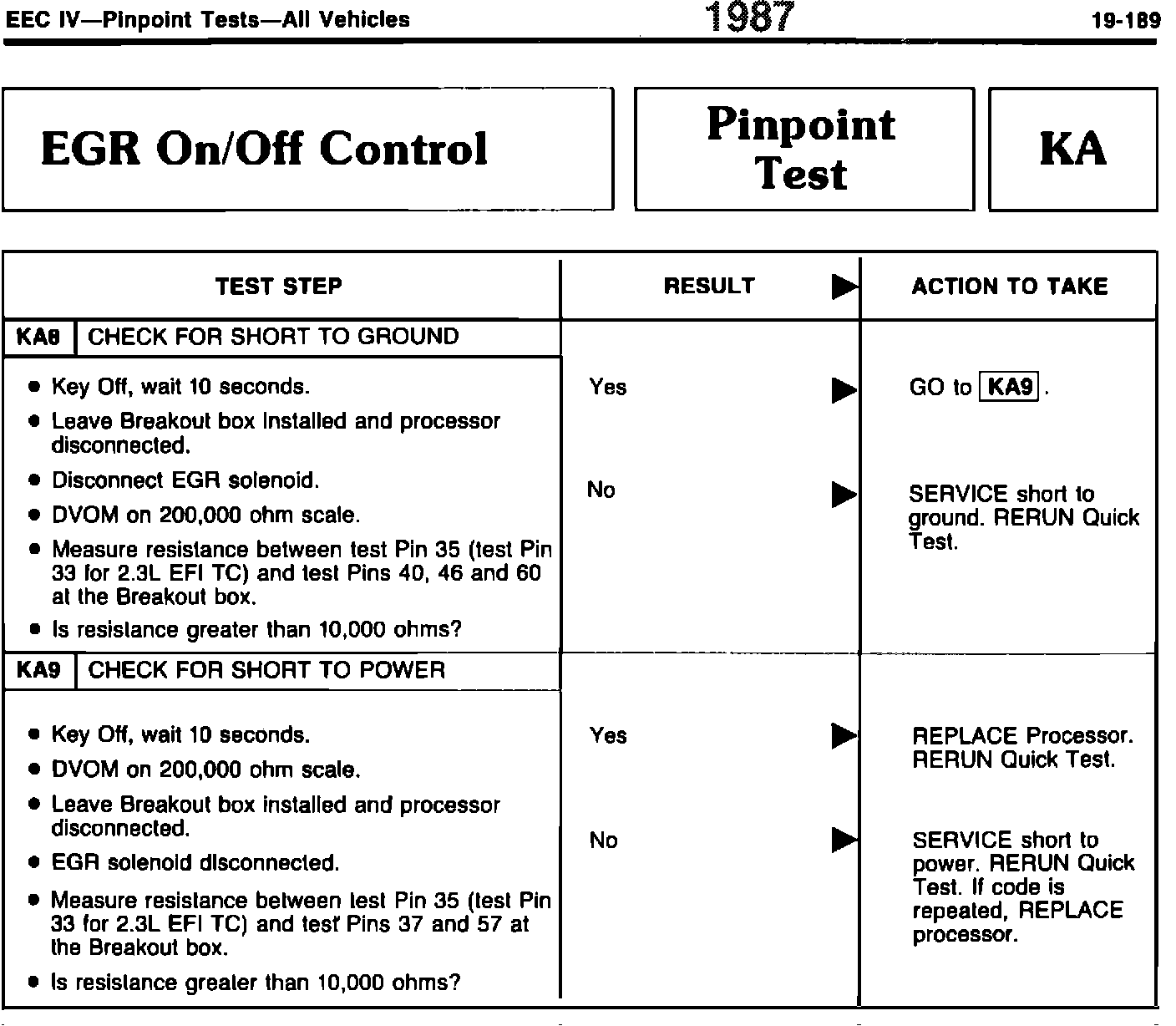

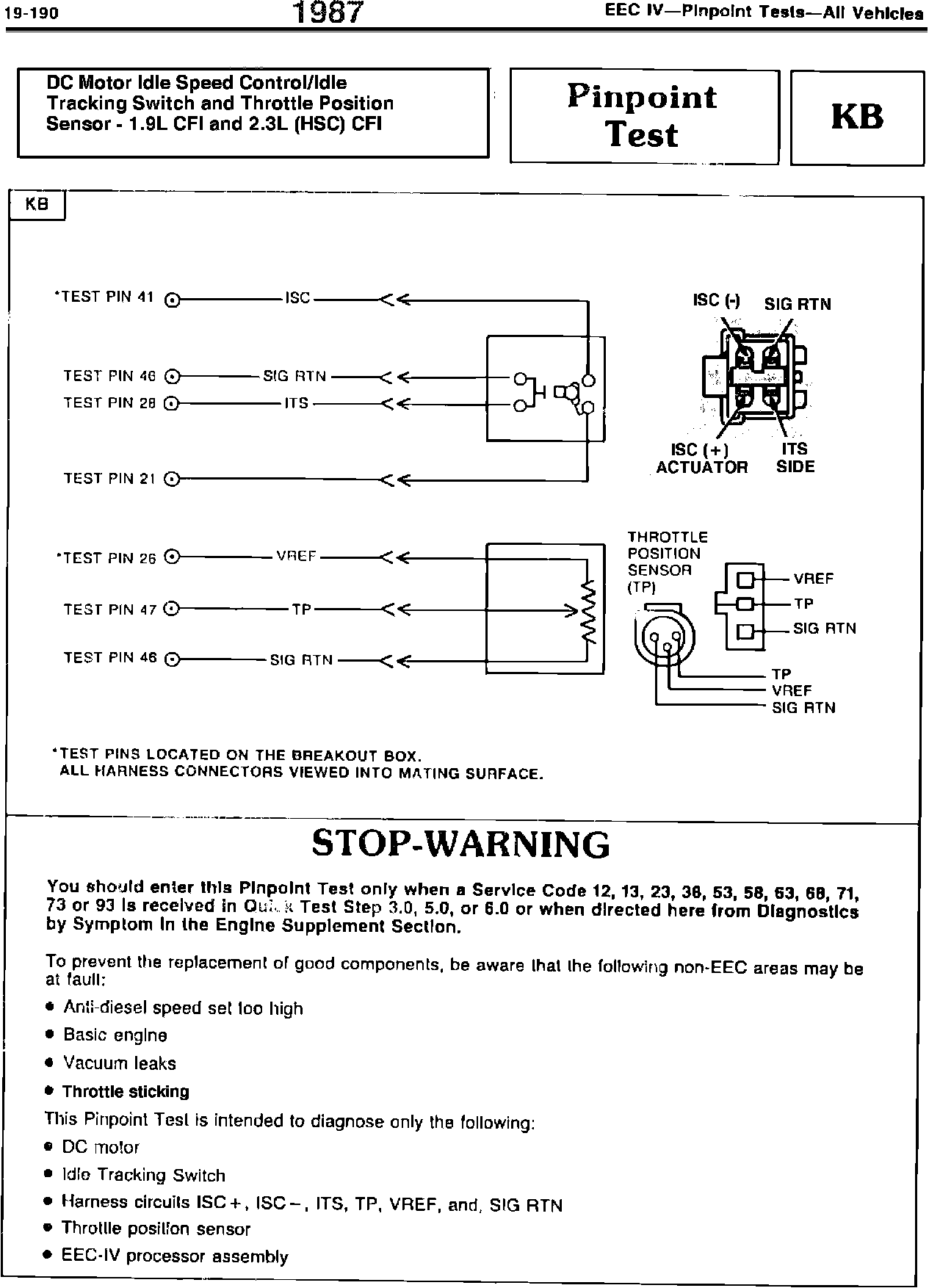

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1987 - PAGE 19-190 - PINPOINT TEST PIN IDENTIFICATION AND CONNECTOR REVISED

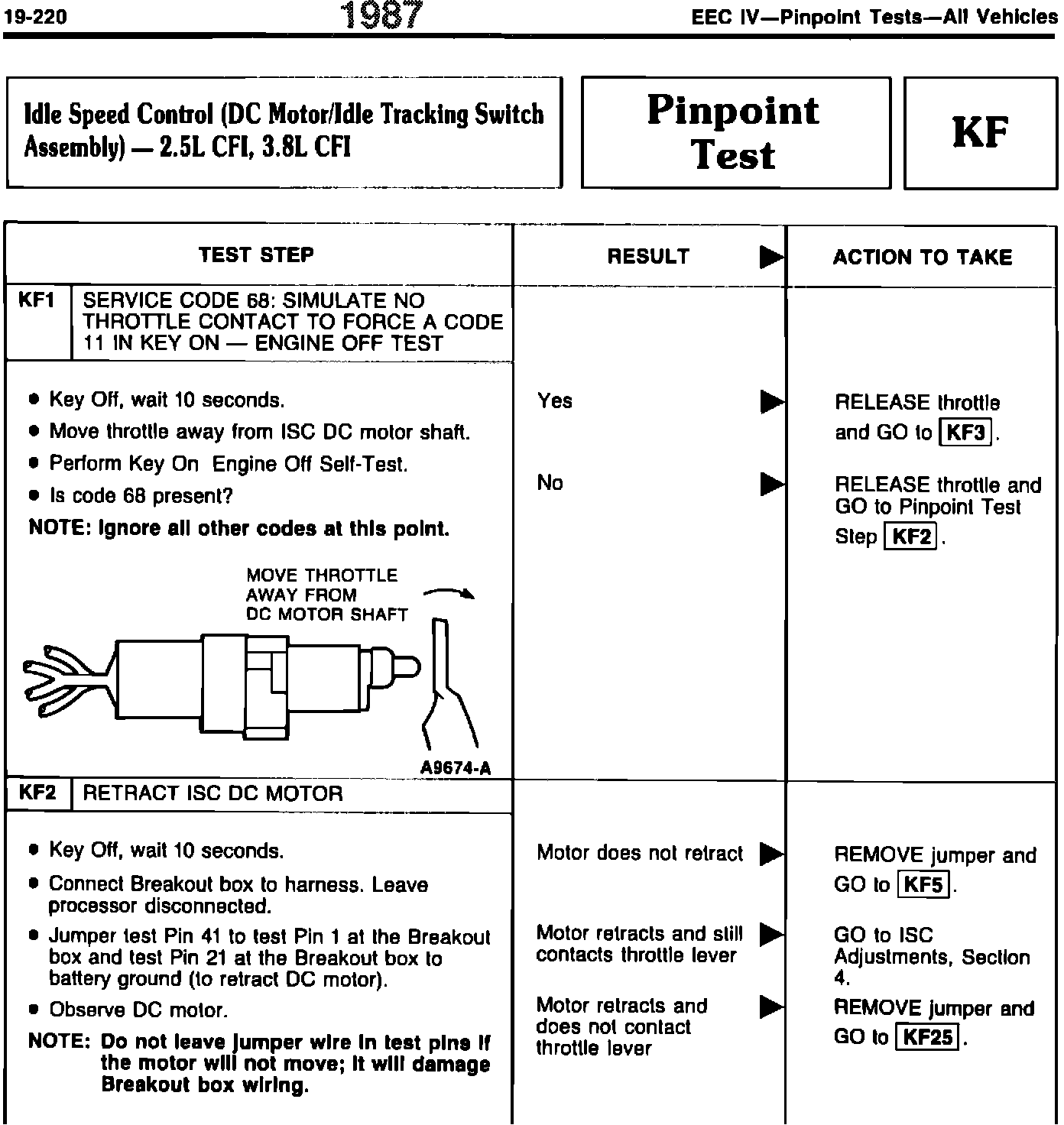

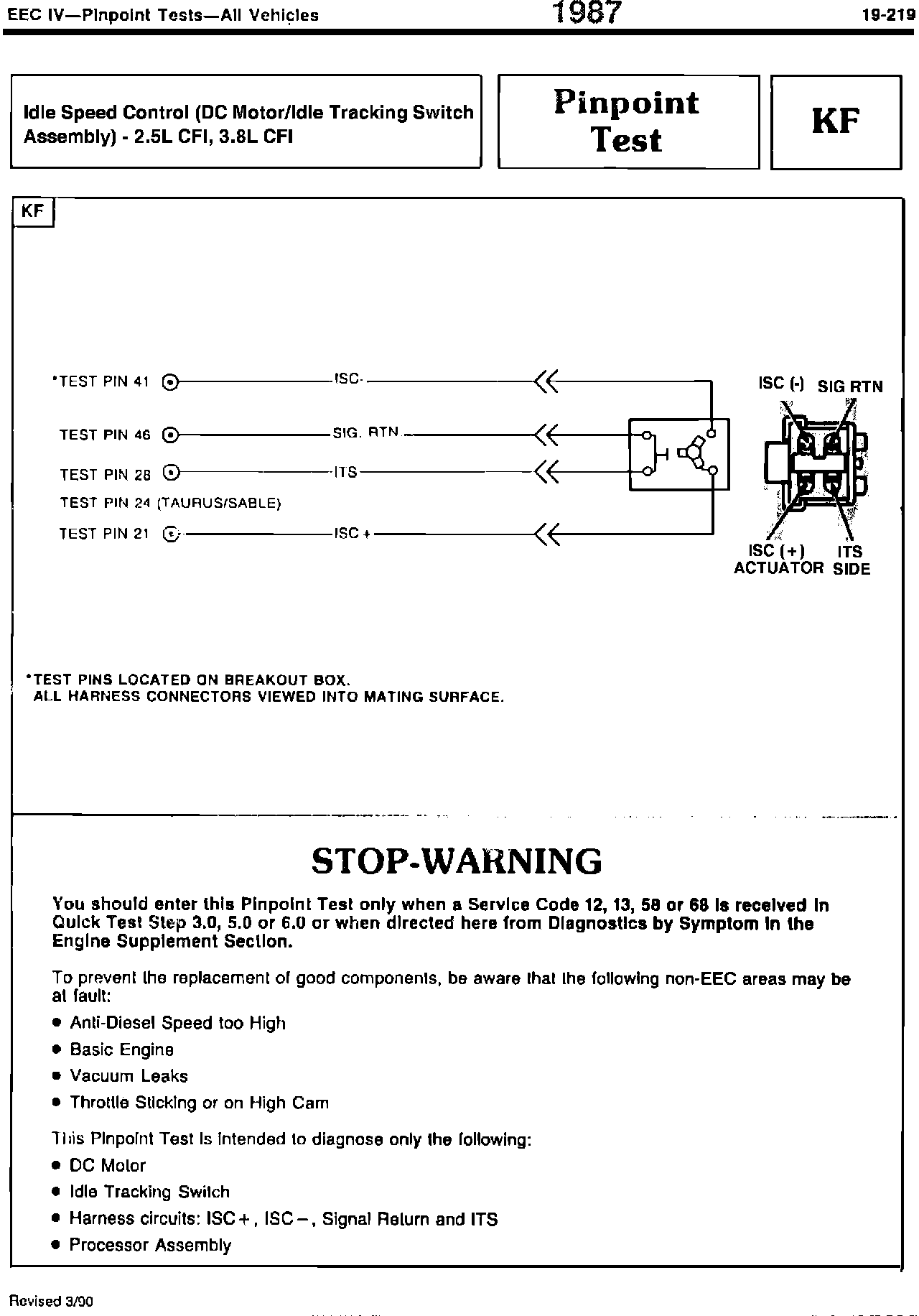

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1987 - PAGE 19-219 - PINPOINT TEST PIN CONNECTOR REVISED

Article No. 90-6B-10

FORD: 1987 ESCORT, TAURUS, TEMPO, THUNDERBIRD

LINCOLN-MERCURY: 1987 COUGAR, LYNX, TOPAZ













ISSUE: The Idle Speed Control Actuator (ISCA) connector pin diagrams for Pinpoint Test KB and Pinpoint Test KF are incorrect. The affected pages are:

^ 19-190 of the 1987 Engine Emissions Diagnosis Shop Manual

^ 19-219 of the 1987 Engine Emissions Diagnosis Shop Manual

ACTION: Refer to the pages following this TSB article for the revised information and diagrams.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
