Vehicle Speed Sensor - Manual Correction

90ford33 ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1987 - PAGE 35 AND PAGE 37 - ELECTRONIC ENGINE CONTROL AND SPEED CONTROL SCHEMATICS REVISED
Article No. 90-18B-22
FORD: 1987 TAURUS

LINCOLN-MERCURY: 1987 SABLE

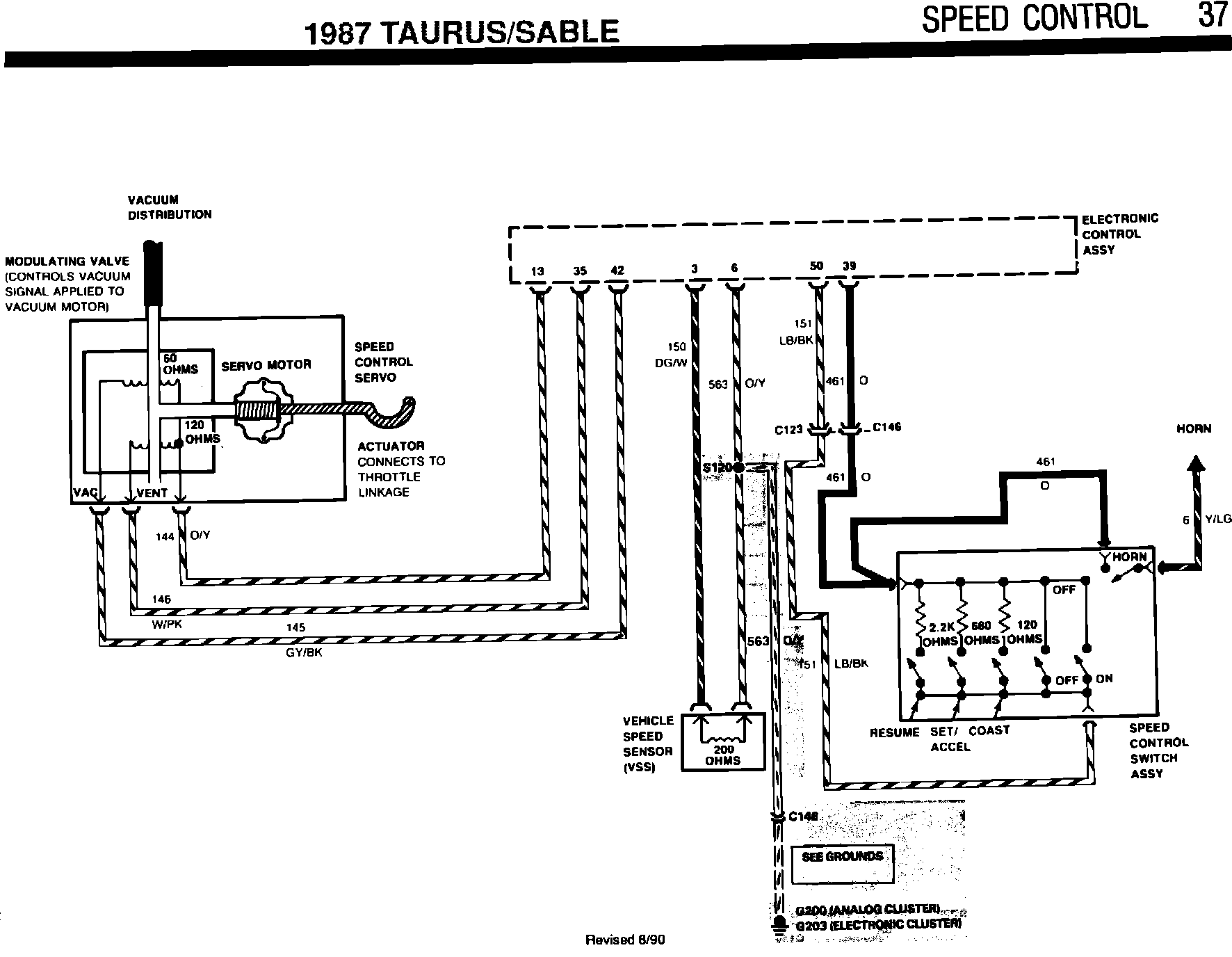

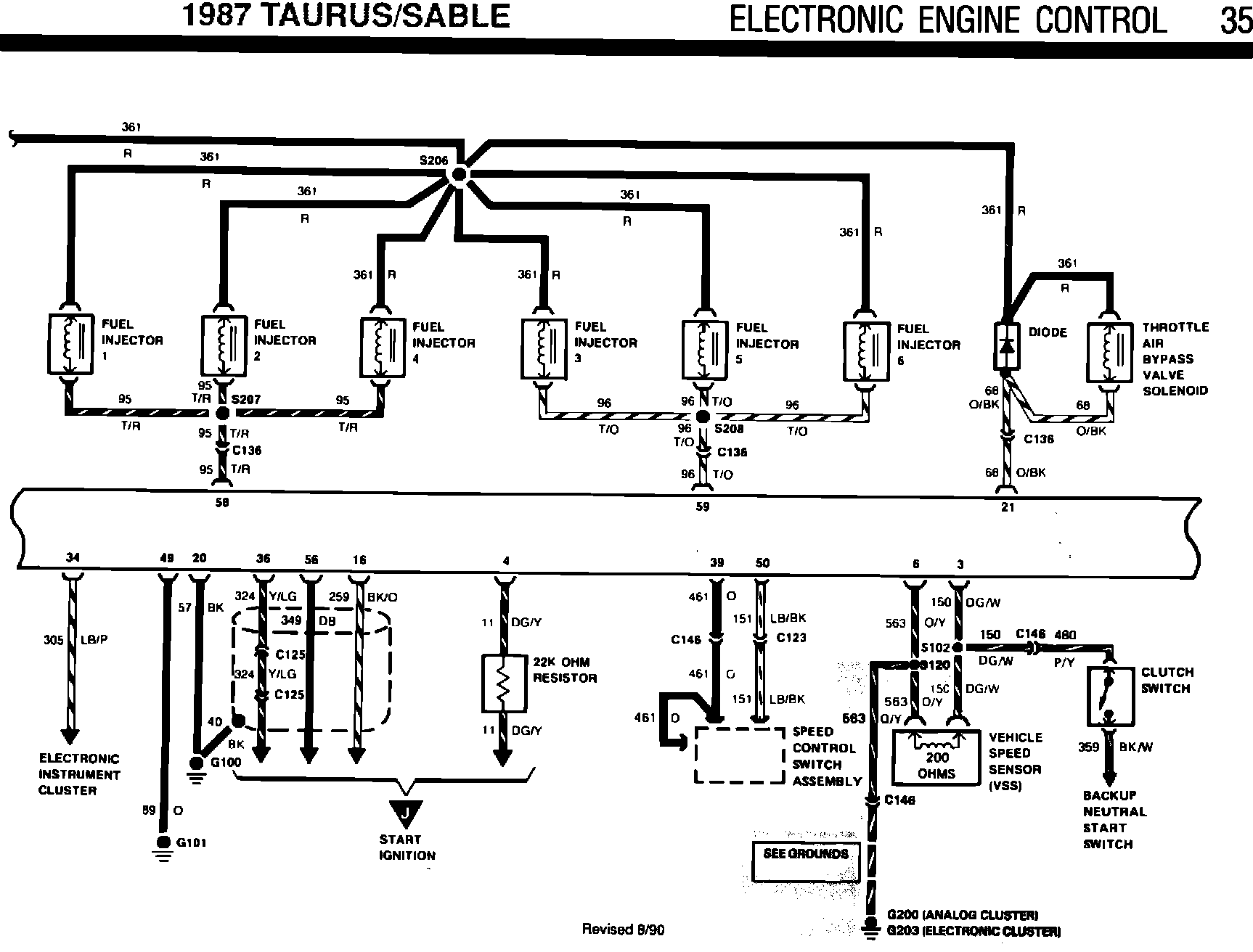

ISSUE: The schematics on Page 35 and Page 37 of the 1987 Taurus/Sable EVTM do not show the Vehicle Speed Sensor circuit correctly.

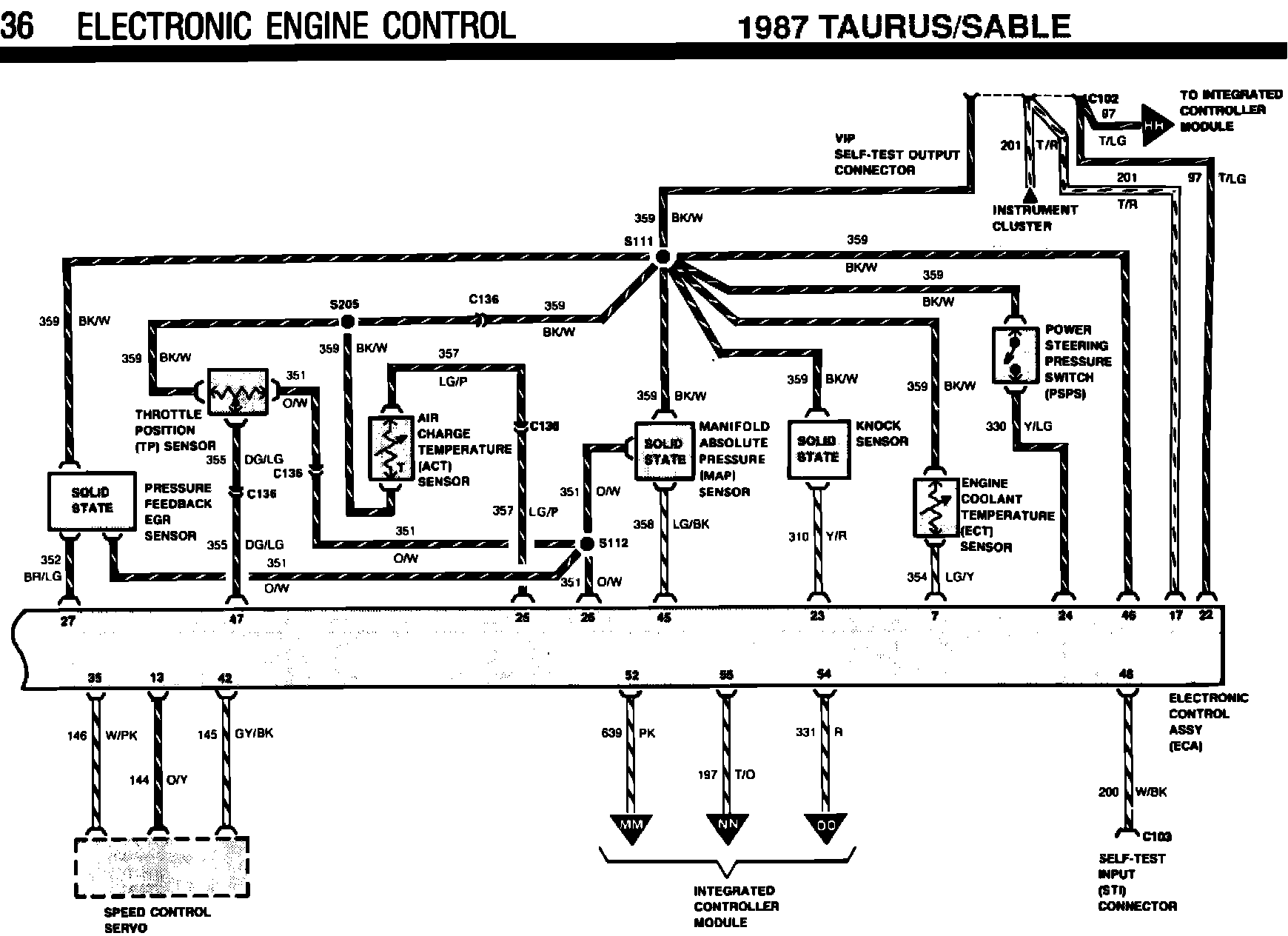

ACTION: Refer to the pages following this TSB article for the revised Electronic Engine Control and Speed Control schematics.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
