Lifter / Lash Adjuster, Valve

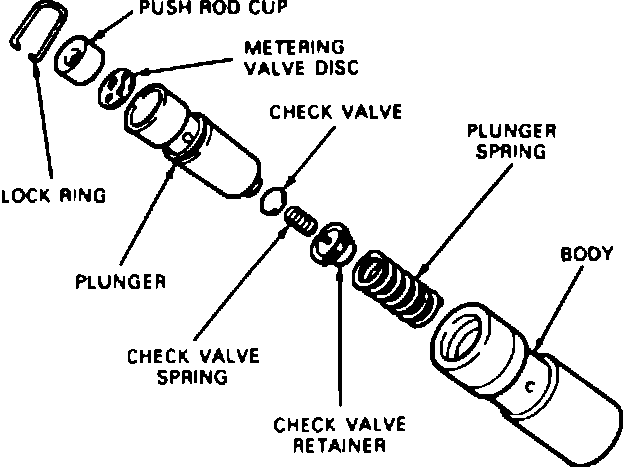

Fig. 25 Hydraulic valve lifter:
The internal parts of each hydraulic lifter (tappet) assembly are matched sets. Do not mix the parts. Keep the assemblies intact until they are to be cleaned.
