EGR Control Solenoid: Locations

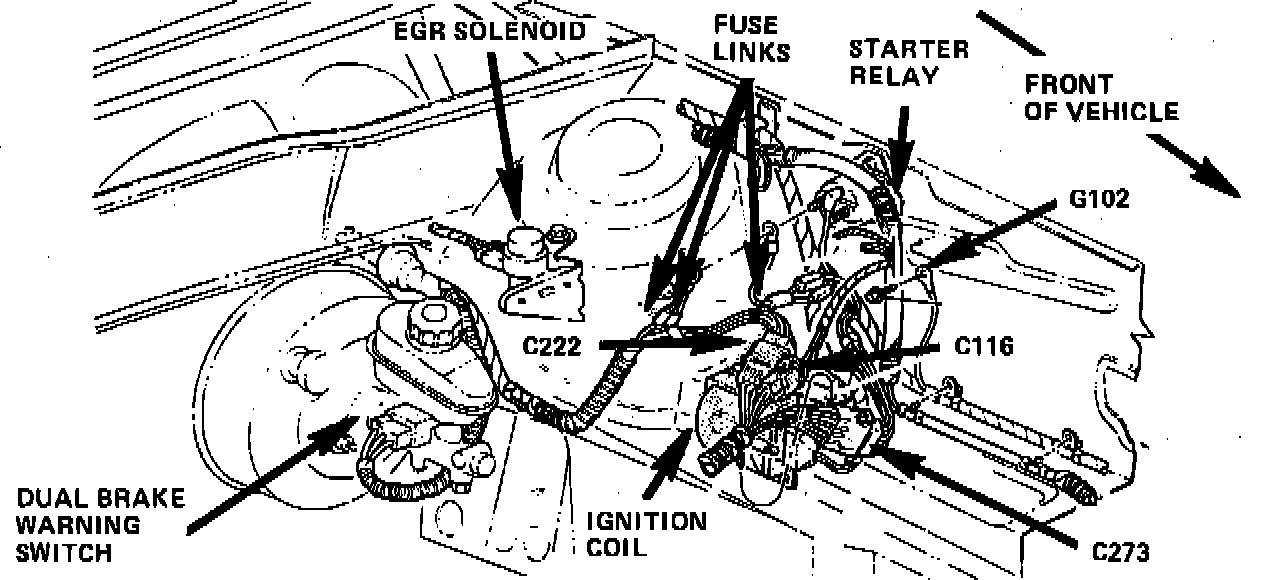

Component & Connector Location.:
LH Side Of Dash Extension, Behind Shock Tower
Applicable to: LH Fender Apron
