DK - Vane Air Flow Sensor (VAF)
>>
DK1 - DK2
DK1 - DK2

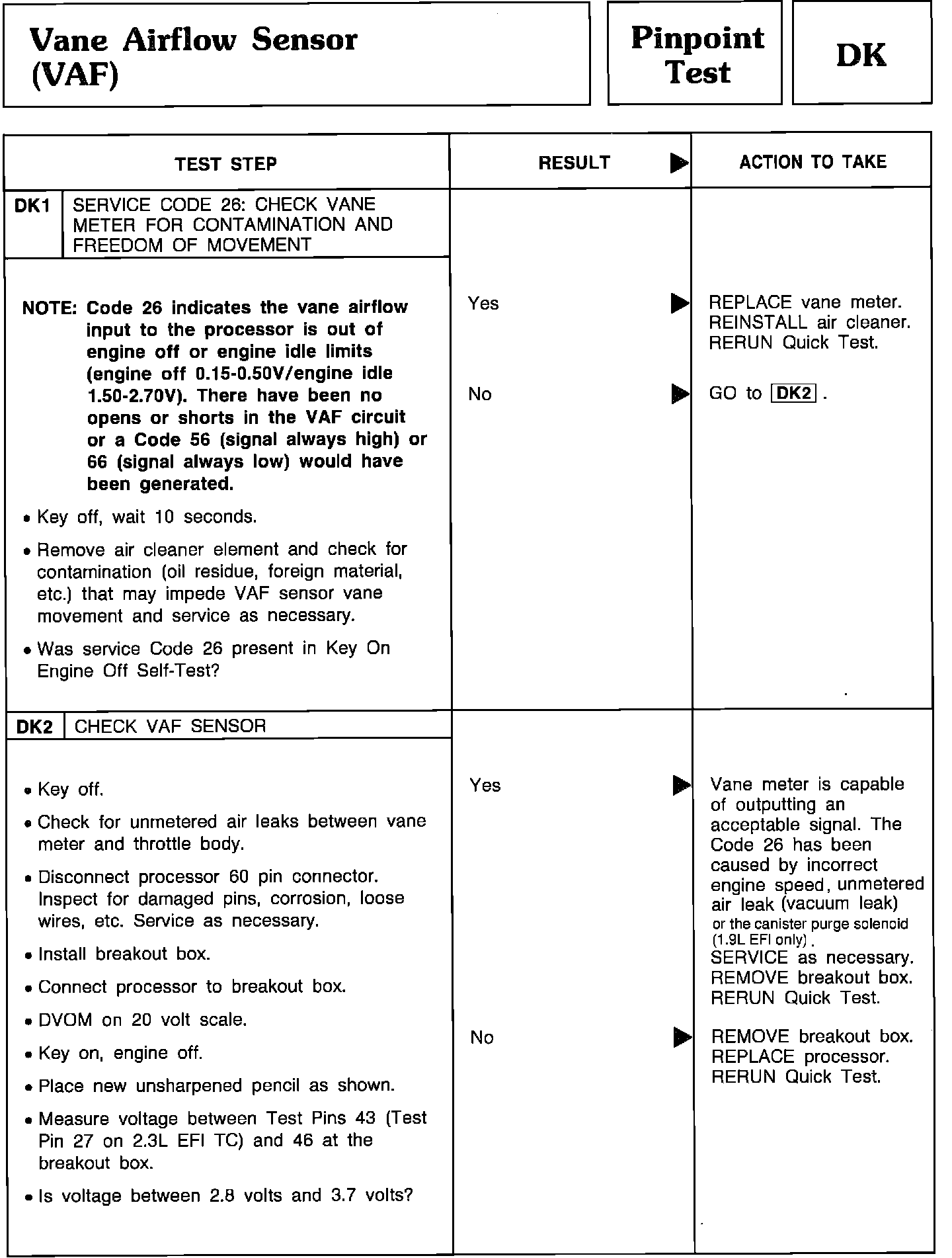

Pinpoint Test DK1 & DK2 - Vane Airflow Sensor (VAF):
