DA - Vane Air Temperature Sensor (VAT)
>>
DA - Wiring Diagram
DA - Wiring Diagram

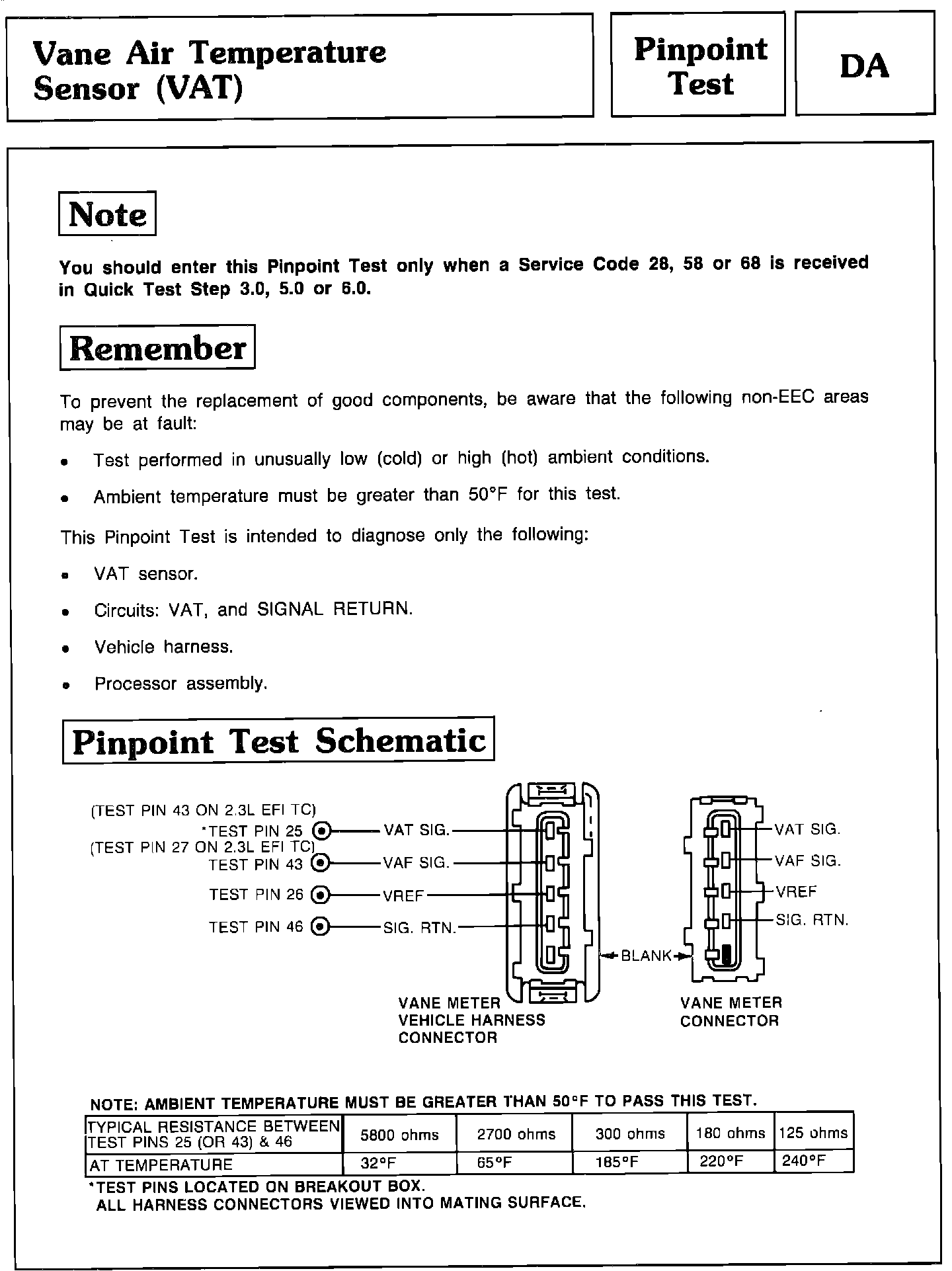

Pinpoint Test DA - Vane Air Temp. Sensor (VAT):
