Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DC - Mass Air Flow (MAF) Sensor
>>
DC1 - DC3
DC1 - DC3

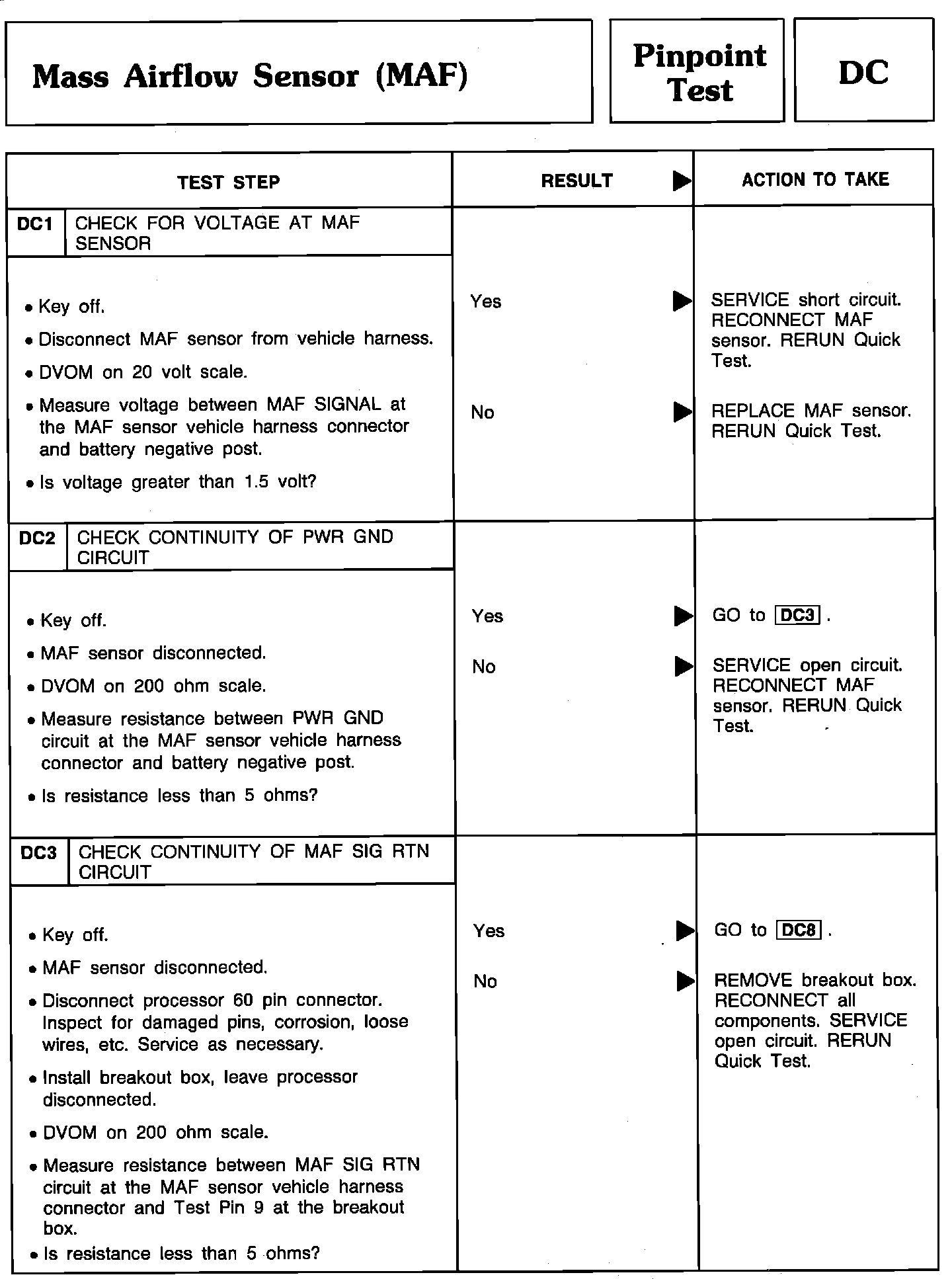

Pinpoint Test DC1 Thru DC3 - Mass Airflow Sensor (MAF):
