DF20 - DF22

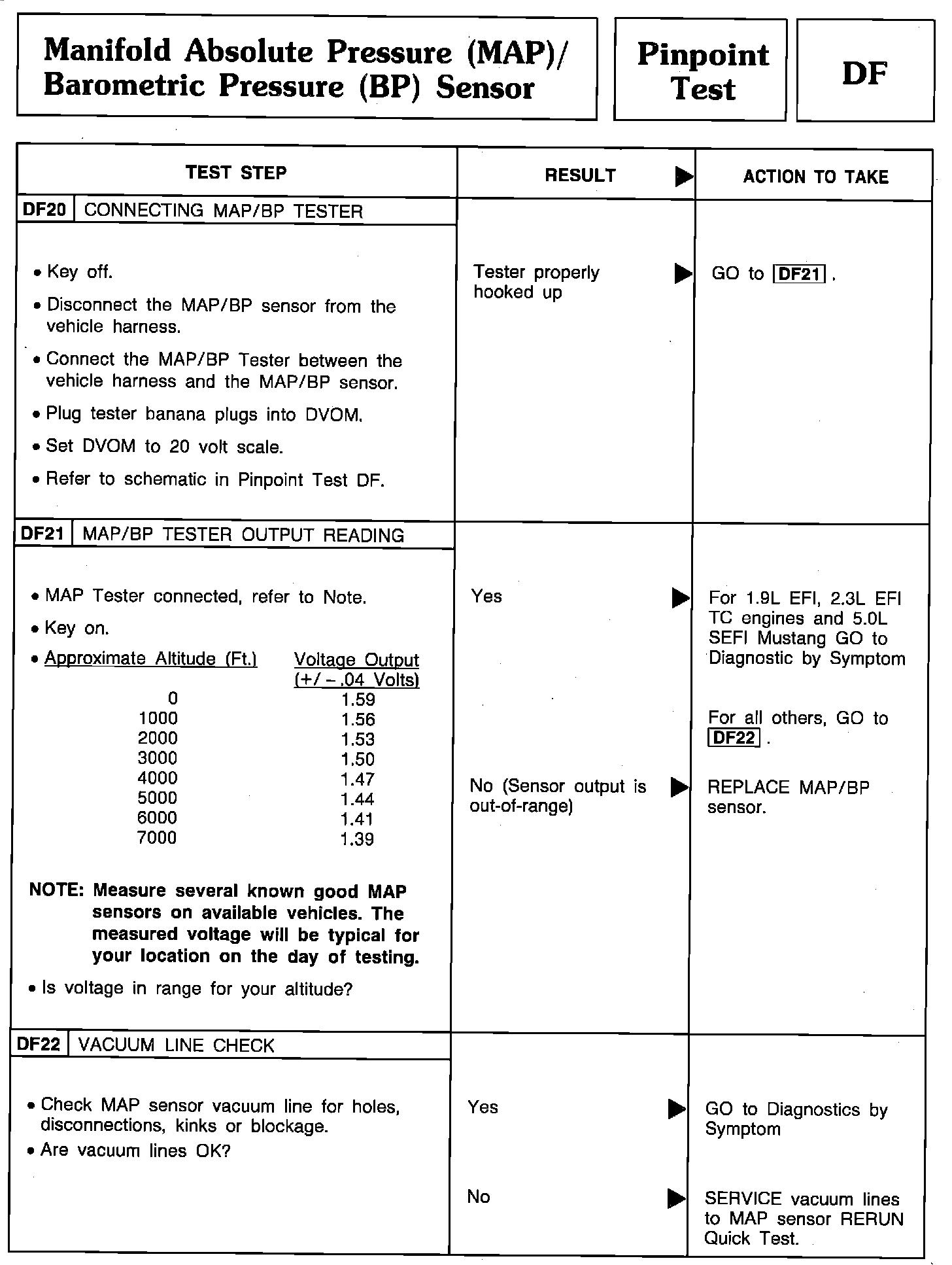

Pinpoint Test DF20 Thru DF22 - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
