F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J - Fuel Pump Circuit
>>
J32 - J90
J32 - J90

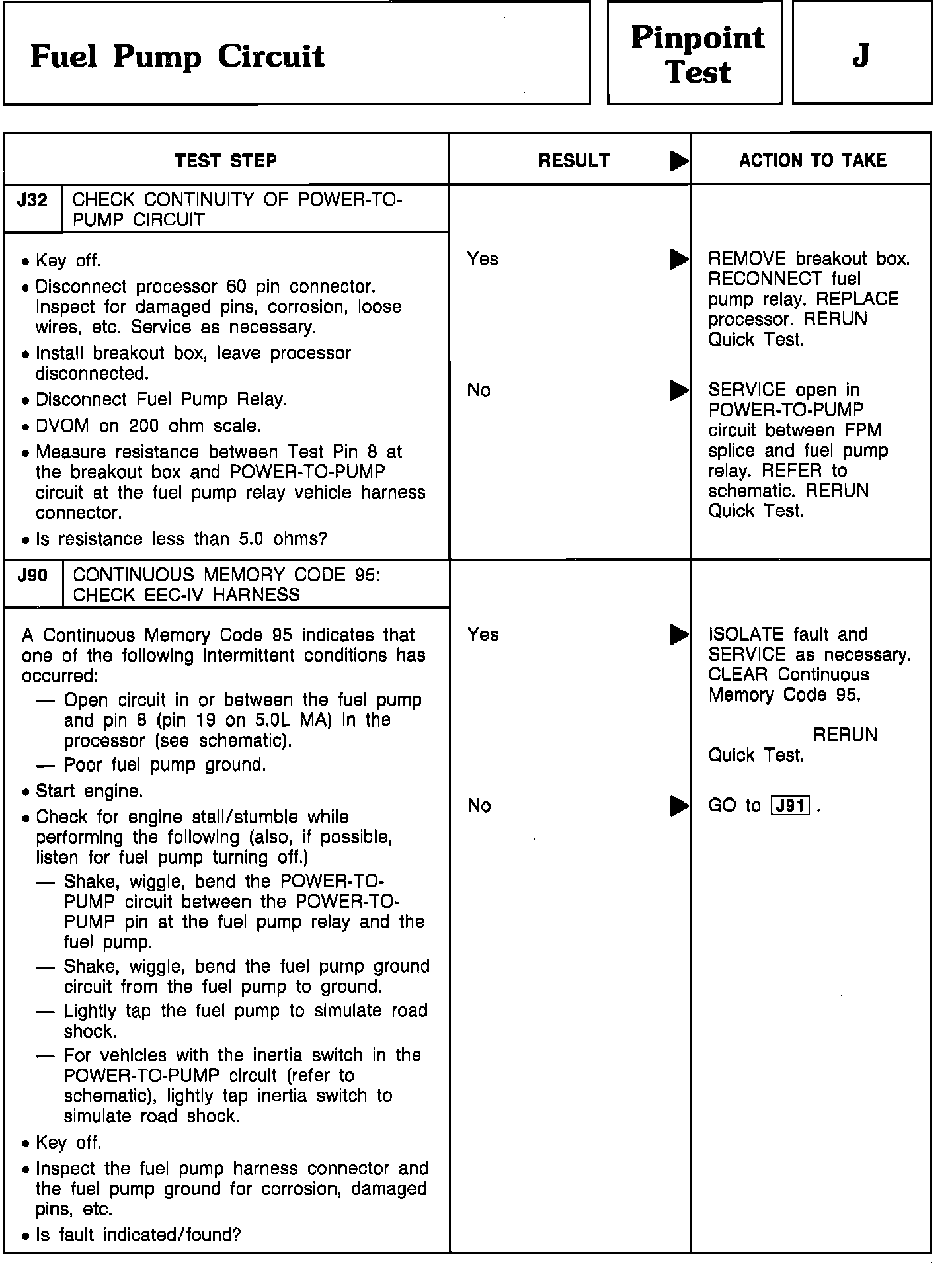

Pinpoint Test J32 & J90 - Fuel Pump Circuit:
