Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KR - Converter Clutch Override/Shift Solenoid 3/4-4/3
>>
KR1 - KR4
KR1 - KR4

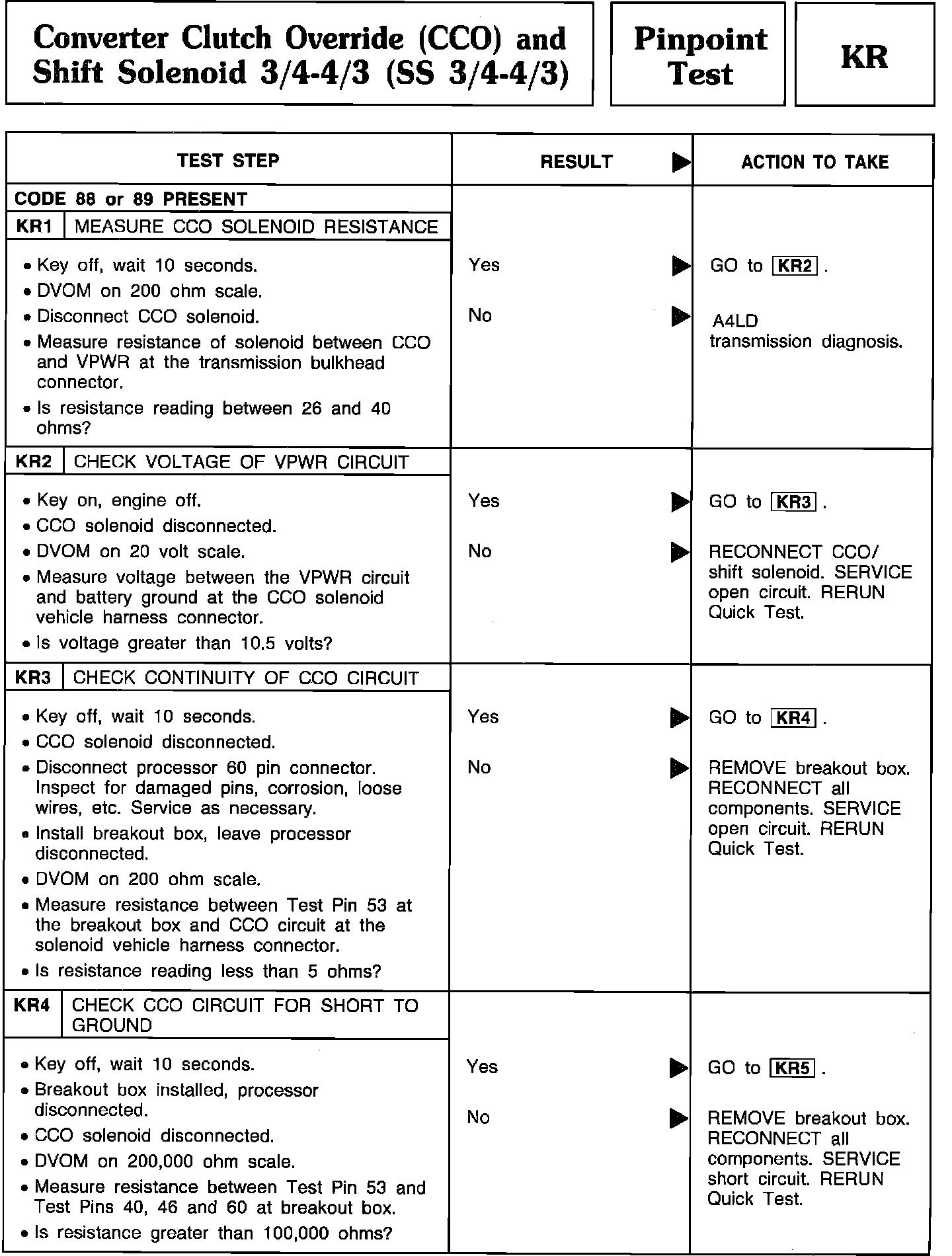

Pinpoint Test KR1 Thru KR4 - Converter Clutch Override (CCO)/Shift Solenoid 3/4-4/3 (SS 3/4-4/3):
