QE - RE-Initialization Check
>>
QE - Wiring Diagram
QE - Wiring Diagram

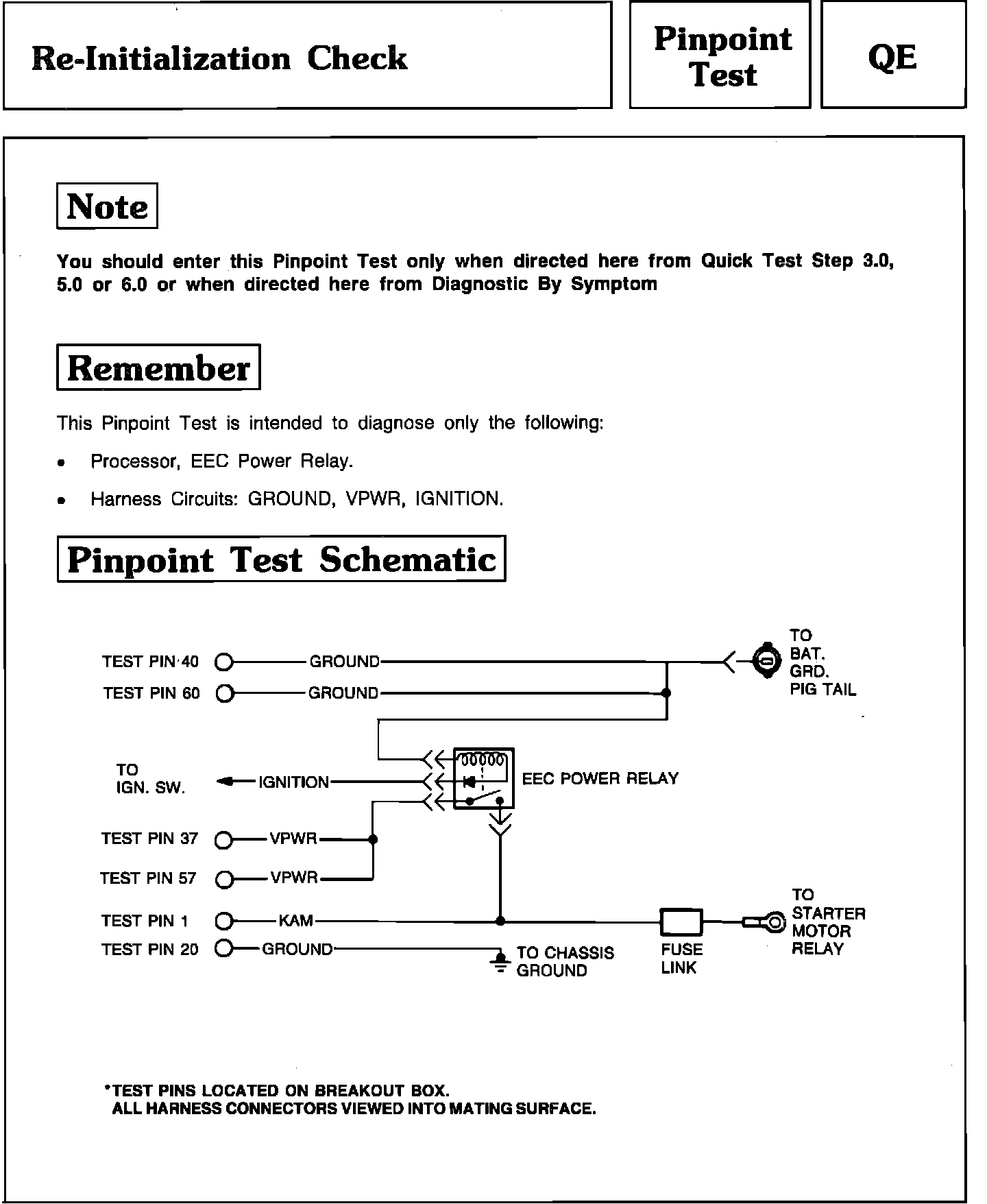

Pinpoint Test QE - Re-Initialization Check:
