Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X16 - X21
X16 - X21

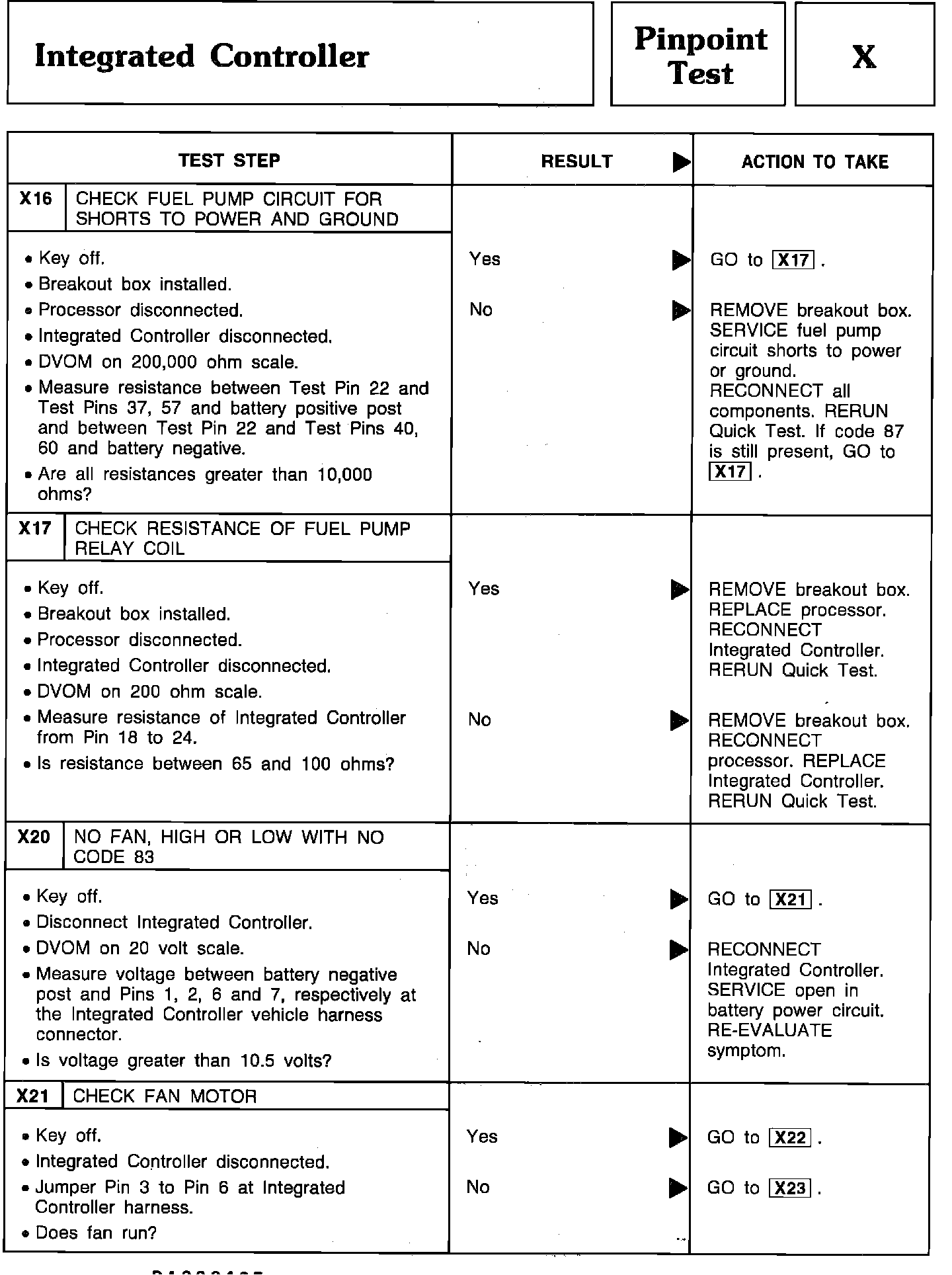

Pinpoint Test X16 Thru X21 - Integrated Controller:
