X - Integrated Relay Control Module
>>
X53 - X55
X53 - X55

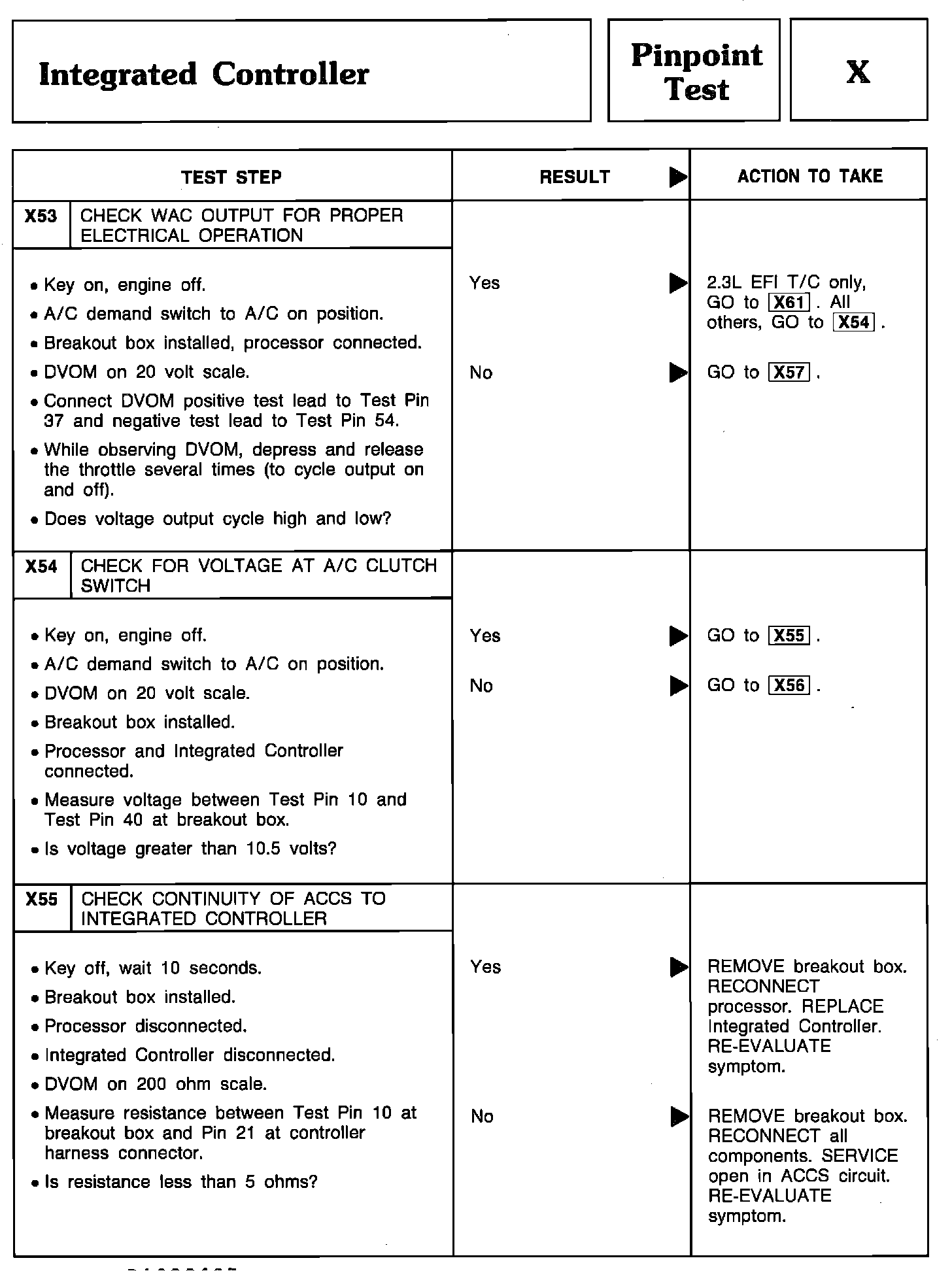

Pinpoint Test X53 Thru X55 - Integrated Controller:
