Front Differential

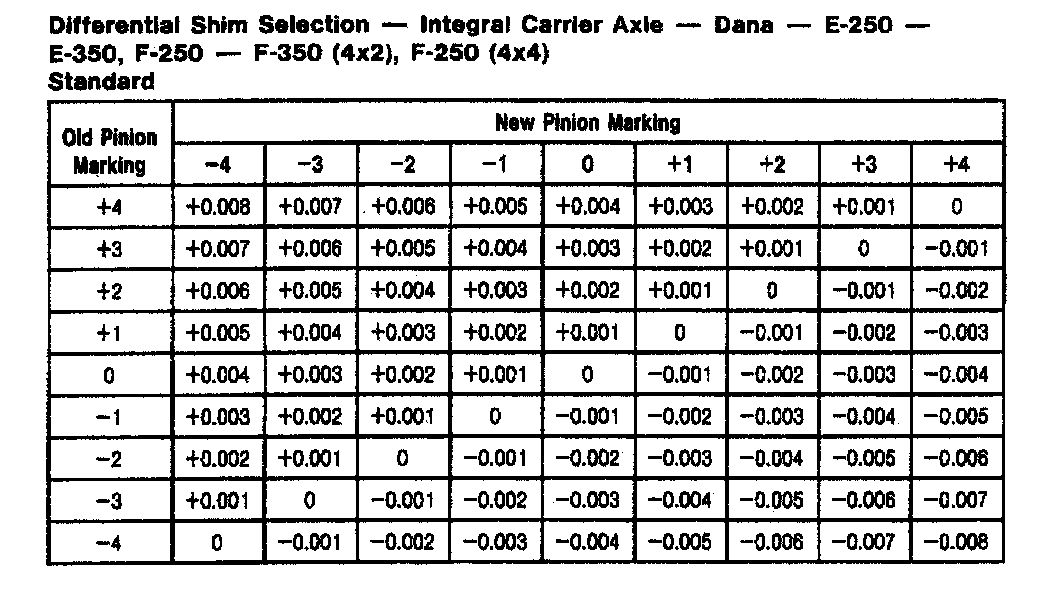

Dana 44 IFS HD, Differential Shim Chart:

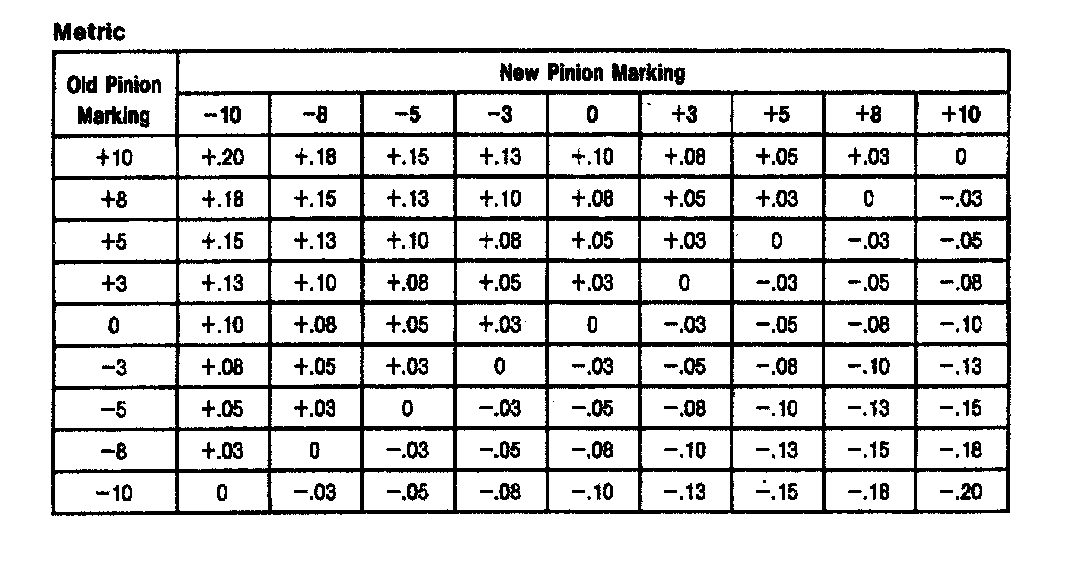

Dana 44 IFS HD, Differential Shim Chart:





Dana 44/50 IFS, Ring Gear Backlash:
