Home >> Ford >> 1988 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Deceleration Valve >> Testing and Inspection >> DEC-6 A/C Switch Function

DEC-6 A/C Switch Function

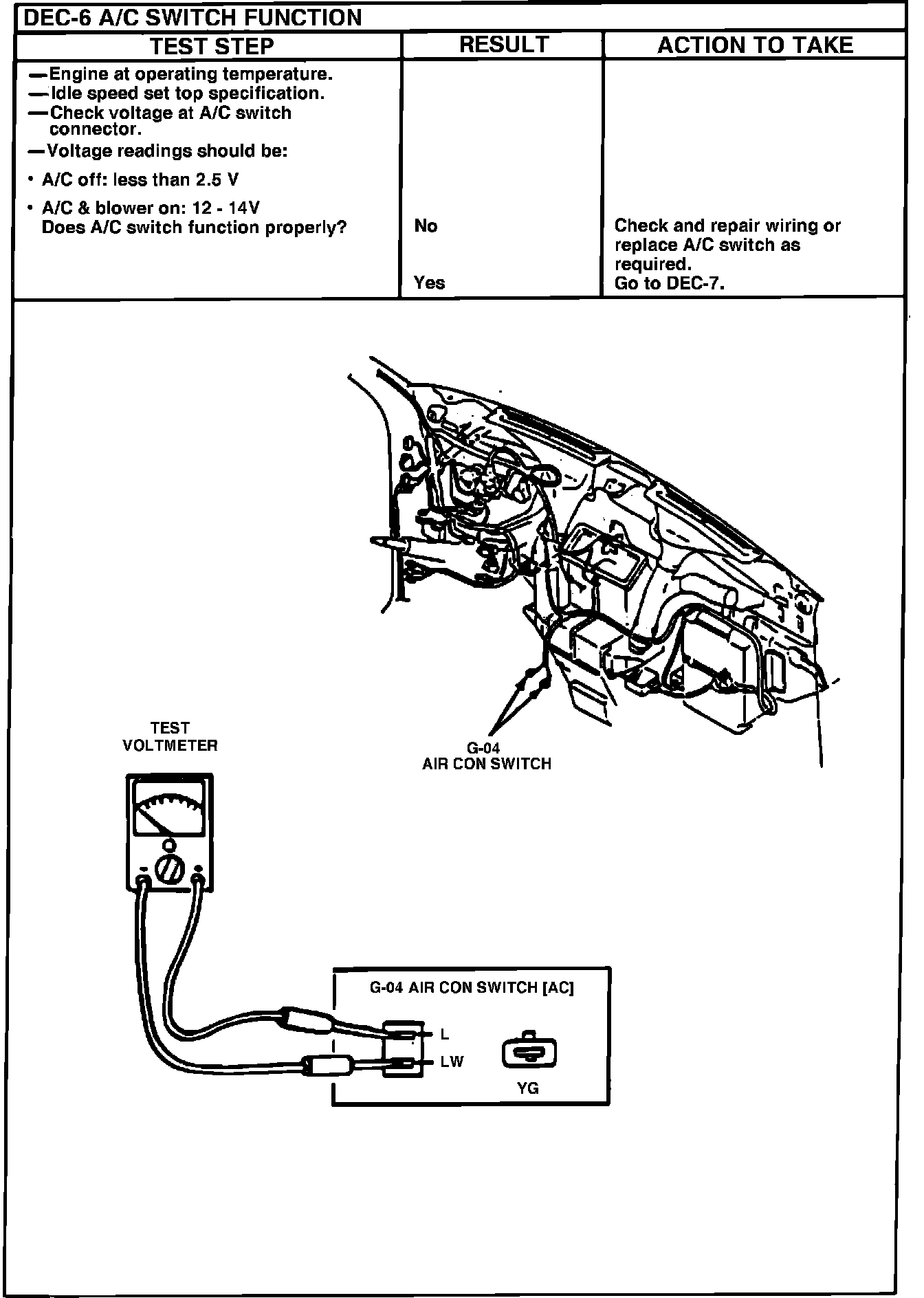

Fig. 8 Deceleration control system diagnosis (Part 6 of 9):
