Engine Control Module: Locations

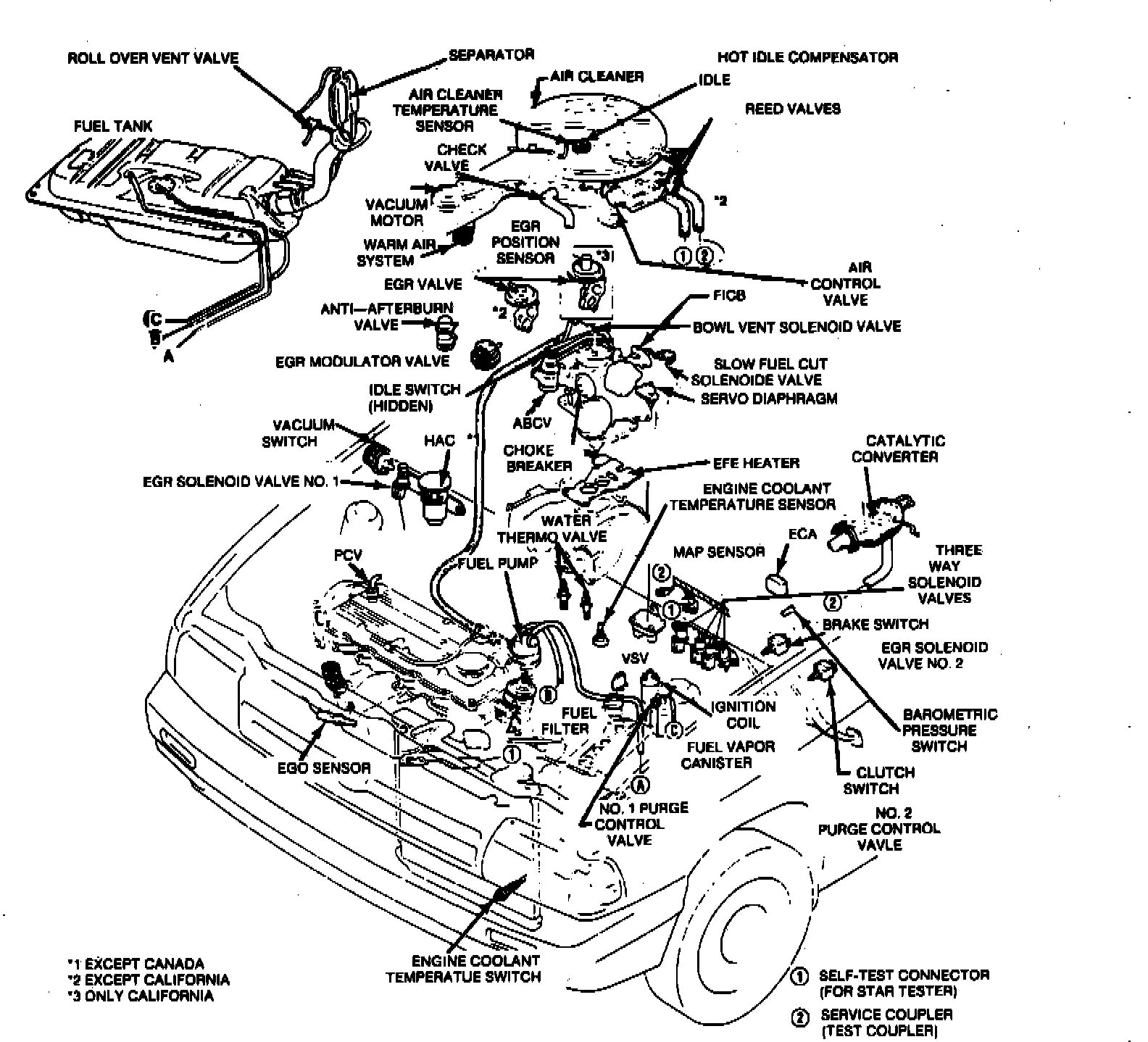

Engine Compartment Emission System Component Locations:

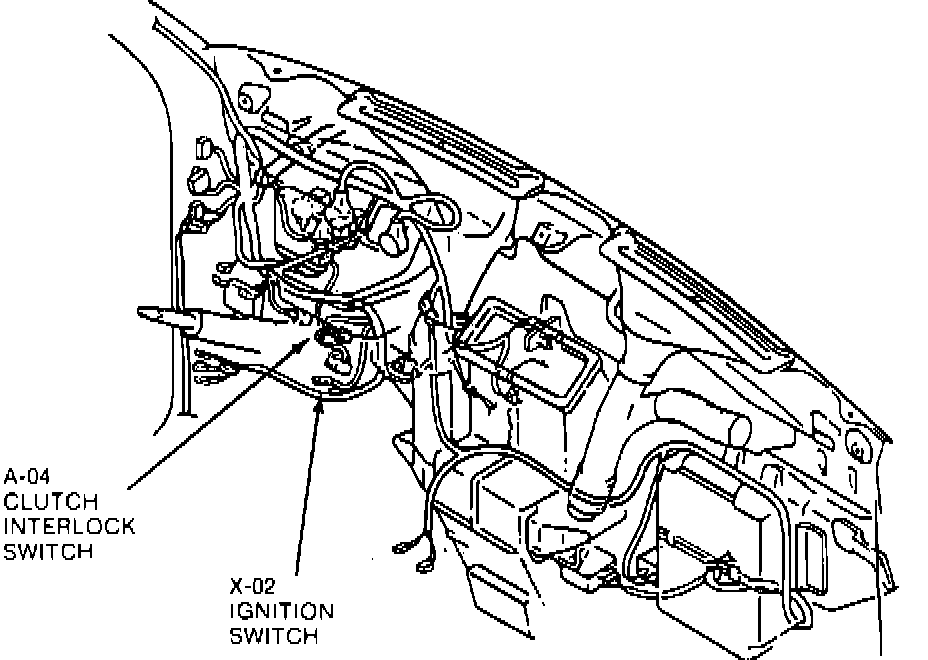

Instrument Panel, Component & Connector Location (Part 1 Of 9):

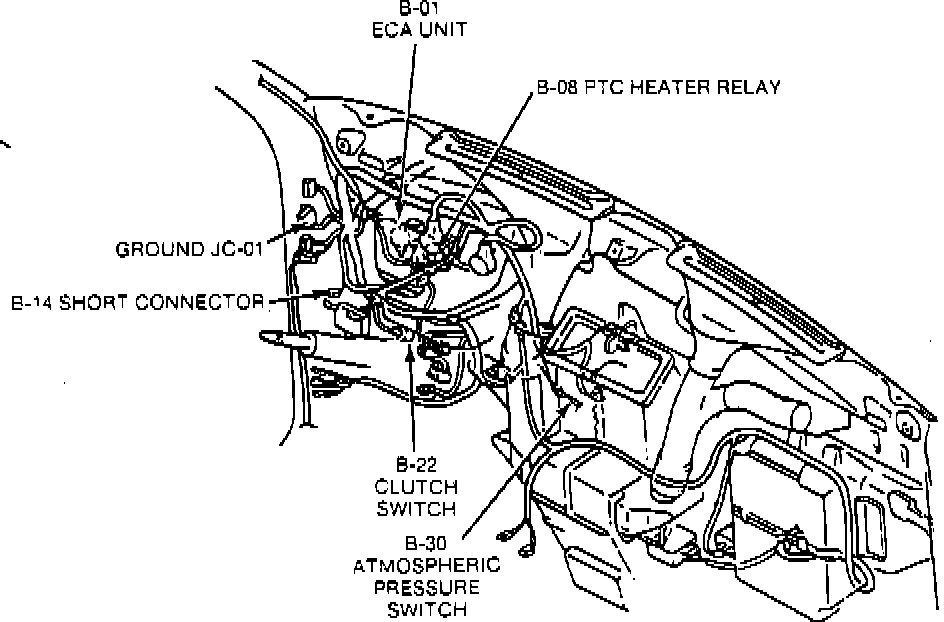

Instrument Panel, Component & Connector Location (Part 1 Of 9):

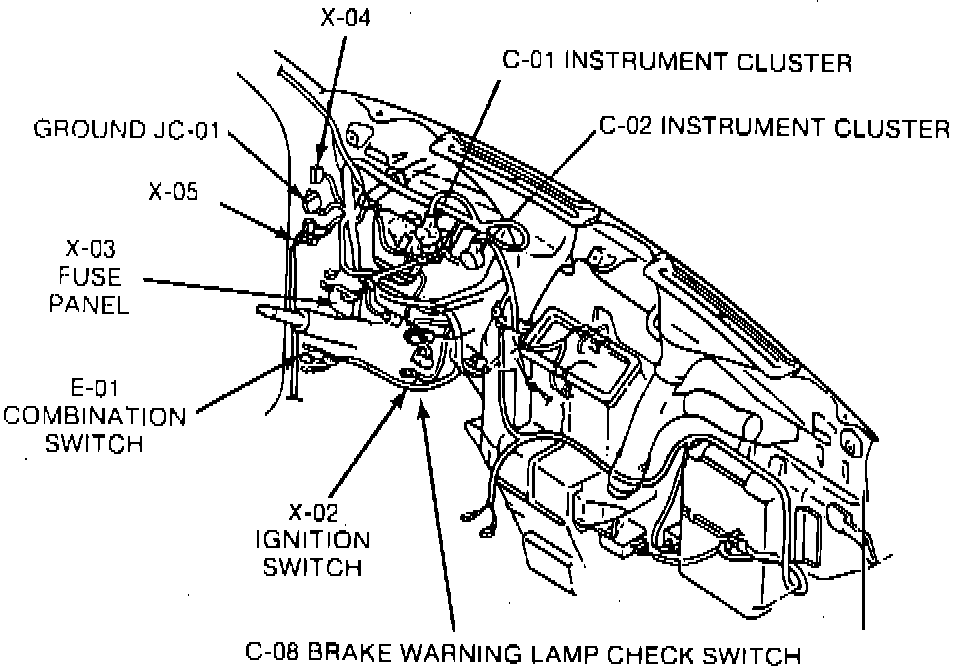

Instrument Panel, Component & Connector Location (Part 1 Of 9):

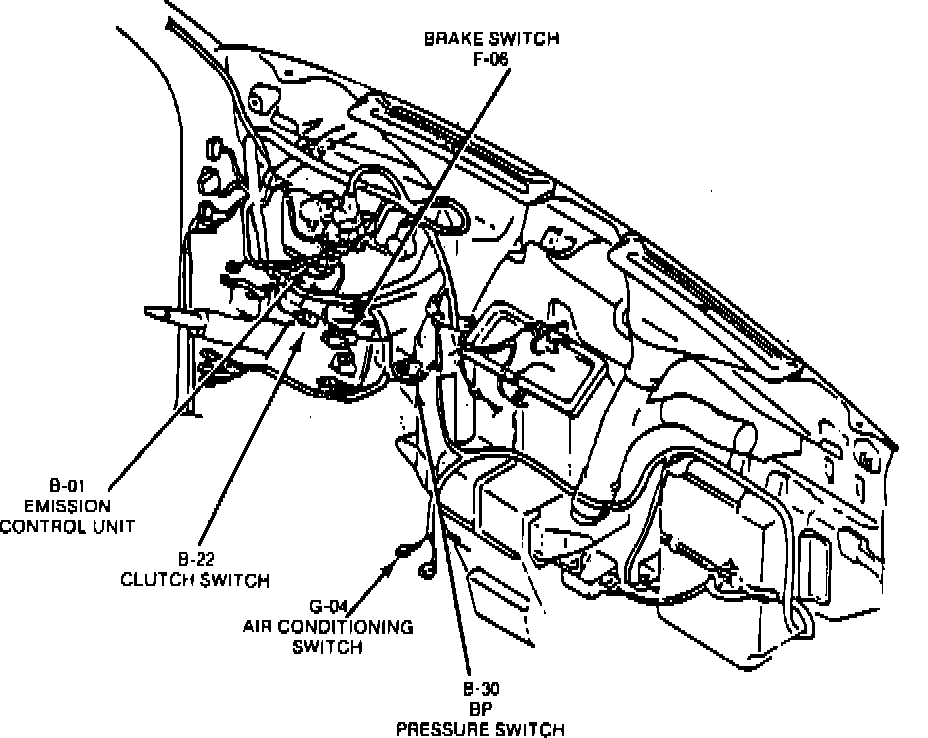

Instrument Panel, Component & Connector Location (Part 1 Of 9):

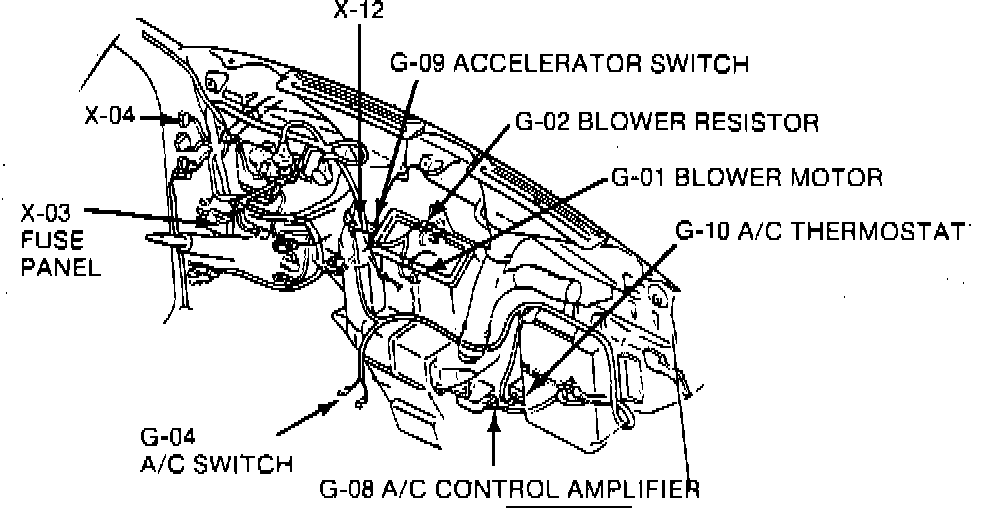

Instrument Panel, Component & Connector Location (Part 1 Of 9):

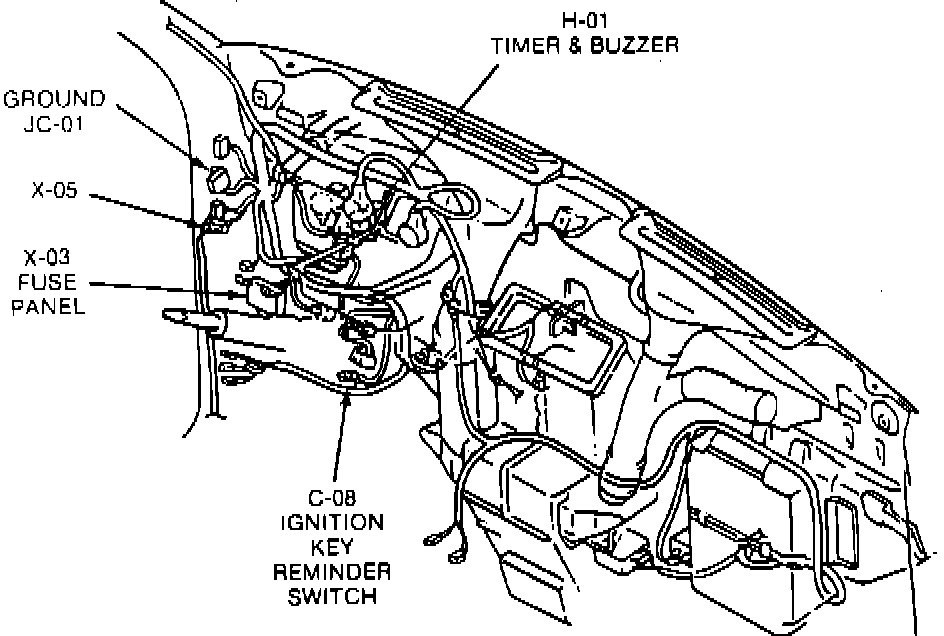

Instrument Panel, Component & Connector Location (Part 1 Of 9):

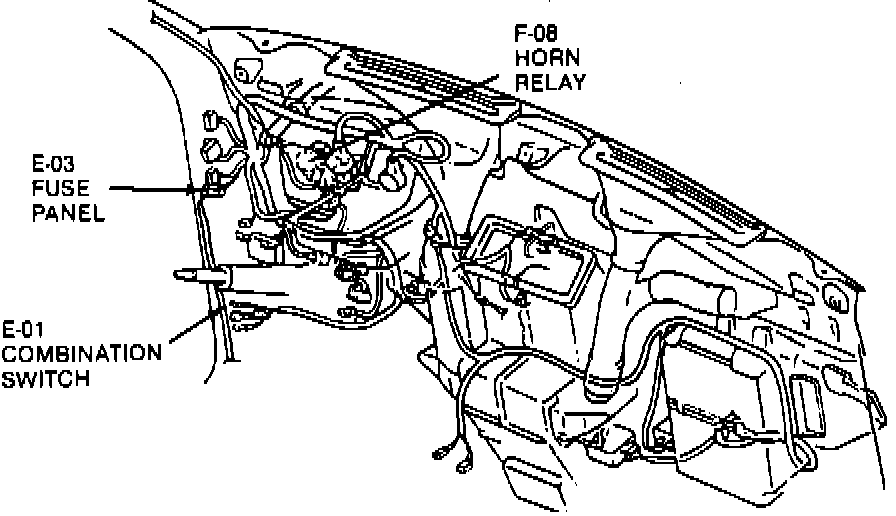

Instrument Panel, Component & Connector Location (Part 1 Of 9):




Instrument Panel, Component & Connector Location (Part 1 Of 9):




LH Rear Of Engine Compartment
