Engine Controls

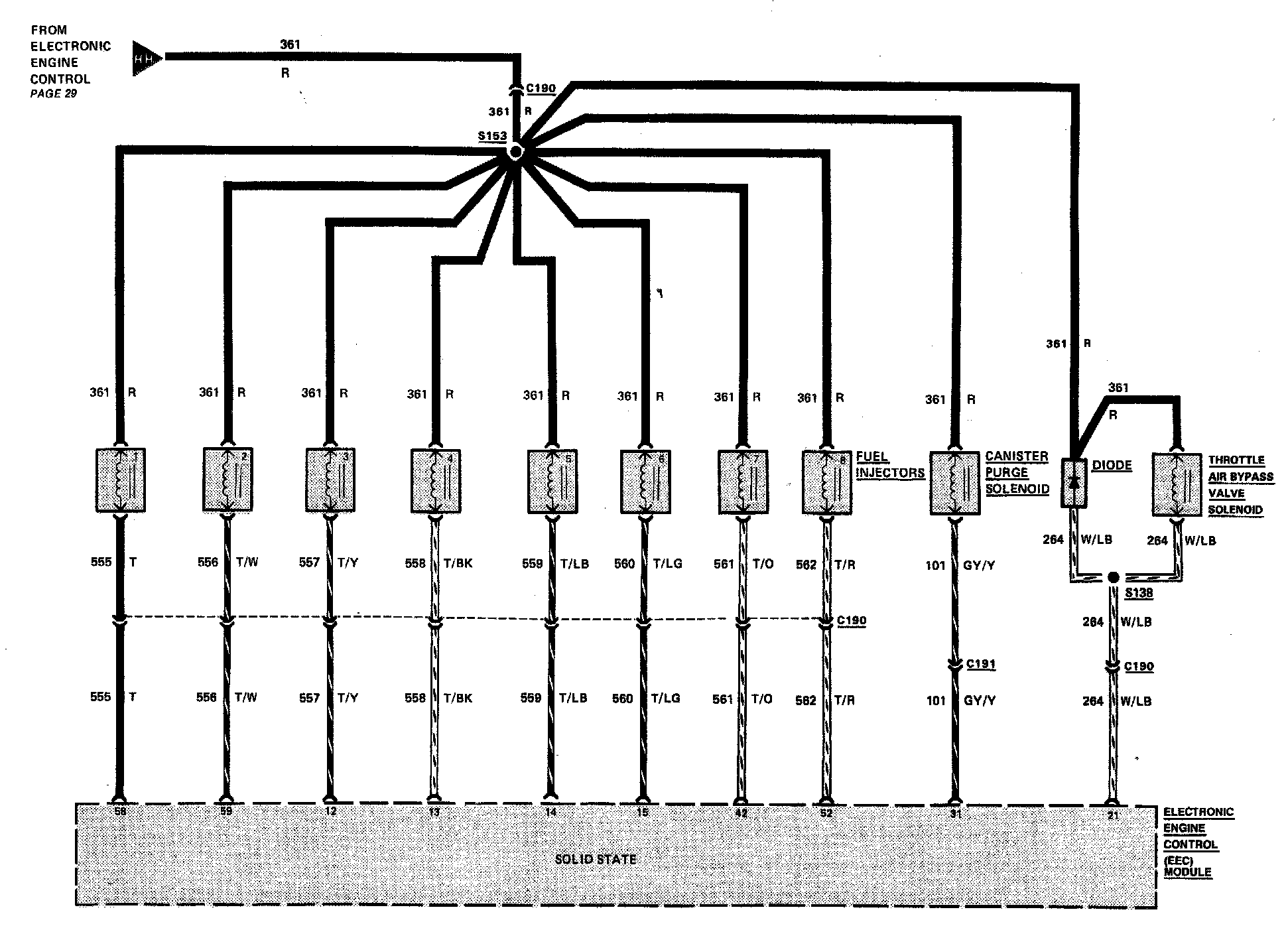

Electronic Engine Control Wiring Circuit:

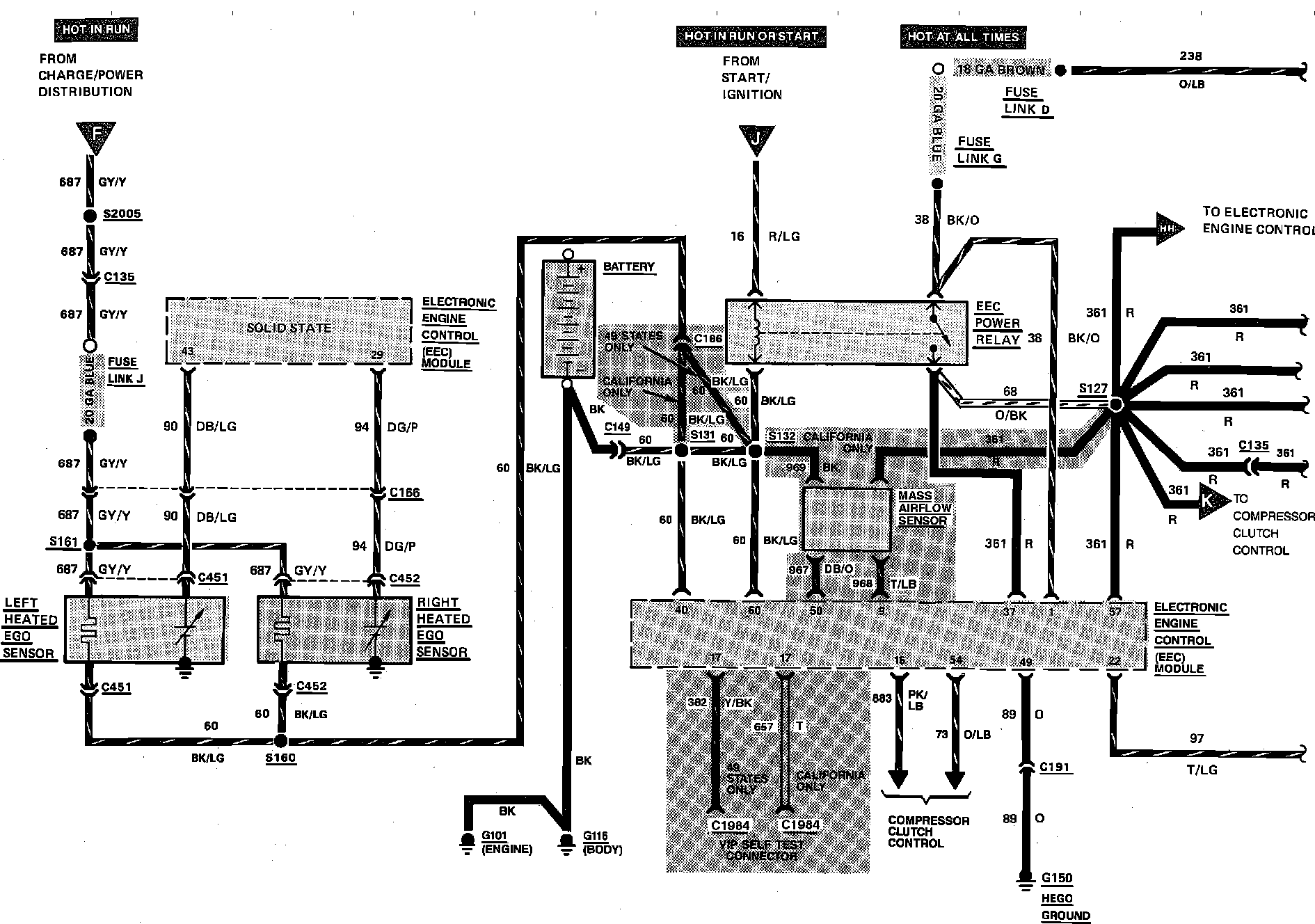

Electronic Engine Control Wiring Circuit:






Part 3 of 4:






Engine Electronic Control (5.0L):
