Home >> Ford >> 1988 >> Ranger 2WD L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

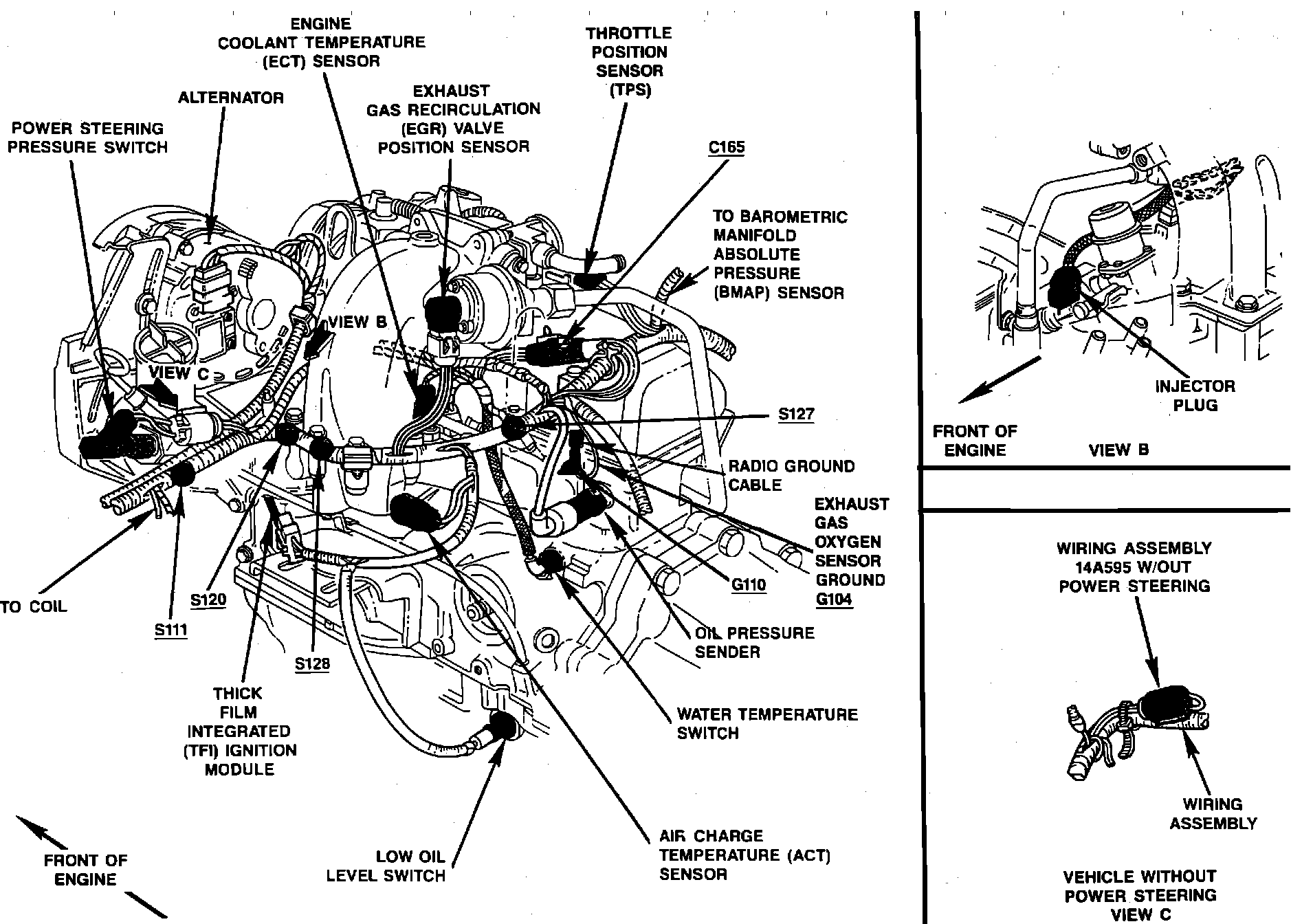

Coolant Temperature Sensor/Switch (For Computer): Locations

LH Side.:




Top Of Engine

Applicable to: 4-140/2.3L Engine
