Home >> Ford >> 1988 >> Ranger 4WD V6-177 2.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls

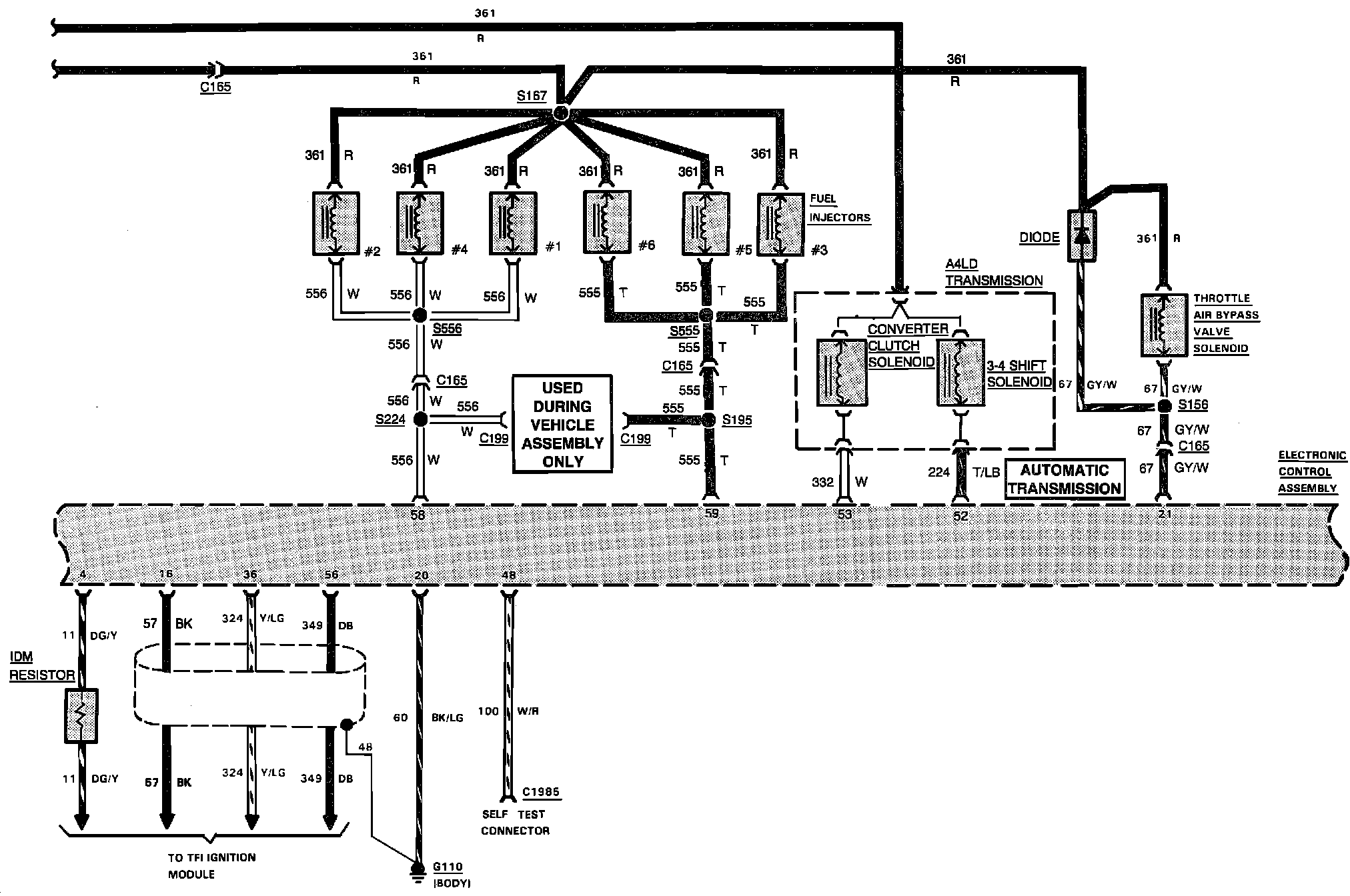

Engine Controls

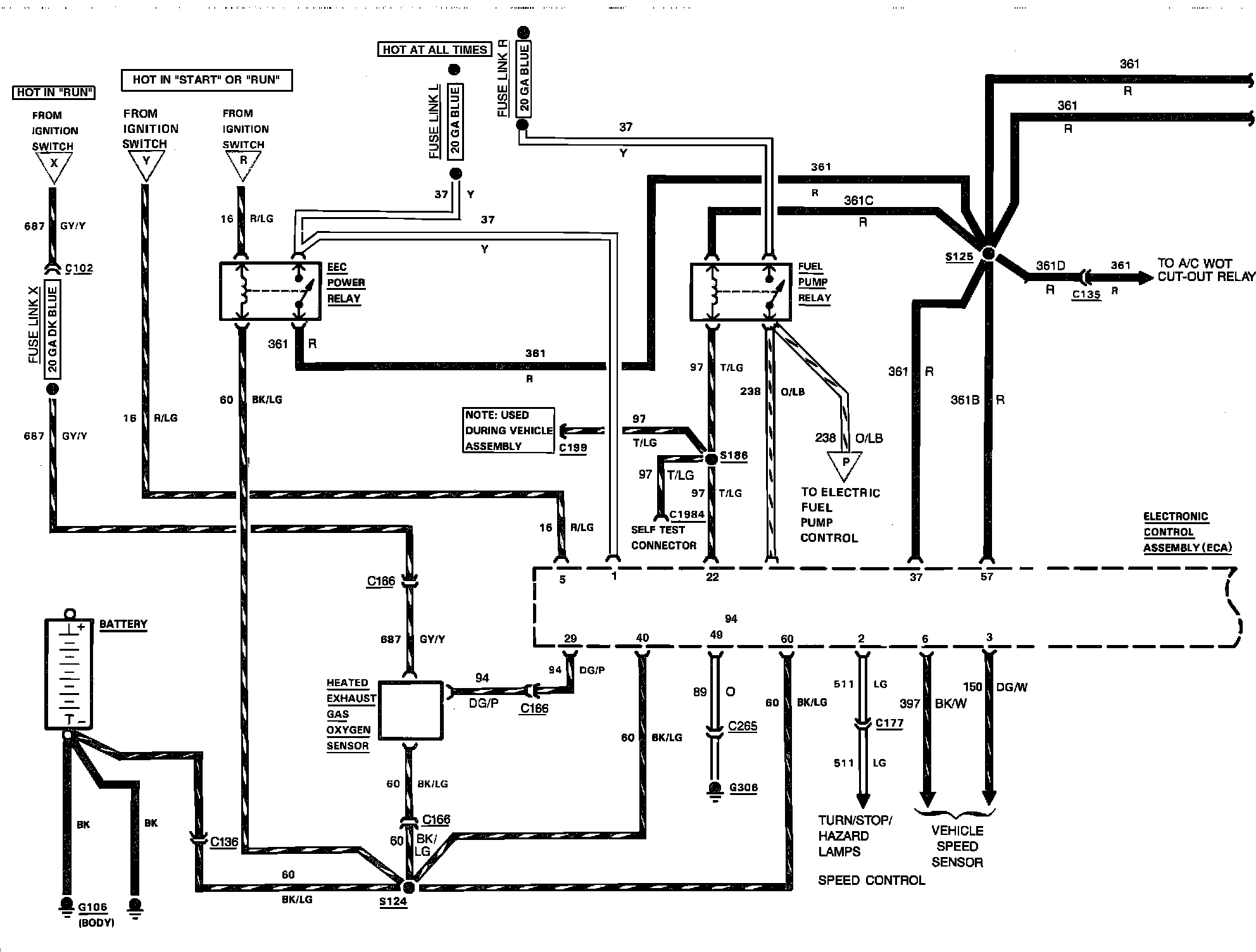

Part 2 Of 3:

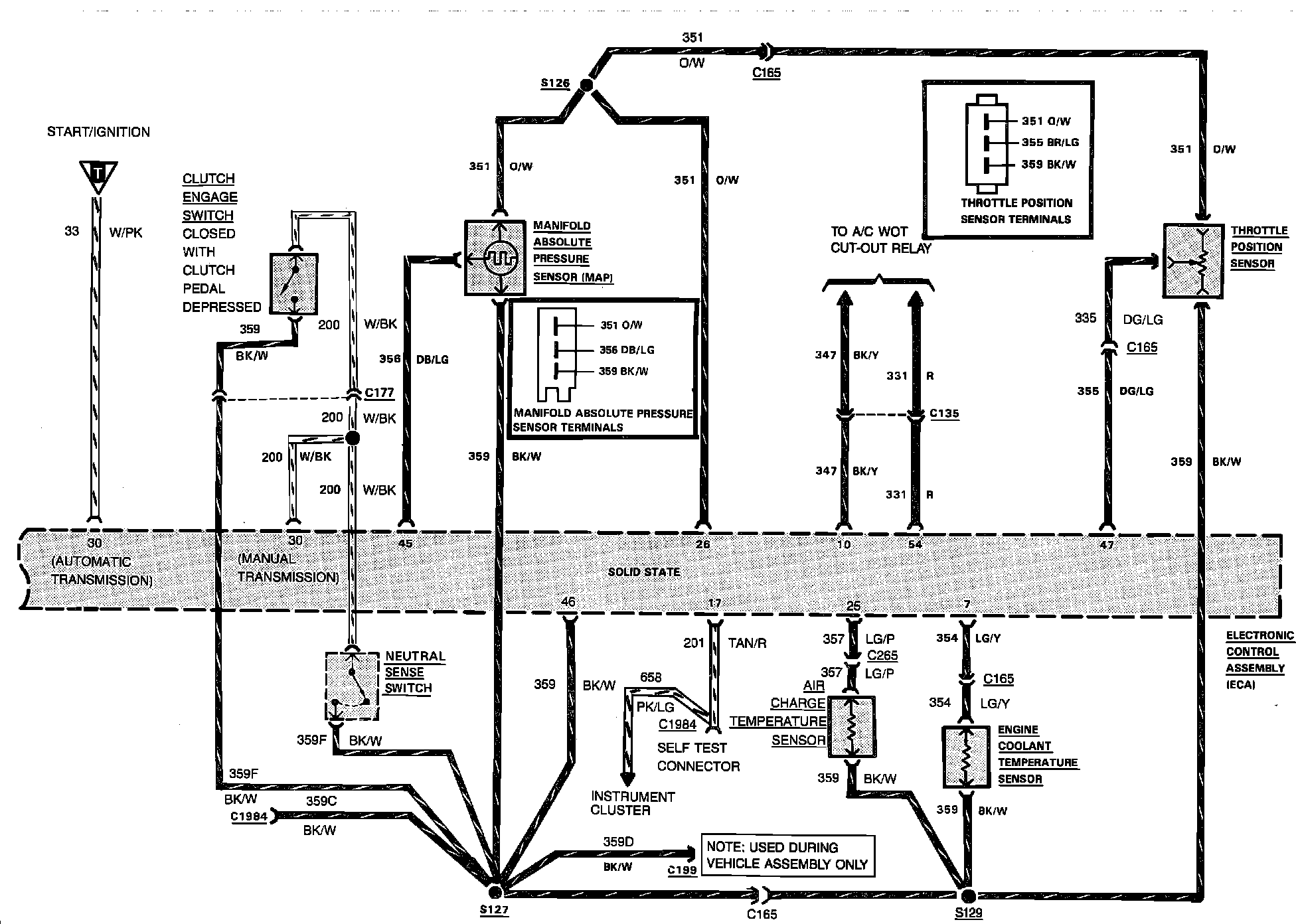

Part 3 Of 3:
