Cruise Control Brush Assembly: Service and Repair

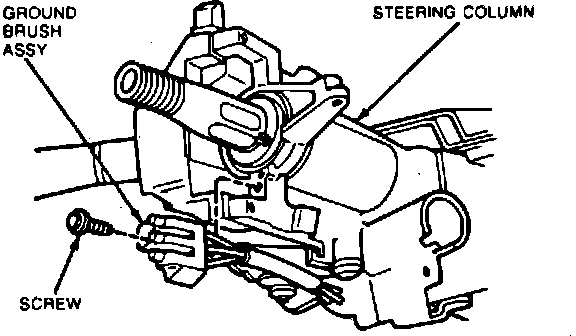

Fig. 11 Ground brush removal:

Removal
1. Remove steering wheel hub horn pad cover by removing two screws from back of steering wheel.
2. Remove and discard steering wheel attaching nut.
3. Remove steering from upper shaft by grasping rim of steering wheel and pulling off. Do not use steering wheel puller.
4. Remove tilt lever, if so equipped.
5. Remove ignition lock cylinder and steering column lower trim shroud.
6. Separate speed control brush wire harness at connector and remove wire retainers from steering column.
Installation
1. Position brush assembly wire on upper on upper steering column and secure with one screw.
2. Install wire harness into steering column with attached retainers. Connect harness to main wiring, Fig. 11.
3. Attach lower trim shroud to upper shroud with three retaining screws.
4. Install ignition lock cylinder.
5. Position steering wheel on end of steering wheel shaft. Align index mark on wheel with index mark on shaft.
6. Install a new steering wheel nut. Torque to 50---60 ft. lbs.
7. Install steering wheel horn pad.
