Cruise Control Servo Cable: Adjustments

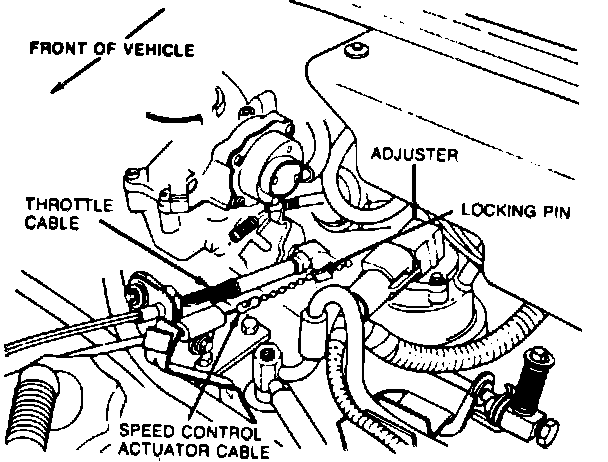

Fig. 4 Actuator cable. 2.5L engine:
4-153 (2.5L) Engine
1.
Remove locking pin,
Fig. 4. 2.
Pull bead chain through adjuster.
3.
Insert locking pin in best hole of adjuster for tight bead chain without opening throttle plate.
