Cruise Control Servo: Service and Repair

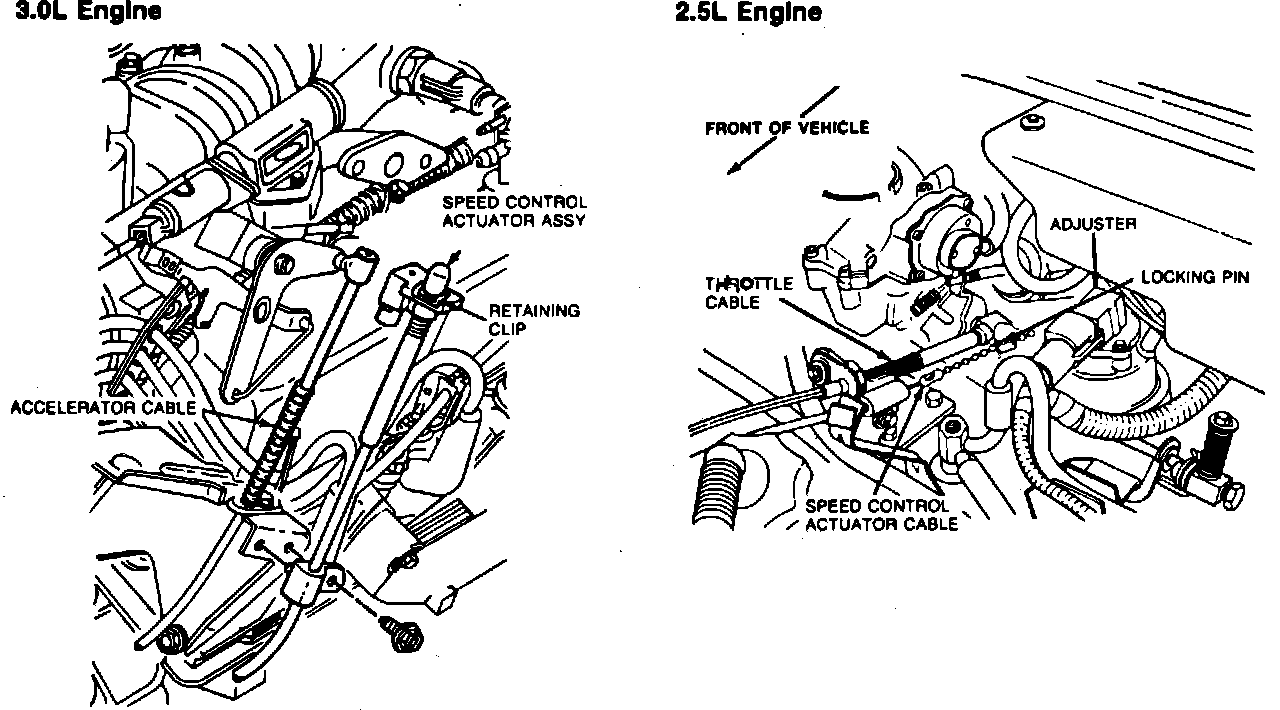

Fig. 6 Disconnecting speed control actuator cable:

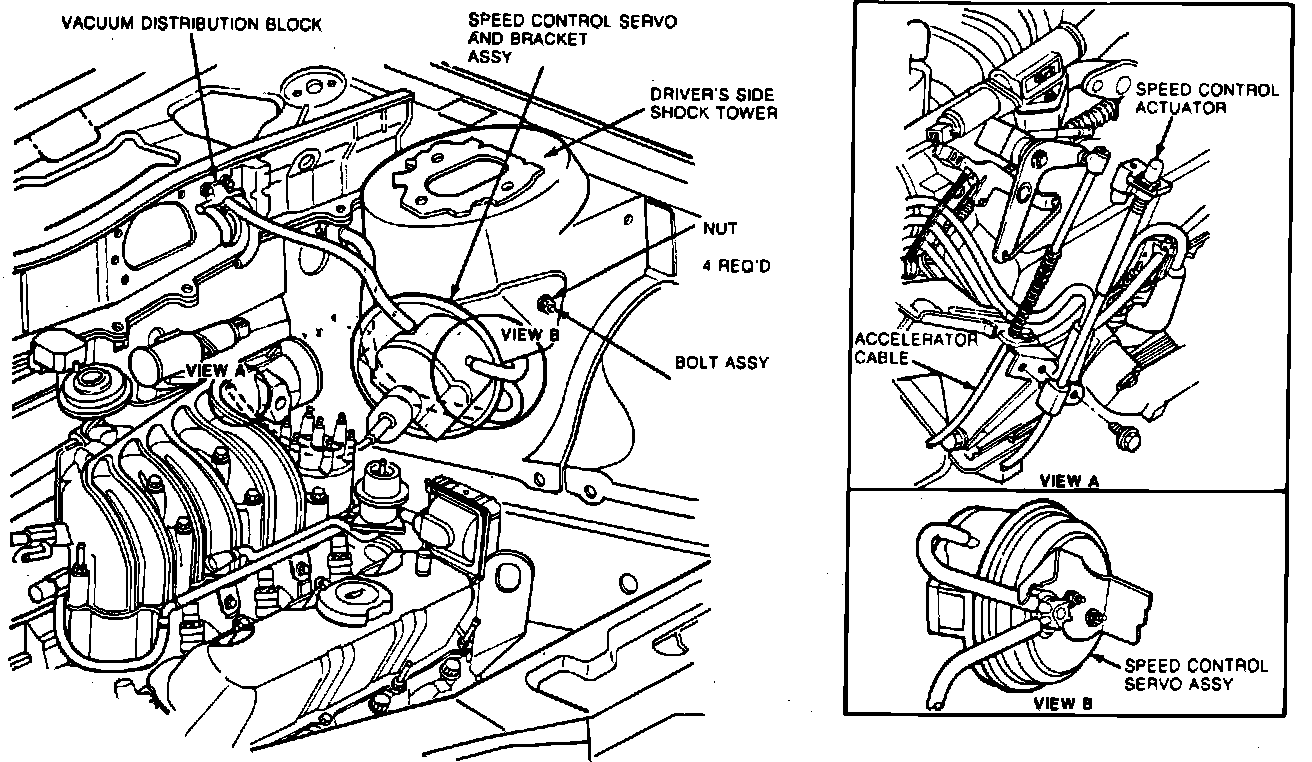

Fig. 7 Servo assembly electrical & vacuum connections:

Removal
1. Remove screw and disconnect speed control actuator cable, Fig. 6, from accelerator cable bracket.
2. Disconnect speed control actuator cable with adjuster from accelerator cable.
3. Remove two vacuum hoses and electrical connector from servo assembly, Fig. 7.
4. Remove two nuts holding servo to mounting bracket.
5. Carefully remove servo and cable assembly.
6. Remove two nuts holding cable cover to servo.
7. Pull off cover and remove cable assembly.
Installation
1. Attach cable to servo.
2. Attach cable cover to servo with two nuts.
3. Attach servo to mounting bracket.
4. Feed actuator cable under cleaner air duct.
5. Snap actuator cable with adjuster onto accelerator cable.
6. Connect actuator cable to accelerator cable bracket and install push pin.
7. Install two vacuum hoses and electrical connector at servo.
