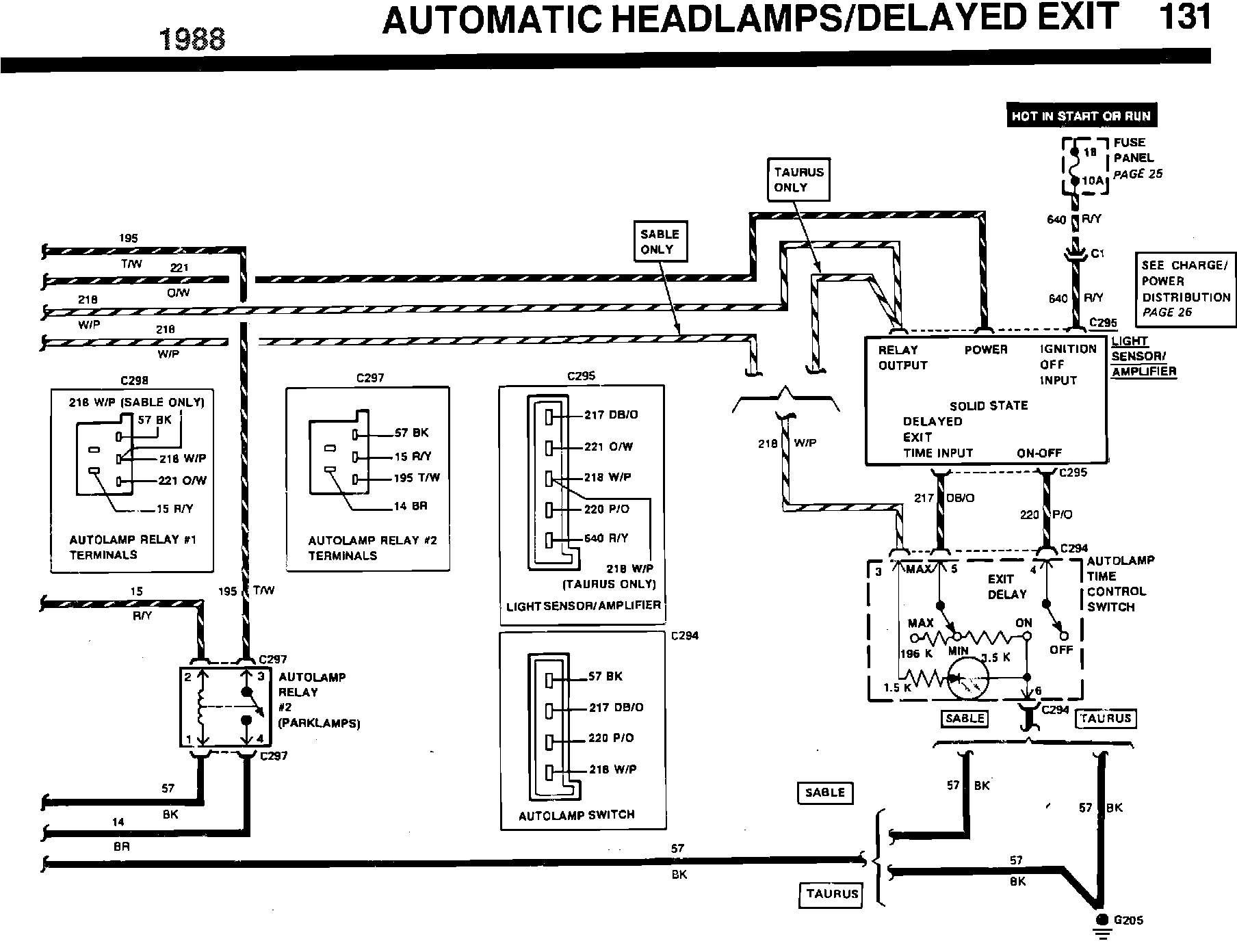

Automatic Headlamps/Delayed Exit - Revision


90ford14
ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL- 1988-PAGE 132-REFERENCE TO SHOP MANUAL

SECTION CORRECTED TO 32-02

Article No. 90-6B-29

FORD: 1988 TAURUS

LINCOLN-MERCURY: 1988 SABLE

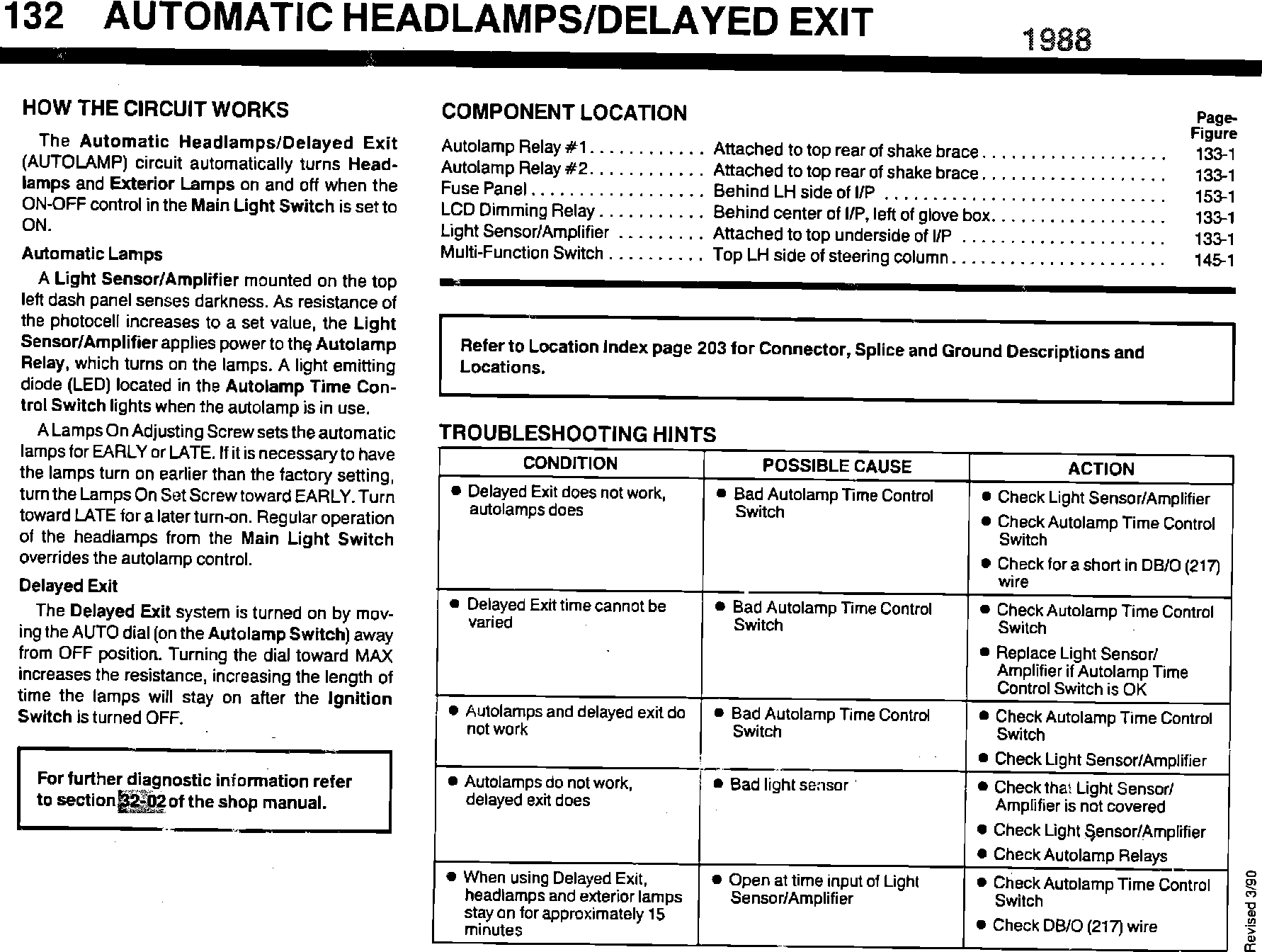

ISSUE: Page 132 of the 1988 Taurus/Sable EVTM incorrectly indicates a reference to Shop Manual Section 32-12. The correct section reference is Section 32-02 for further diagnostic information.

ACTION: Refer to the pages following this TSB article for the updated information.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
