KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB11 - KB14
KB11 - KB14

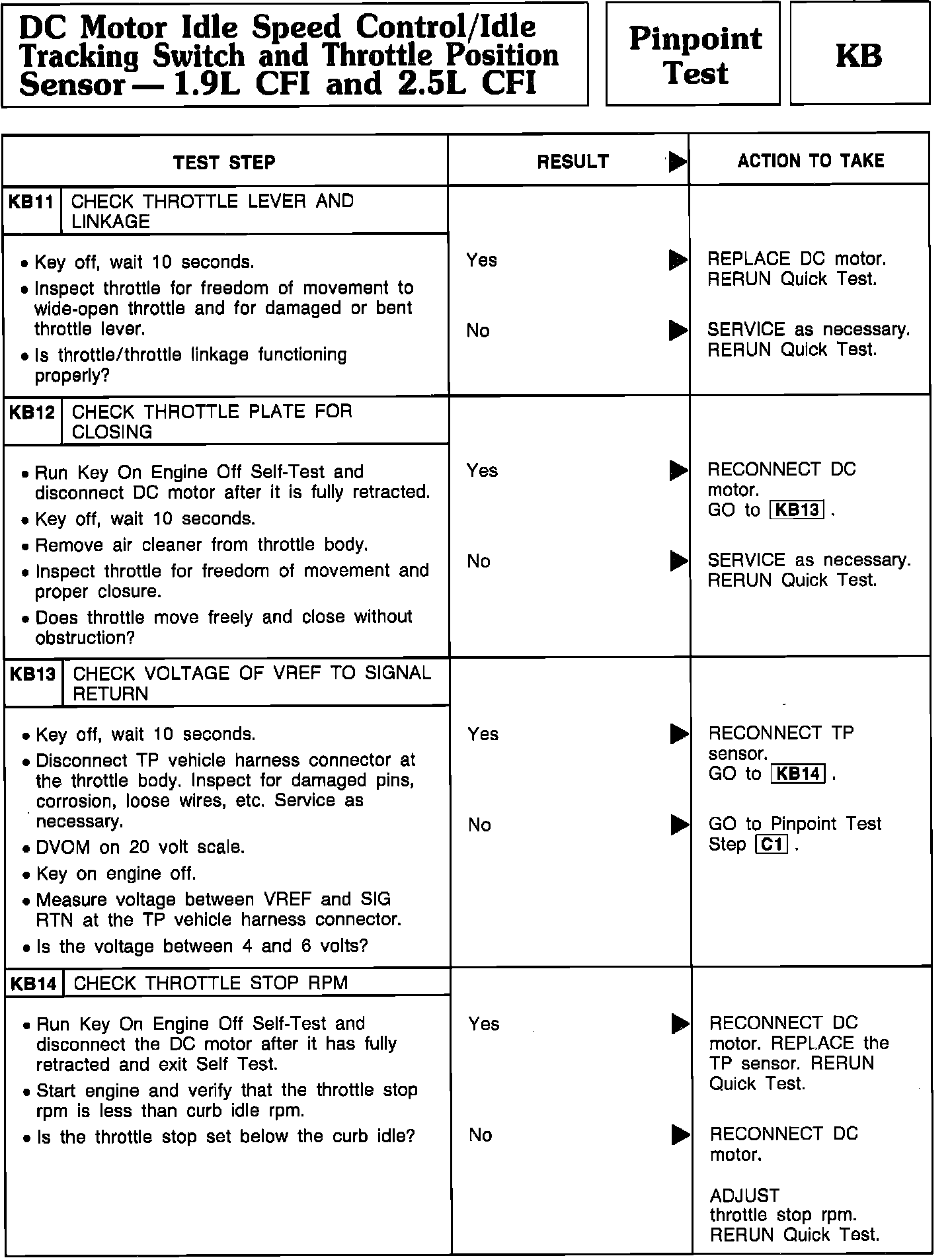

Pinpoint Test KB11 Thru KB14 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
