KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB18 - KB20
KB18 - KB20

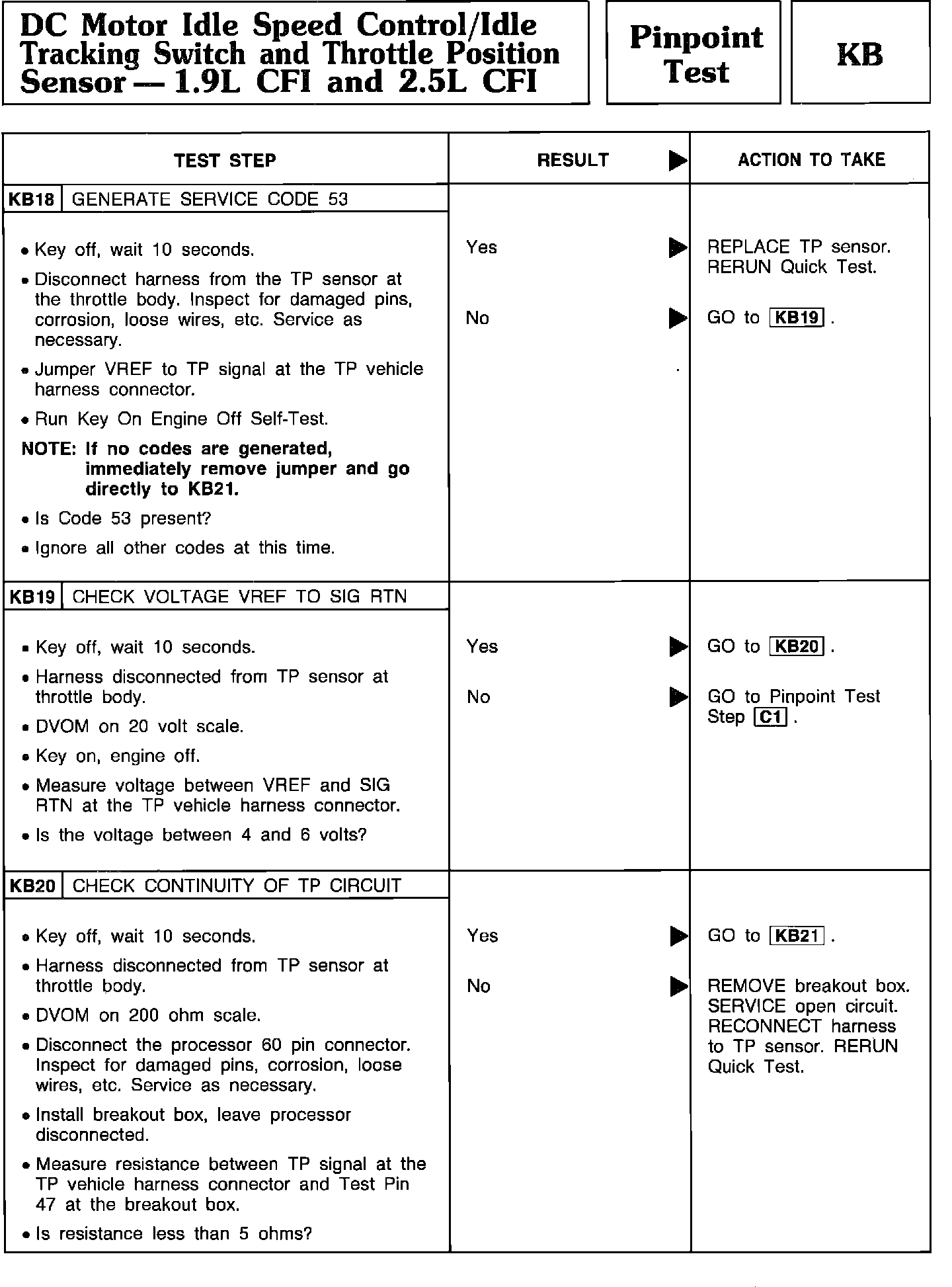

Pinpoint Test KB18 Thru KB20 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
