KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB21 - KB24
KB21 - KB24

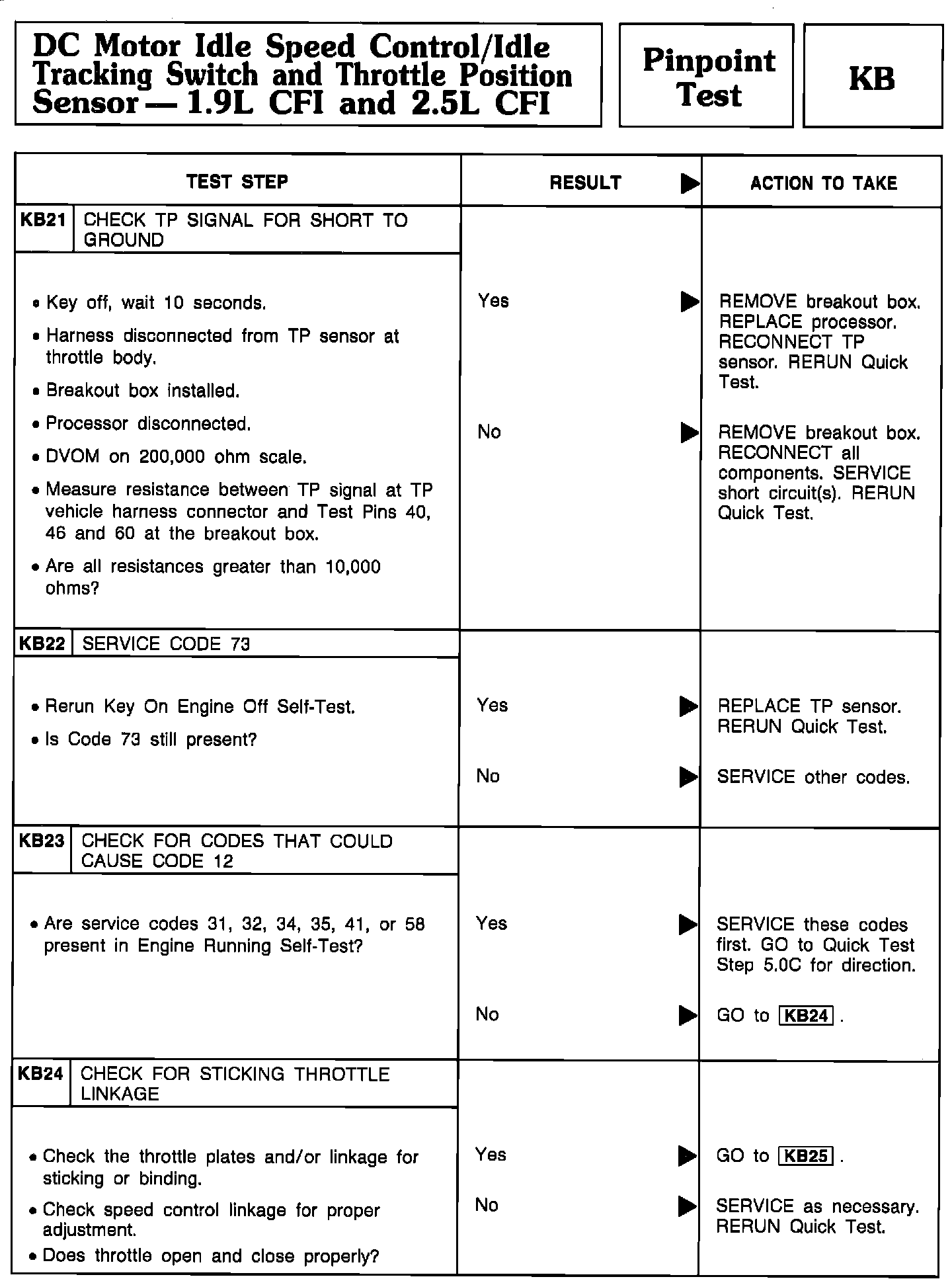

Pinpoint Test KB21 Thru KB24 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
