KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB25 - KB26
KB25 - KB26

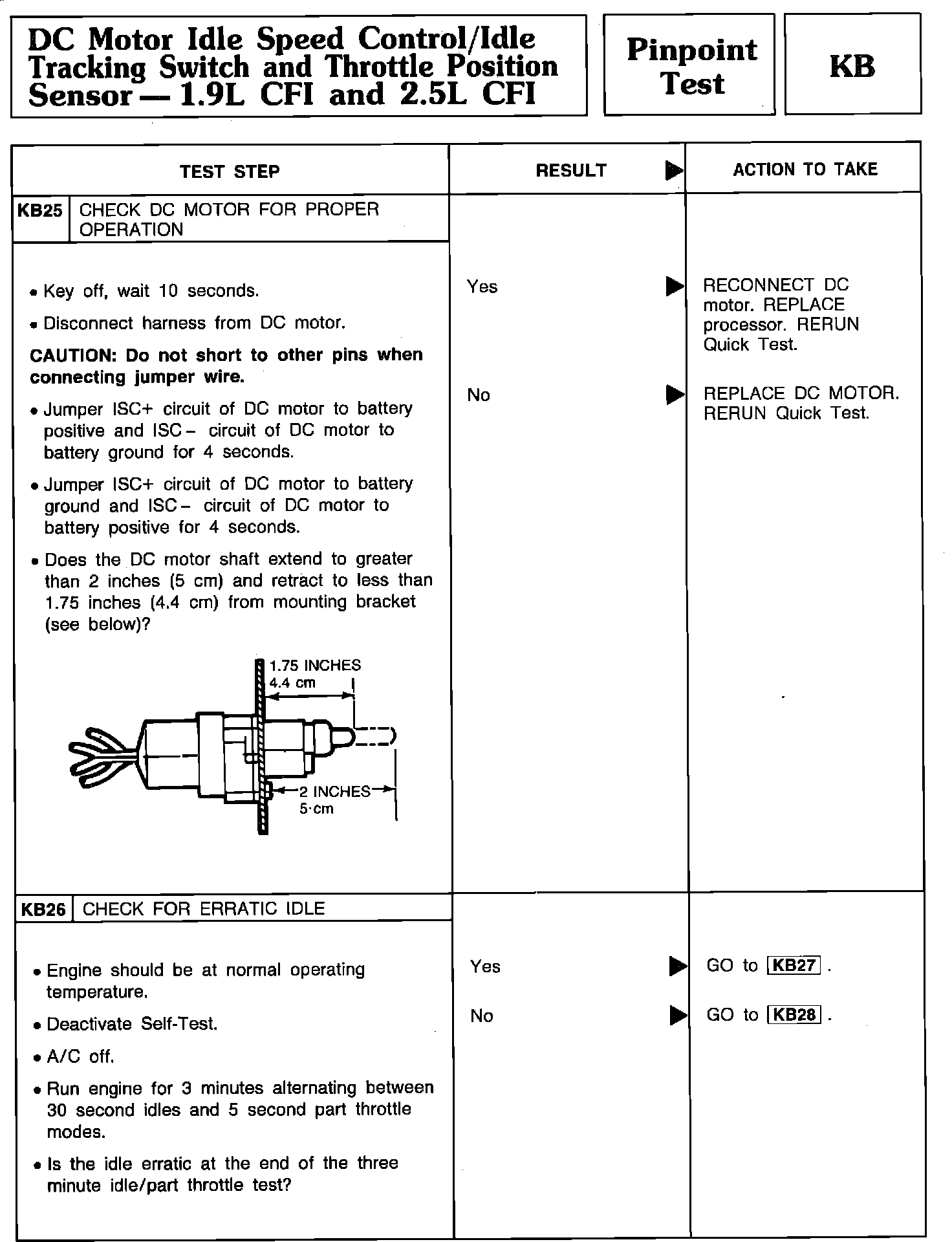

Pinpoint Test KB25 & KB26 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
