KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB30 - KB31
KB30 - KB31

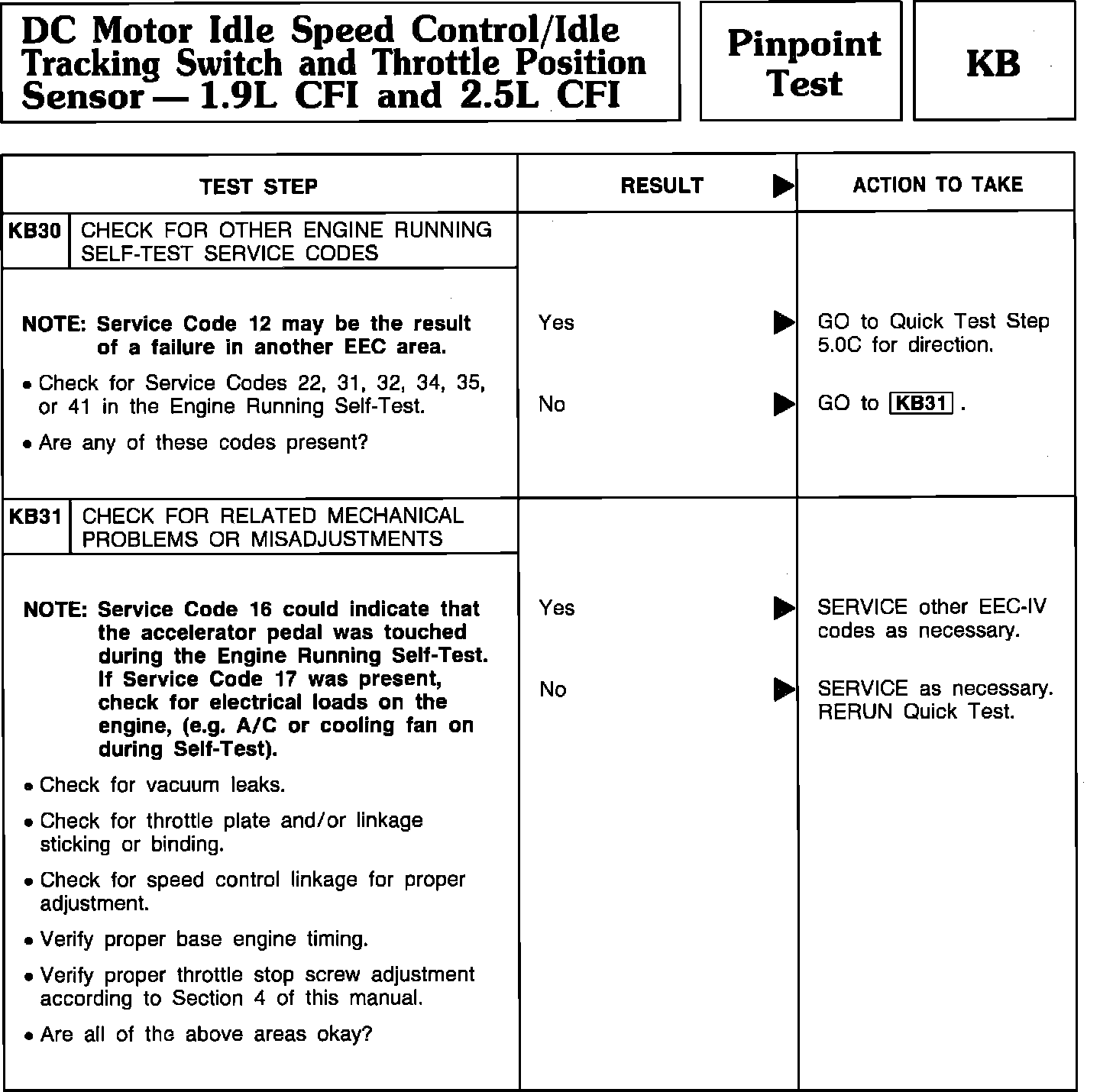

Pinpoint Test KB30 & KB31 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
