KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB5 - KB7
KB5 - KB7

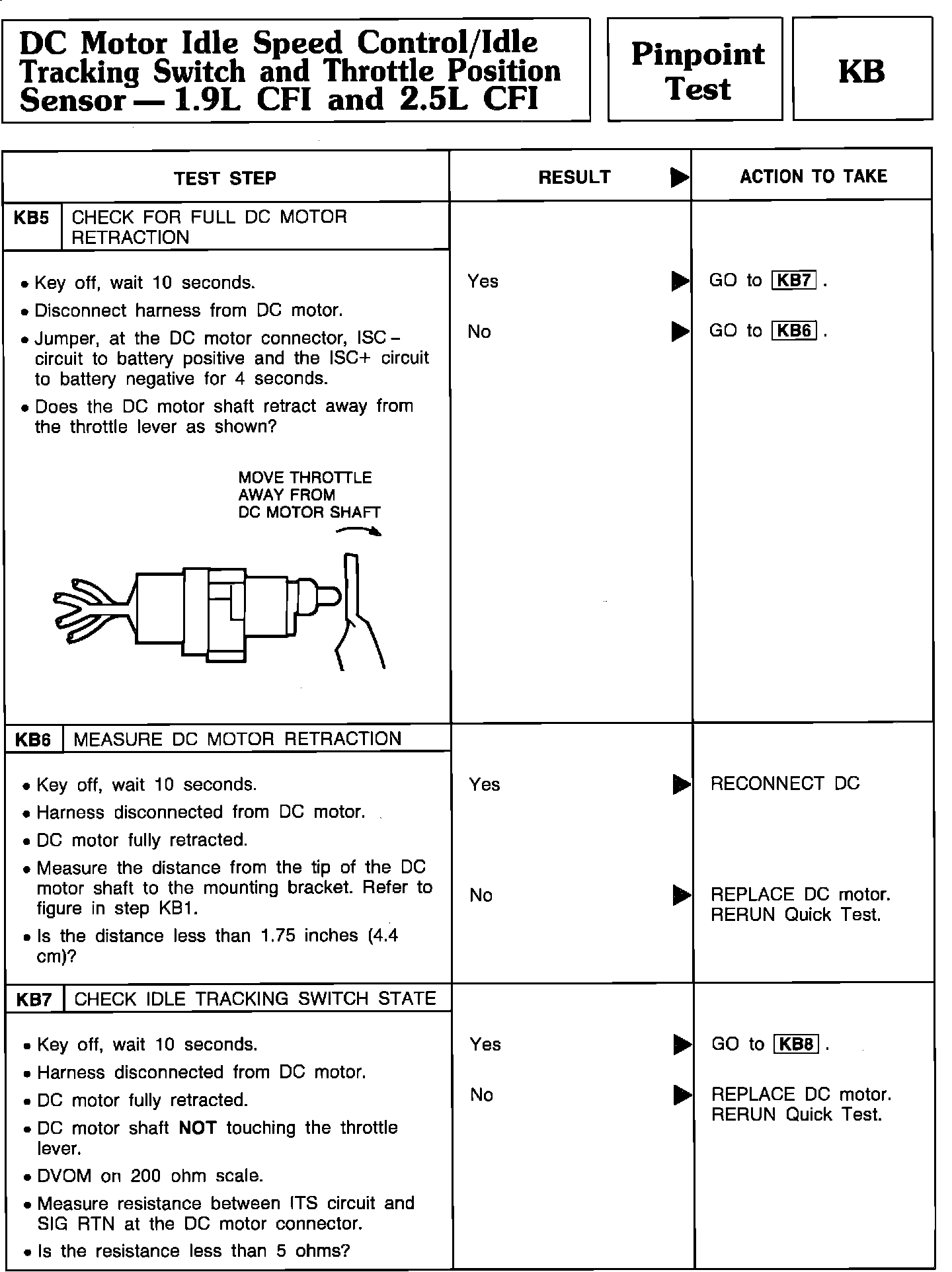

Pinpoint Test KB5 Thru KB7 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
