Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB93 - KB94
KB93 - KB94

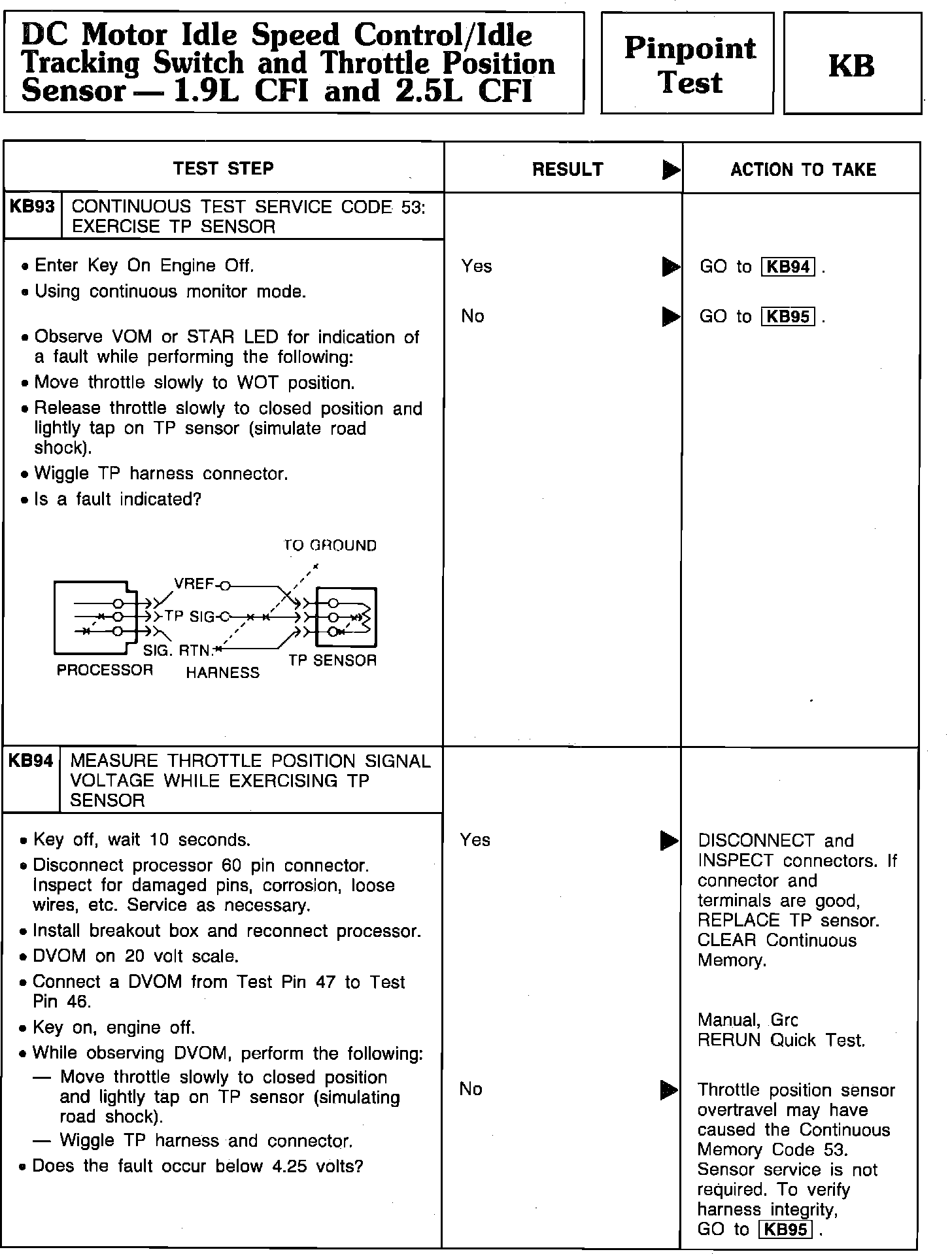

Pinpoint Test KB93 & KB94 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
