KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB95 - KB97
KB95 - KB97

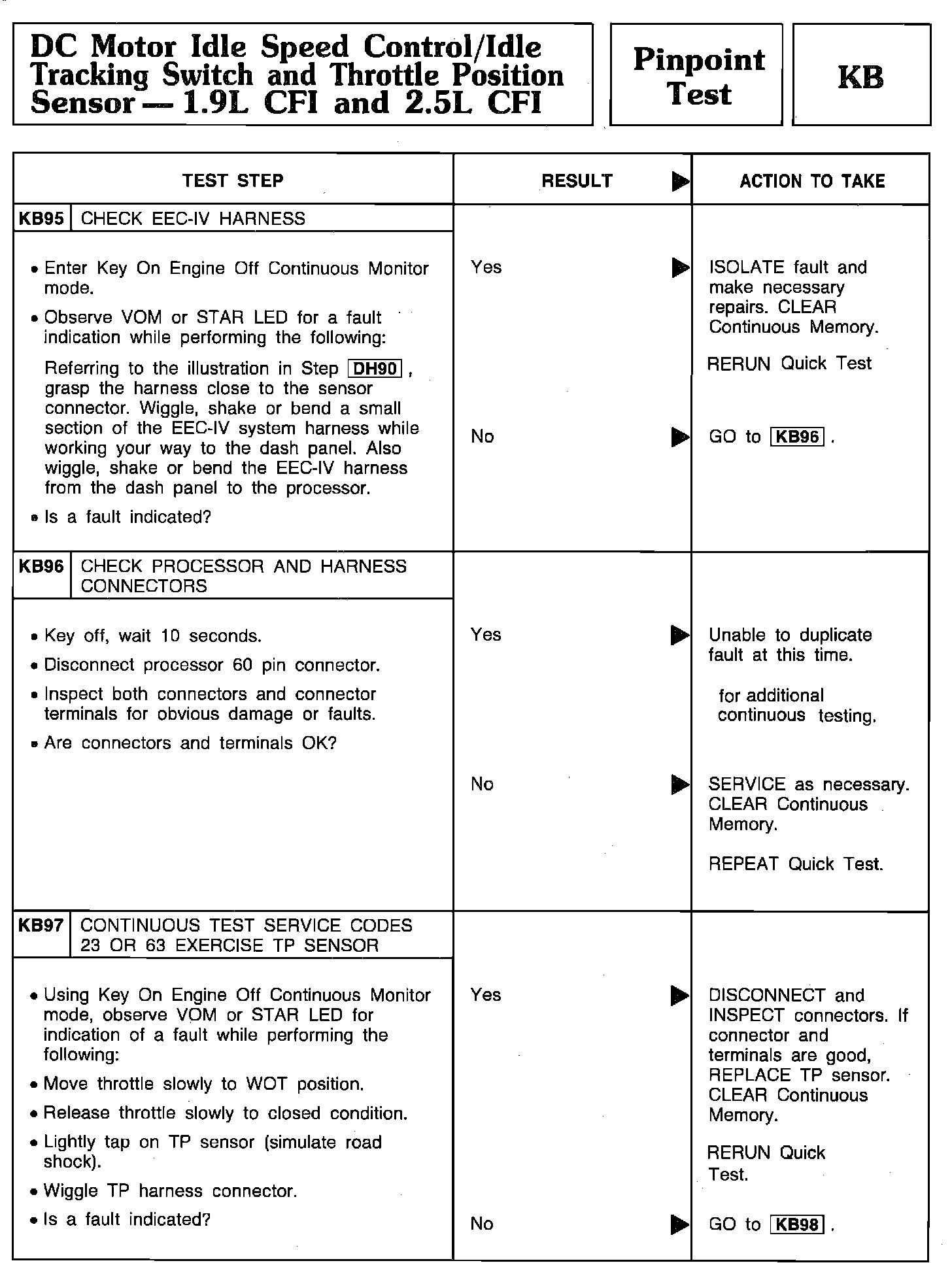

Pinpoint Test KB95 Thru KB97 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
