Wiper and Washer Systems: Locations
Fig. 1 Fuse Panel:
The
6.25 amp circuit breaker for the Front Wiper/Washer is located in the Fuse Panel.

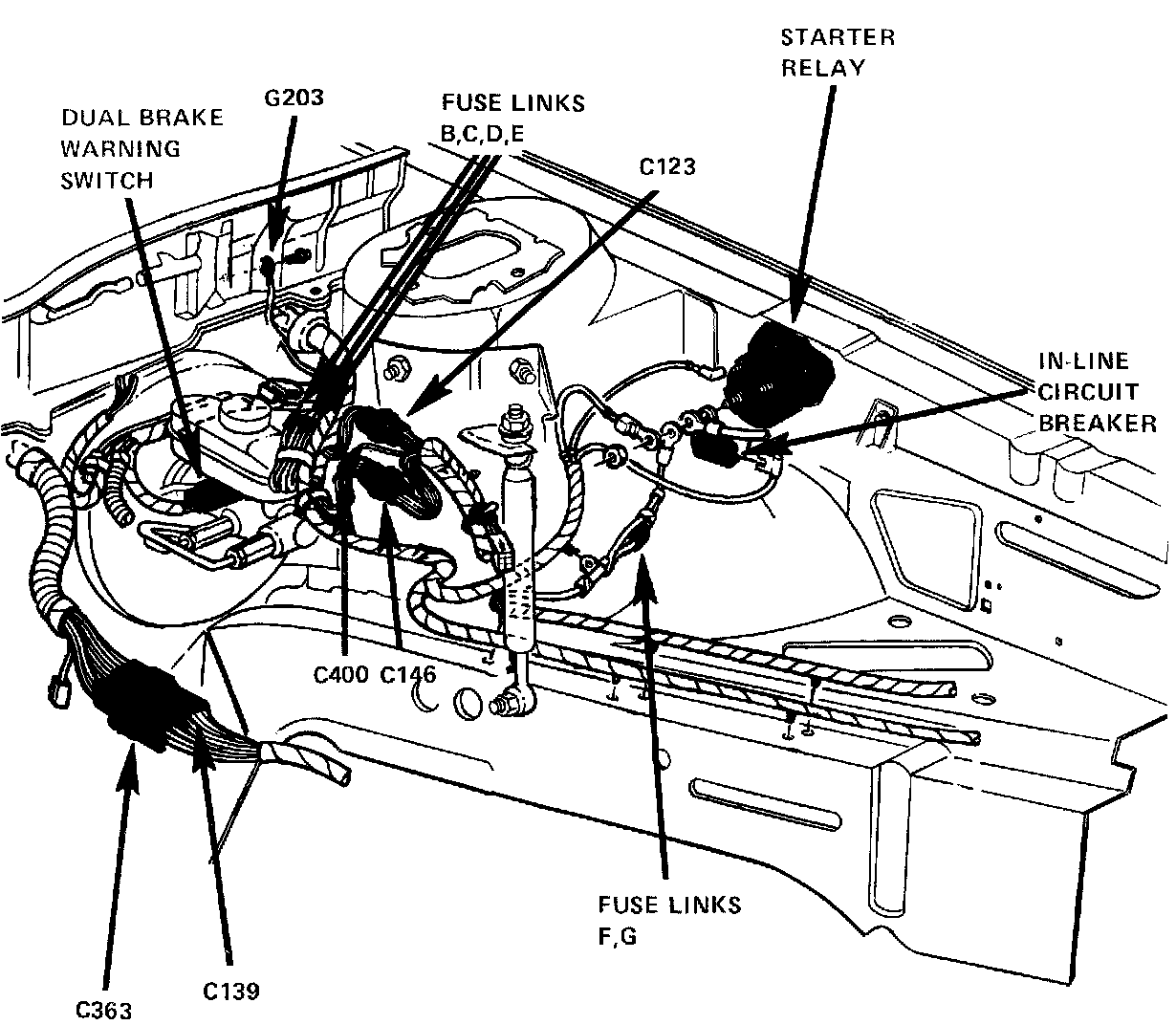

View 31-1 LH Side Of Engine Compartment:
The
4.5 amp In-Line circuit breaker for the Rear Wiper/Washer is located on the Left Hand side of the engine compartment, at the starter relay.
