Aerostar V6-183 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Timing
>>
Ignition Timing Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Ignition & Starter:
Electronic Engine Control:

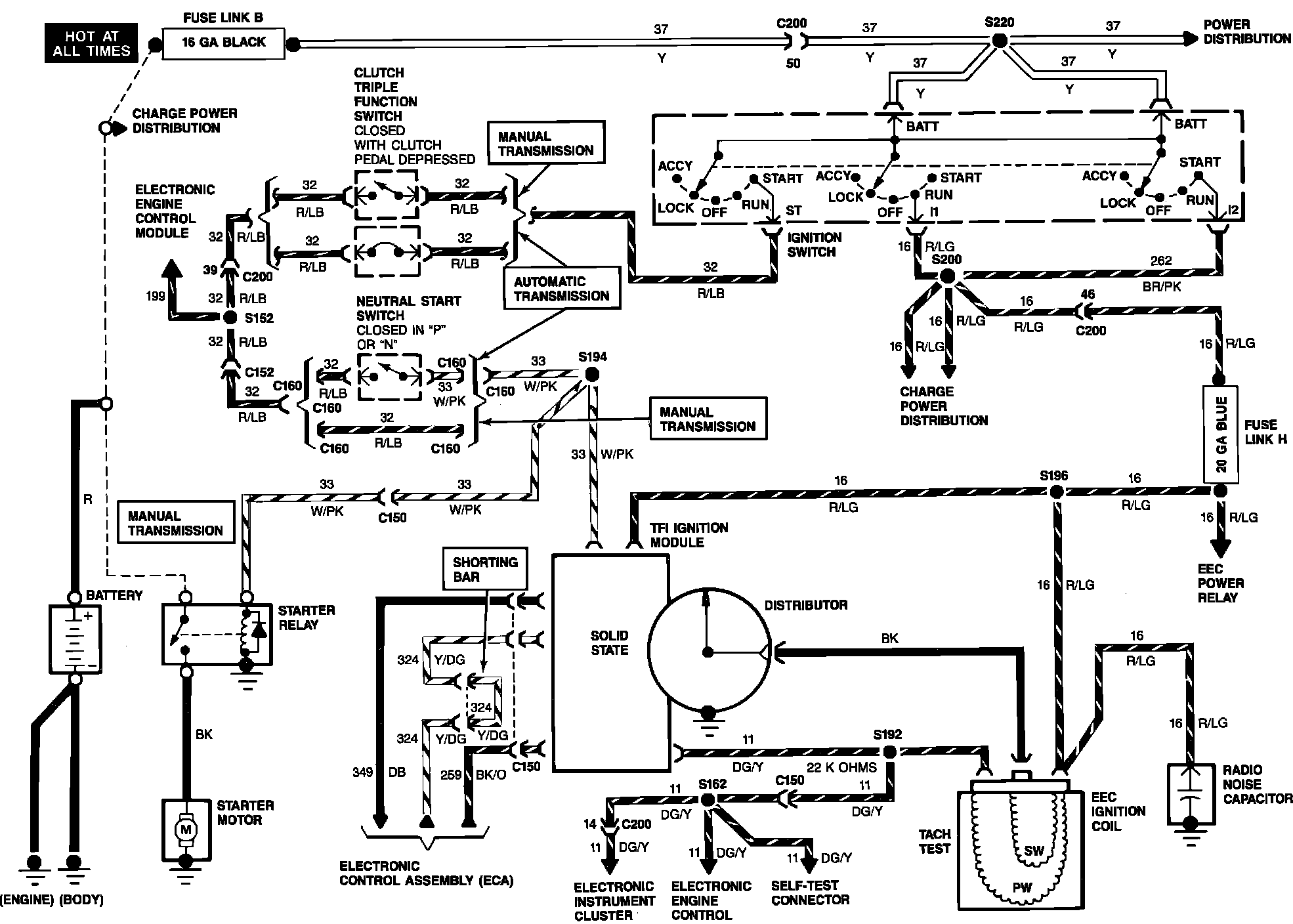

Circuit 324 Y/LG is the SPOUT signal, the first image shows the shorting bar.
For the remainder of the Computer and Control Systems wiring diagrams, refer to
Electrical Diagrams
