Lock Cylinder Functional

NOTE: The following procedure pertains to vehicles that have functional lock cylinders. Ignition keys are available for these vehicles, or the ignition key numbers are known and the proper key can be made.

Removal
1. Disconnect the battery ground cable.
2. Remove the trim shroud. Remove the electrical connector from the key warning switch.
3. Turn the lock cylinder to the RUN position.

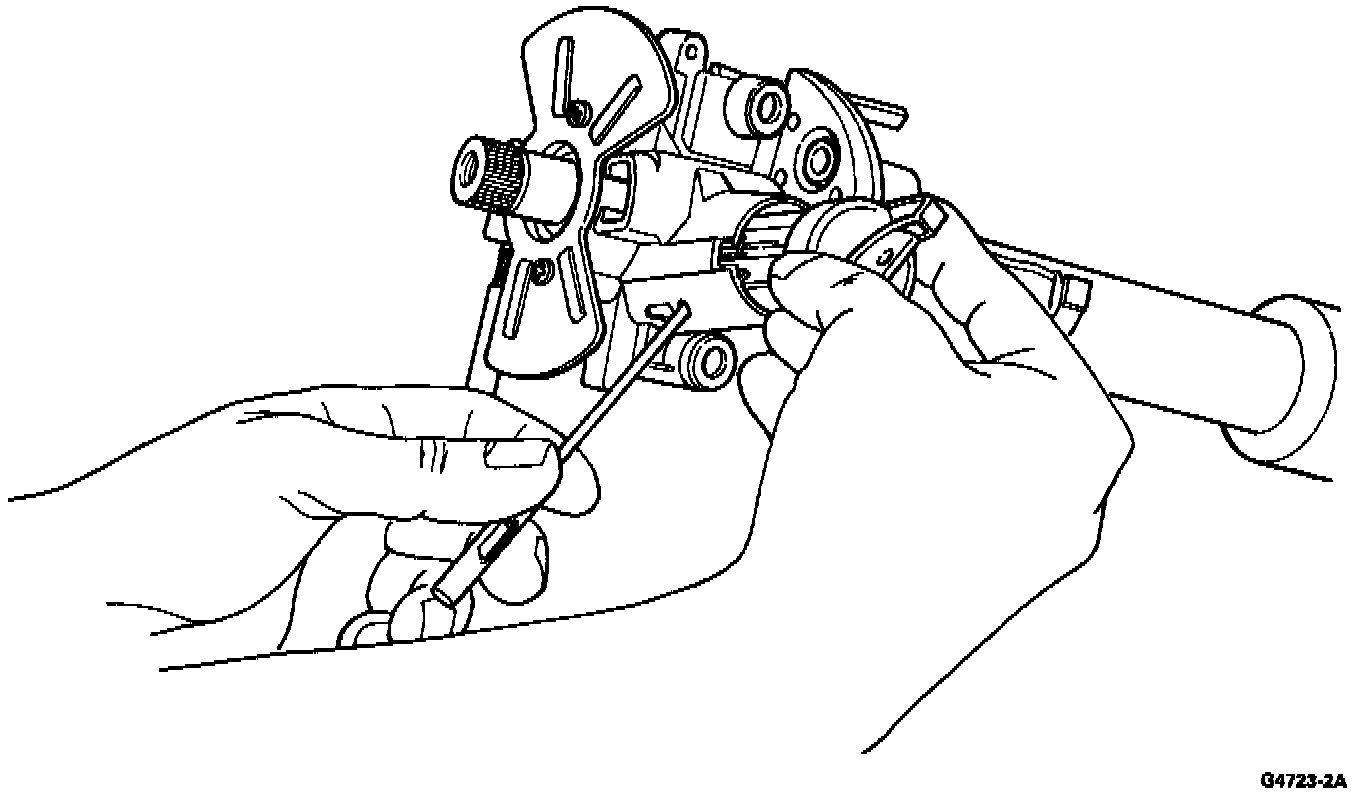

4. Place a 1/8 inch diameter pin or small drift punch in the hole located at 4 o'clock and 1-1/4 inch from the outer edge of the lock cylinder housing. Depress the retaining pin, and pull out the lock cylinder.

Installation
1. Prior to installation of the lock cylinder, lubricate the cylinder cavity, including the drive gear, with Lock Lubricant.
2. To install the lock cylinder, turn the lock cylinder to the RUN position, depress the retaining pin, and insert it into the lock cylinder housing. Assure that the cylinder is fully seated and aligned into the inter-locking washer before turning the key to the OFF position. This action will permit the cylinder retaining pin to extend into the hold in the lock cylinder housing.
3. Using the ignition key, ROTATE the lock cylinder to ensure correct mechanical operation in all positions. Install the electrical connector onto the key warning switch.
4. Connect the battery ground cable.
5. Check for proper ignition functions and verify that the column is locked in the LOCK position.
6. Install the trim shrouds.
