Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Bronco Full Size V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Timer Unit
Timer Unit

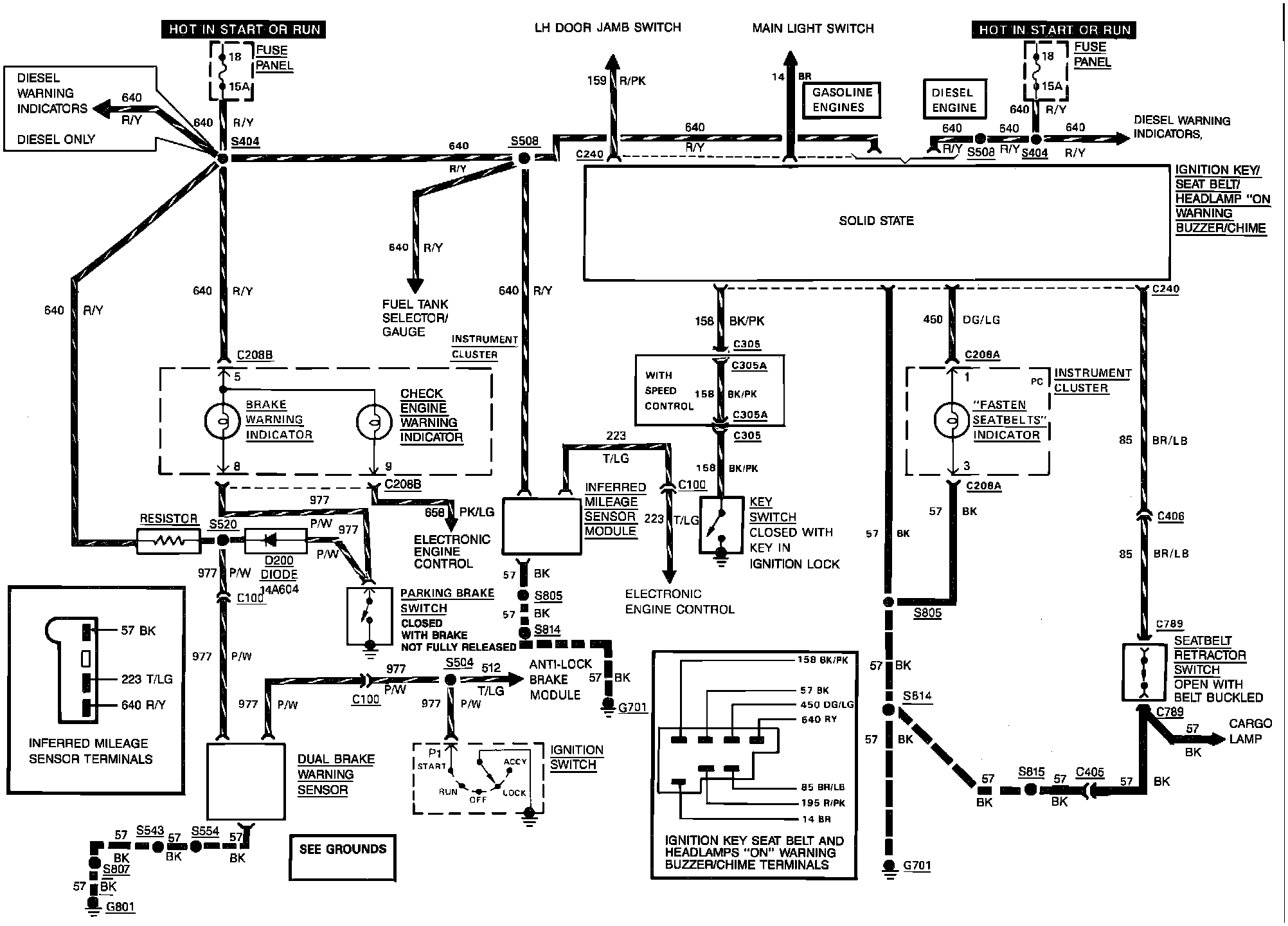

Warning Indicator - Brake, Ignition & Seatbelt:
